Steps
Procedure

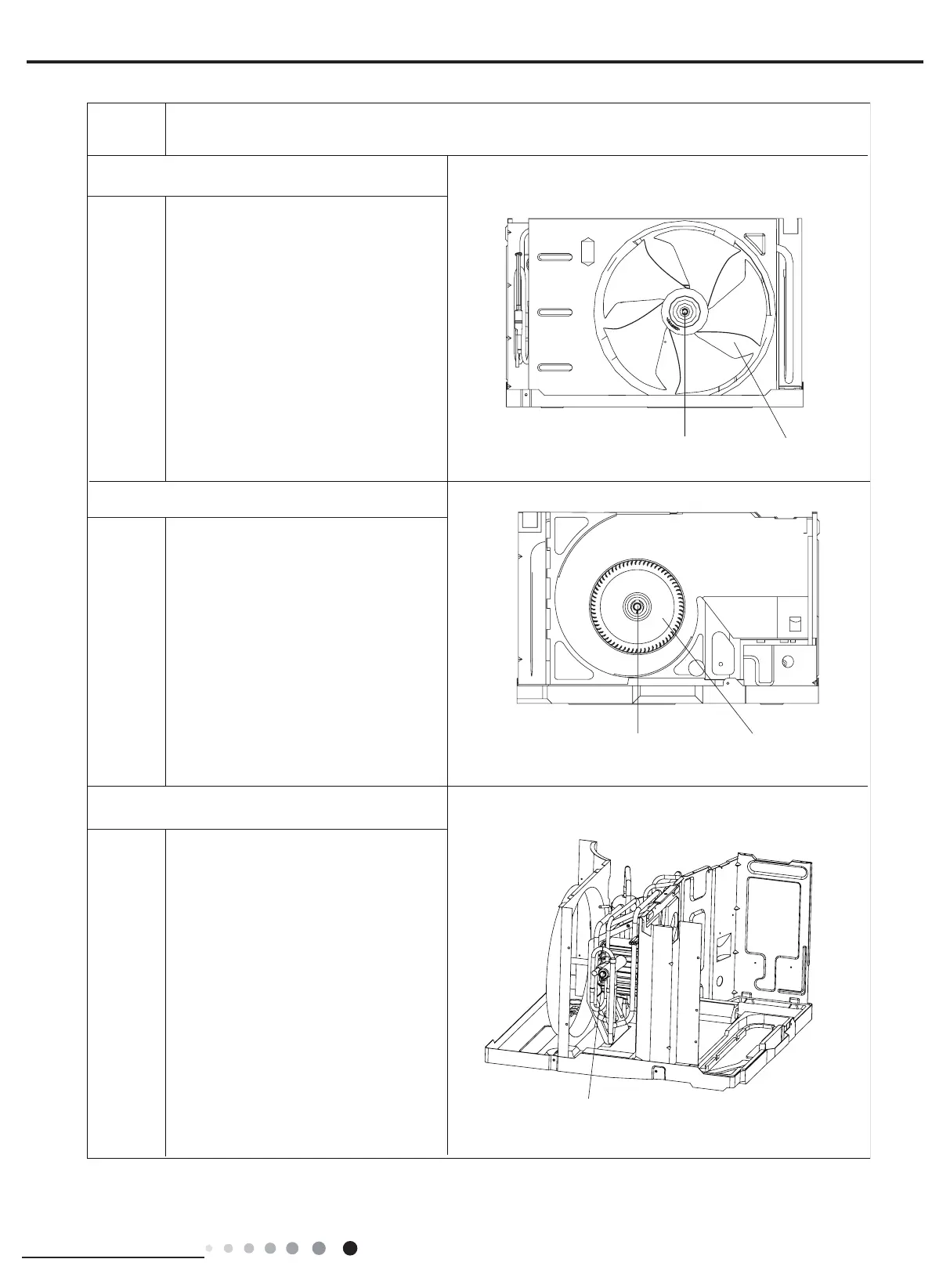

8.Remove axial flow fan blade
9.Remove centrifugal fan blade
10.Remove 4-way valve assembly
Remove nut fixing axial flow fan blade
and the washer. Then remove axial
flow fan blade.
Remove nut fixing centrifugal fan
blade and then remove centrifugal fan
blade.
Unsolder pipe of 4-way valve. Then
remove 4-way valve assembly.
nut
axial flow fan blade
nut
centrifugal fan blade
4-way valve assembly
