Lennox LRP14G User Manual

Page 3
14.32
4.20
3.76
6.20
17.07
18.19 18.19
16.06
6.20
3.62
4.06
36.20
12.14
30.19
3.87
POWER ENTRY
1-1/8 DIA. KNOCKOUT
LOW VOLTAGE ENTRY
7/8 DIA. KNOCKOUT
GAS SUPPLY
44.89
21.63
13.21
TYPICAL DRAIN
LOCATION
CONDENSATE
DRAIN 3/4 NPT
5.75
3.55
4.12
TYPICAL
VENT HOOD
SIDE VIEWS
TOP VIEW
POWER ENTRY
GAS ENTRY
RETURN
AIR
2.11
19.49
2.39
2.33
11.49
16.07
18.52
6.94
3.25
10.06
19.49
SUPPLY
AIR
25.81
26.56
28.68
11.49
2.33
47.66
56.13

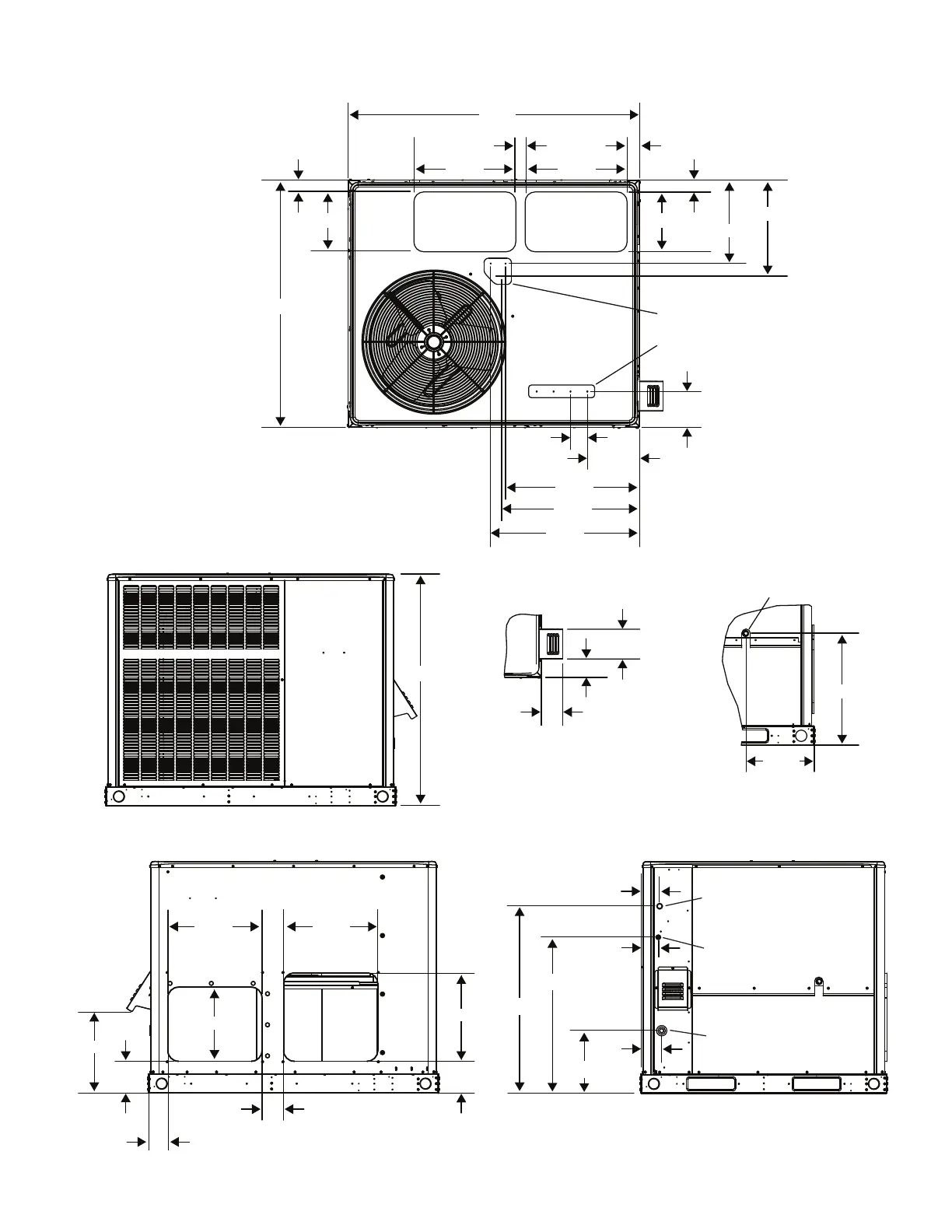

Unit Dimensions - Large Base Gas/Electric

Lennox LRP14G Specifications

General

Brand	Lennox
Model	LRP14G
Category	Heat Pump
Language	English
