Installation - Operation - Maintenance manual (IOM) • AIR COOLED CHILLERS & SPLIT UNITS - 1106-E • 16 •
CONDENSING UNITS

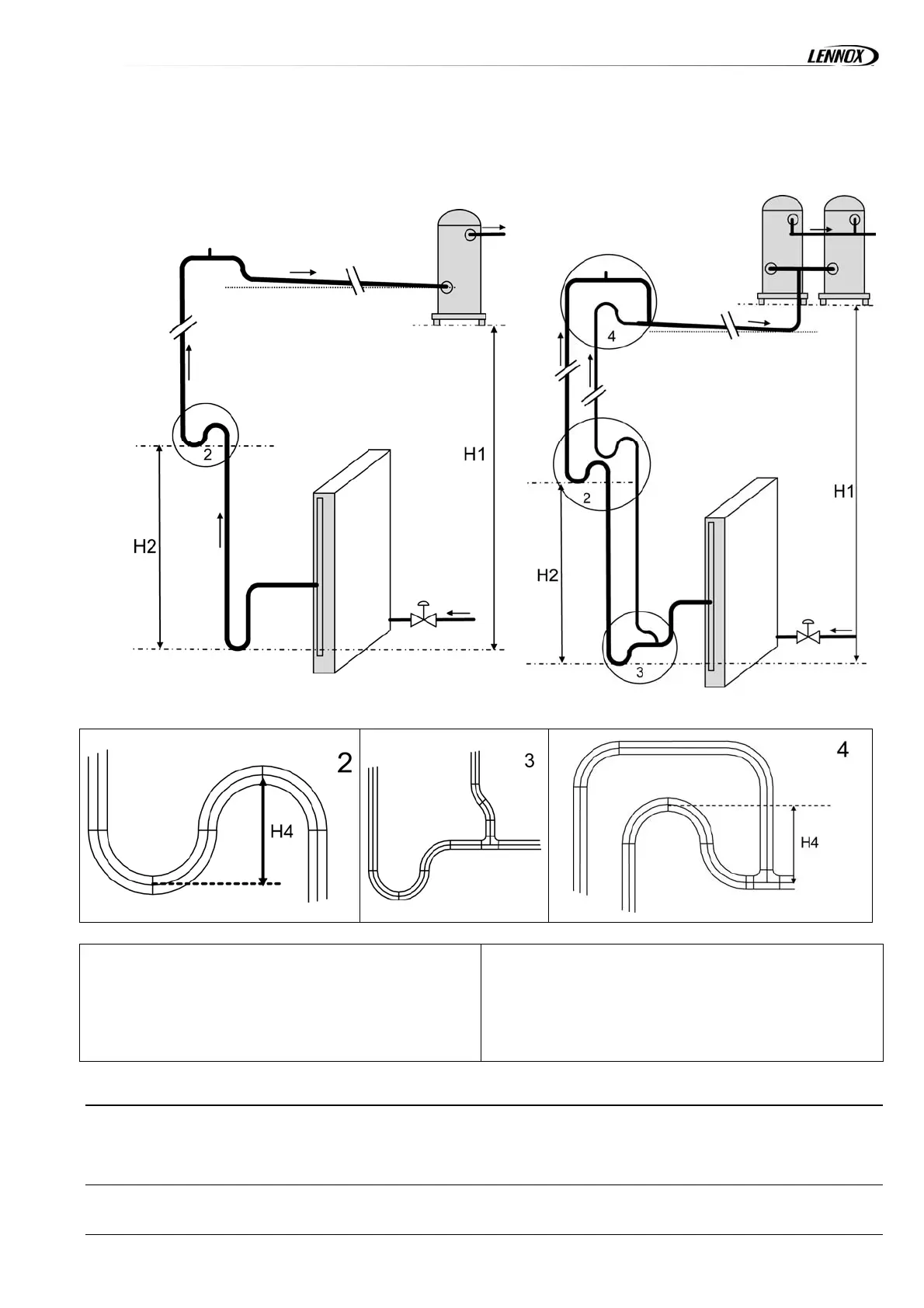

Condensing unit
without capacity control
Condensing unit
with capacity control
Min 0,25%
gradient
H1 :
15 m. maxi
H2 :
5 m. maxi
H4 :
0,15 m. maxi
1 -
Lower trap with single tube
2 -
Clode coupled trap
3 -
Lower trap with double tubes
4 -
Higher trap with double tubes
If receiver option : PED declaration class 3
If no receiver option : PED declaration class 1
Min 0,25% gradient
Min 0,25% gradient
