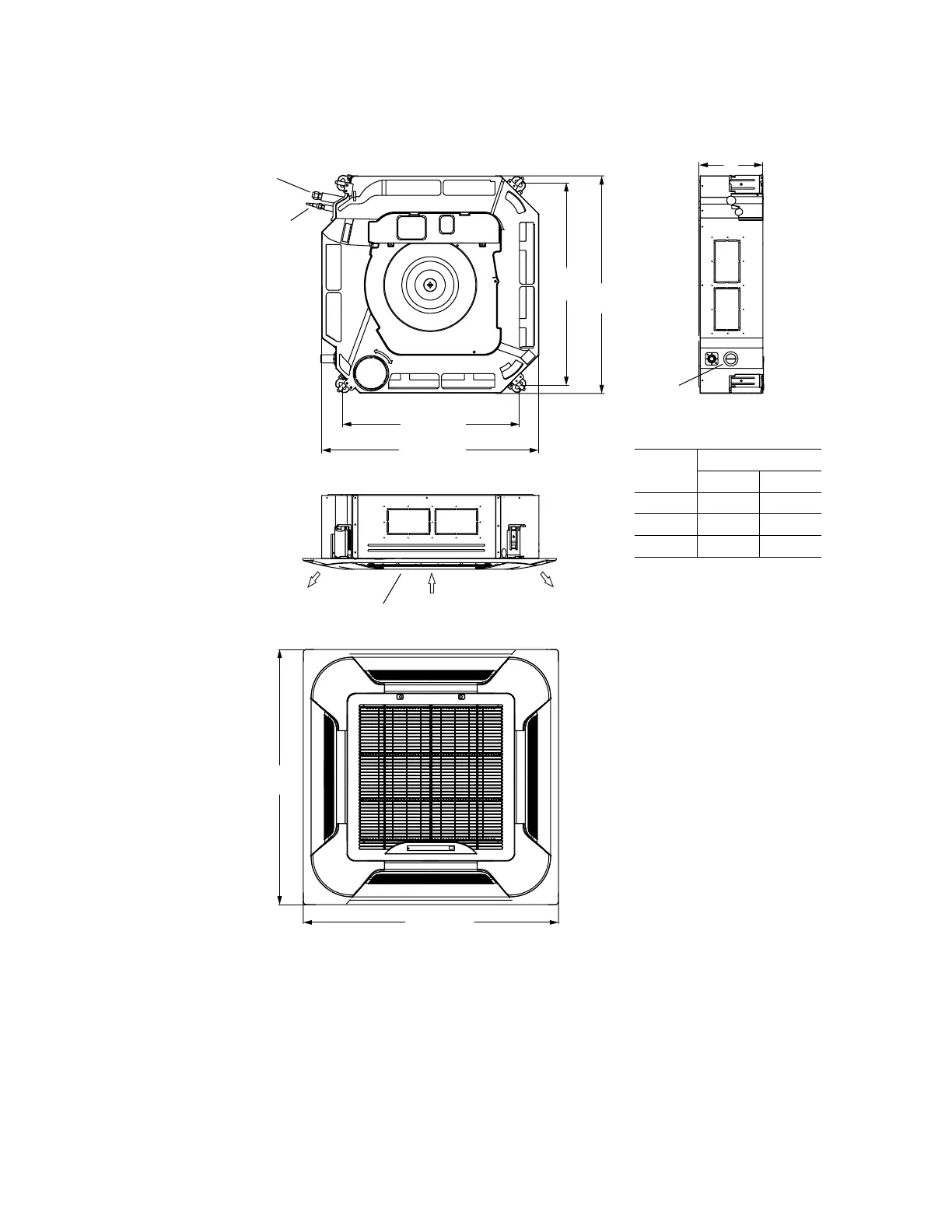

2.5. M33A and M33B Indoor Unit Dimensions
M33A024S4, M33A036S4, M33A048S4 and M33B048S4
BOTTOM VIEW (Body)
RIGHT SIDE VIEW
DRAIN
CONNECTION
LIQUID
PIPE
GAS
PIPE
26-3/4 (679)
30-3/4
(781)
A
33-1/8 (841)
33-1/8
(841)
SIDE VIEW
37-3/8 (949)
37-3/8
(949)
BOTTOM VIEW (Panel)
DIFFUSER
PANEL
AIR
OUTLET
AIR
OUTLET
AIR
INLET
Size
A
in. mm
024 8-1/8 206
036 9-5/8 244
048 11-1/4 286
