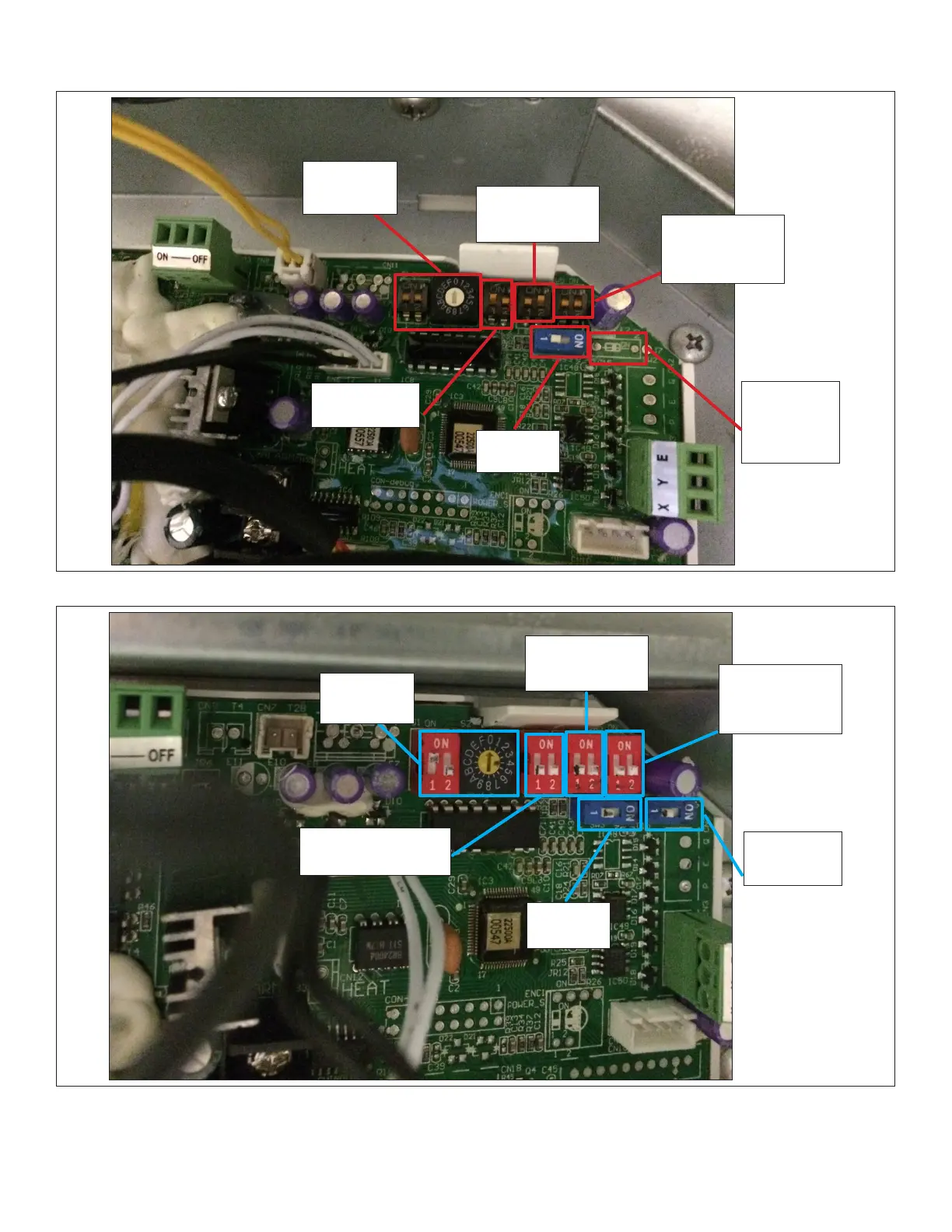

1.7. M22A and M33C Indoor Unit Control Board Switches Location
SW2
Indoor Fan
Speed
Adjustment
(future version)
SW3
Auto Restart
Function
SW1
Pre-Heat Function
Adjustment
SW6
Heating Temperature
Compensation
Adjustment
S1+S2
CCM Address
(VRF only)
SW5
For Mode Conict
Setting
(24k and smaller
units only)
Figure 1. M22A Main Control Switches
SW2
Indoor Fan
Speed
Adjustment
SW3
Auto Restart
Function
SW5
For Mode Conict
Setting
(24k and smaller
units only)
SW1
Pre-Heat Function
Adjustment
SW6
Heating Temperature
Compensation
Adjustment
S1+S2
CCM Address
(VRF only)
Figure 2. M33C Main Control Switches
