8. Master Valves (3- to 5-Zone Outdoor Units)
• 3-zone,4-zoneand5-zone(not2-zone)
multi-zoneunitshaveamastervalveoneach
refrigerant line.
• Themastervalvecontrolsrefrigeranttoallof
thezone-supplyvalves.
• Openthemastervalvespriortoopeningthe
zone-supplyvalves.

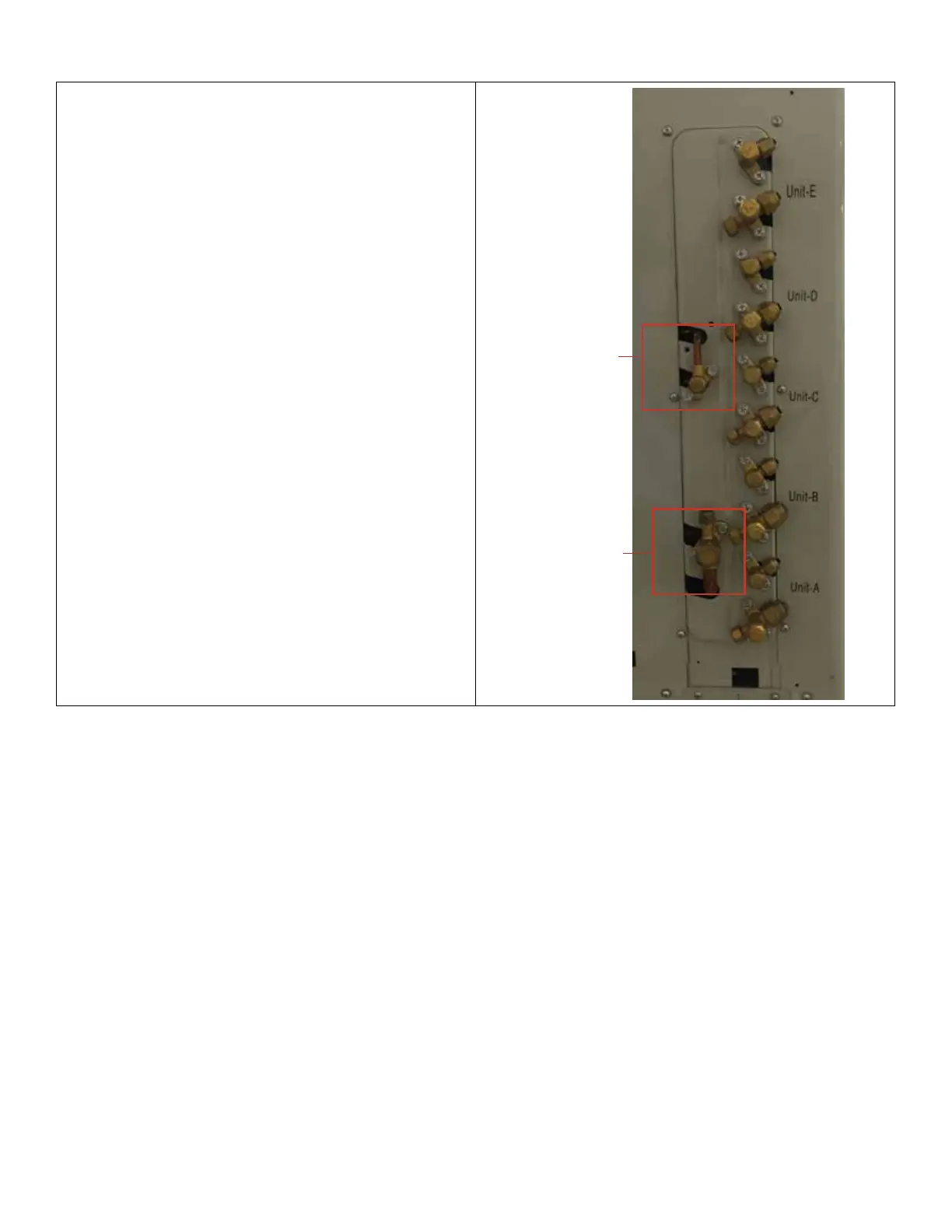

Liquid Line
Master Valve
Vapor Line
Master Valve
