Parts Identification
Control Box Cover
Access Door
MERV 16 Filter
Control Box
Assembly
UVA Lamps
Reflectors
Metal Insert
Ballast
Surge Protector
Lamp
Securing
Clips
Cabinet
Electrical
Socket
Lamp Socket

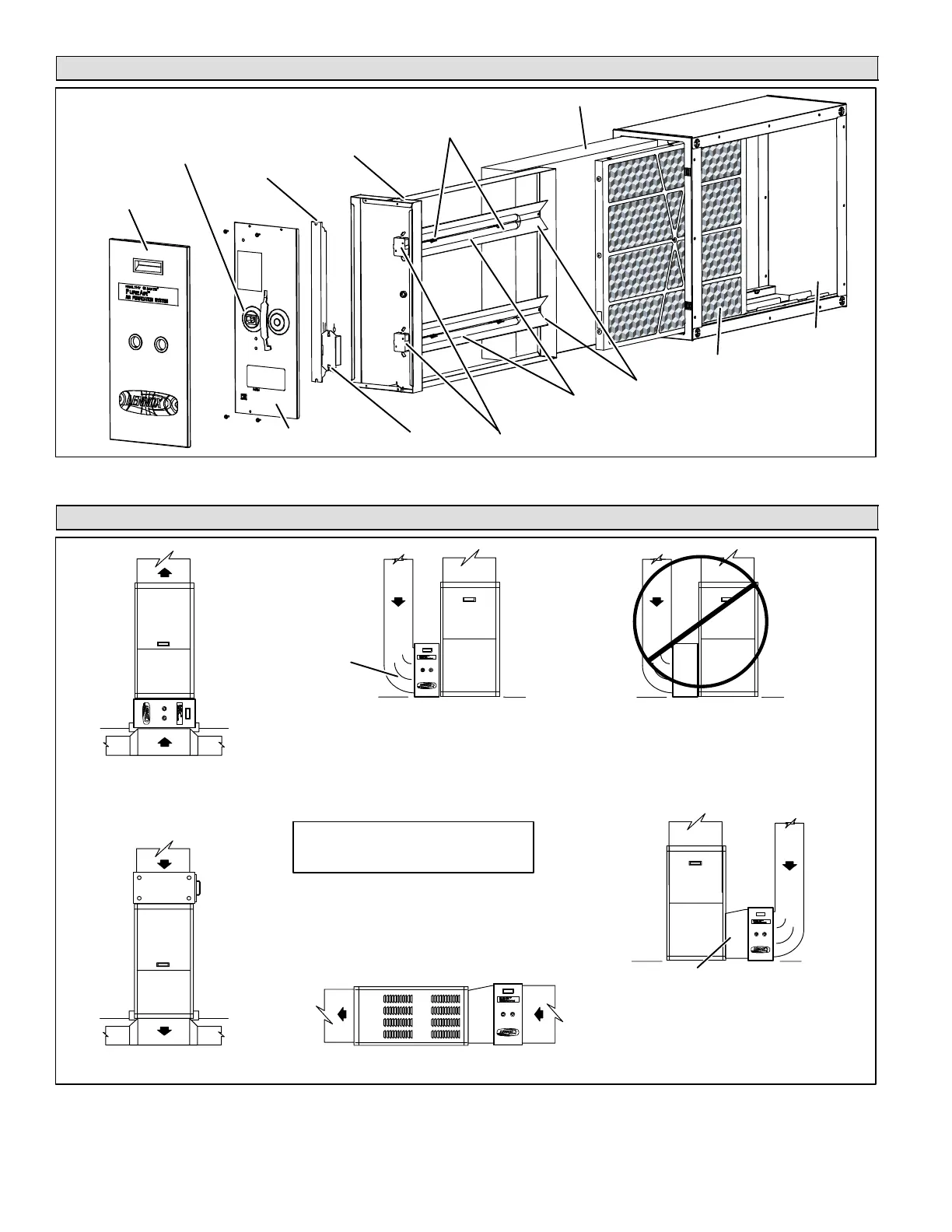

Figure 1. PCO Parts Identification
Installation Examples
The PCO must not be installed in
a confined space where service
clearance would be restricted.
A metal transition should be used.
The transition must be planned for
each job. Reduction should not be
more than 4 inches per linear foot,
approximately 20 angular degrees.
Note − At sharp turns,
install turning vanes
before the PCO.
Upflow
(Side Installation)
Upflow
(Side installation with PCO access panel pointed
upward and lamps suspended vertically −− NOT
RECOMMENDED) Contact the Technical Support
Department at 1.800.953.6669 for additional infor-
mation.
Upflow
Downflow
Horizontal
Typical Transition
Figure 2. Installation Examples
