XP-6514 4/09 23Section 1 Installation
4
GM57969
1. Thermostat
2. Bulkhead opening for carburetor heater access
3. Carburetor heater cord with thermostat
4. 120 VAC receptacles for carburetor heater and battery
charger
3
2
1

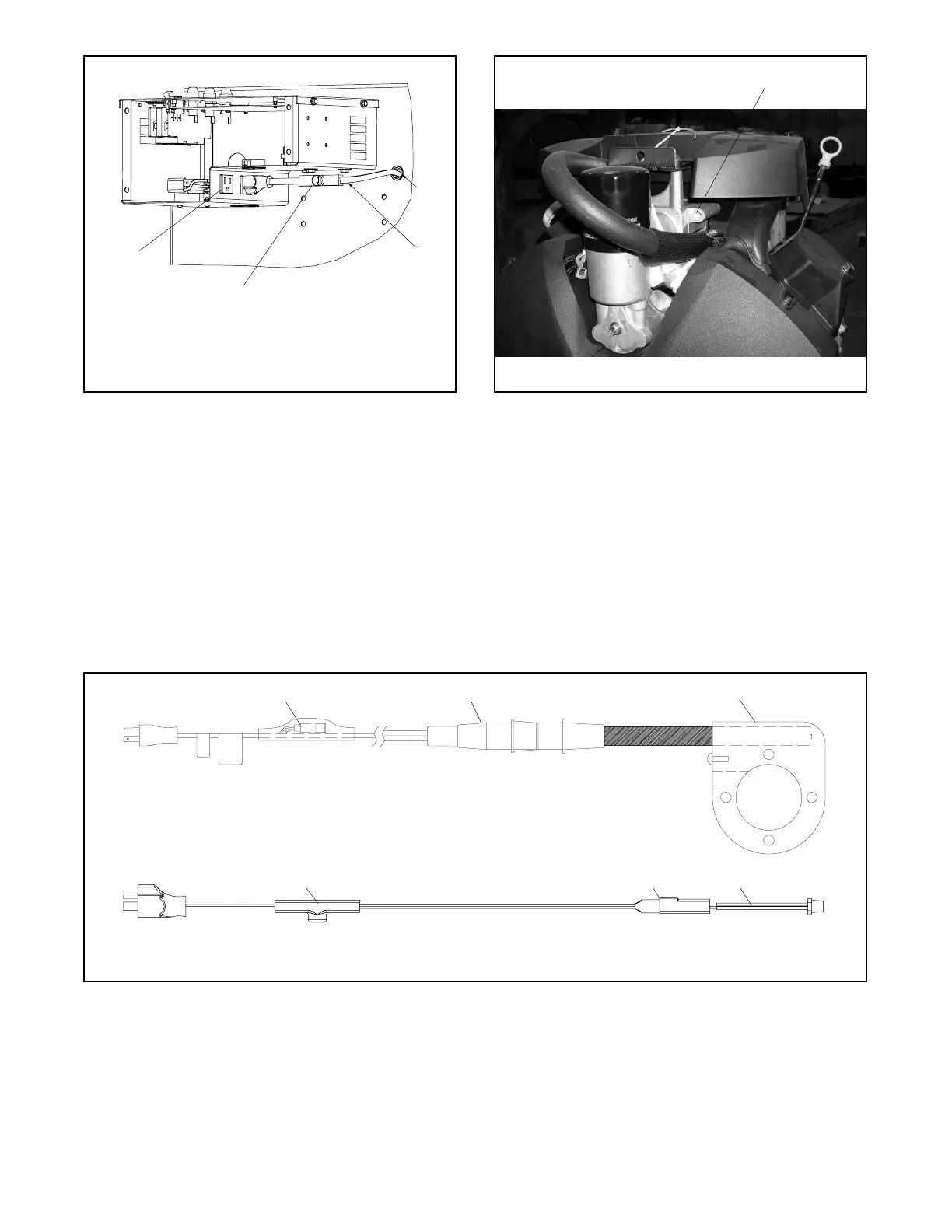

Figure 1-27 RGEN17/18 Carburetor Heater Location
(air intake side of generator set)
1
tp6514
1. Carburetor heater location
Figure 1-28 RGEN17/18 Carburetor Heater Location
on Engine (bulkhead removed to show
heater location)
The heater thermostat is installed in the cord.
Figure 1-29 shows the location of the thermostat on the
power cord.
Note: Do not place the heater thermostat inside the
generator set engine compartment. The
thermostat must be exposed to the ambient air.
Thermostat will shut off power to the heater when
ambient temperature reaches approximately
16_C (60_F).
GM19463
1
1. Thermostat 2. Connector 3. Heater
2 3
RGEN12 Carburetor Heater
1 3
RGEN17/18 Carburetor Heater
GM57968
2
Figure 1-29 Carburetor Heaters
