Introduction
See Figure 1 and Figure 2 for generator set component
locations.
ADV-7466-
1. Muffler
2. Oil check
3. Oil fill
4. Air cleaner
5. Controller user interface
6. Generator set master switch (RUN-OFF/RESET-AUTO)
7. Load circuit breaker
8. Fuses
9. RS-232 connector (for application program updates)
10. Field-connection terminal block location
11. Spark plug locations (both sides)
12. Oil drain hose
13. Oil drain valve
14. Oil filter
15. Exhaust
16. Equipment ground
17. Battery charger
18. DSAI lead location
19. Fuel block
20. Gas regulator assembly
21. Fuel solenoid valve
22. Fuel inlet
23. Air intake
24. Engine starting battery location (battery purchased separately)
7
6
5
8
9
Control detail
See control detail
1234
14 13
24
7
6
16
17 20
21
22
23
15
11
10
18 19
12

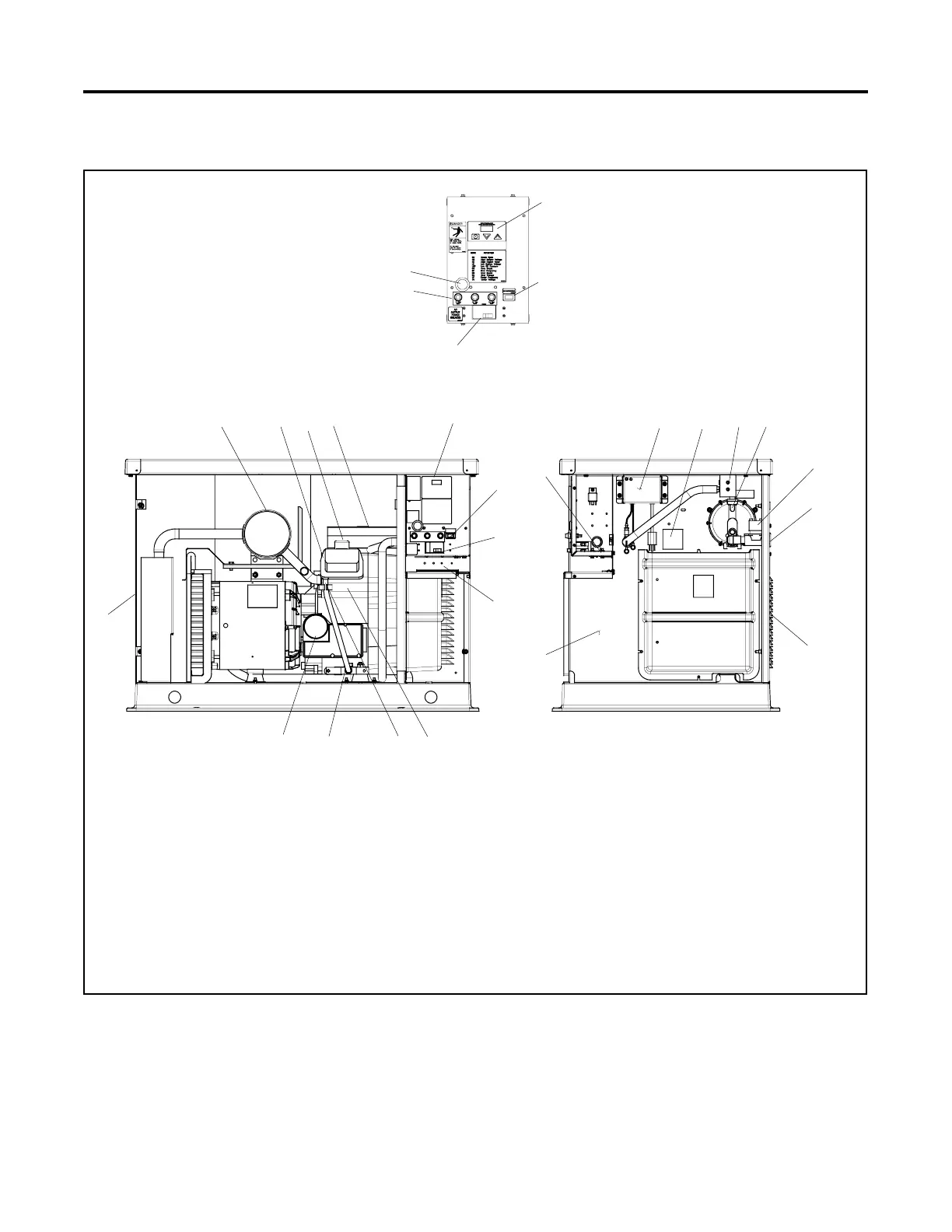

Figure 1 Generator Set Component Locations, RGEN12
