IOM / ROOF-TOP FLEXY
™
Series - Page 9
TR

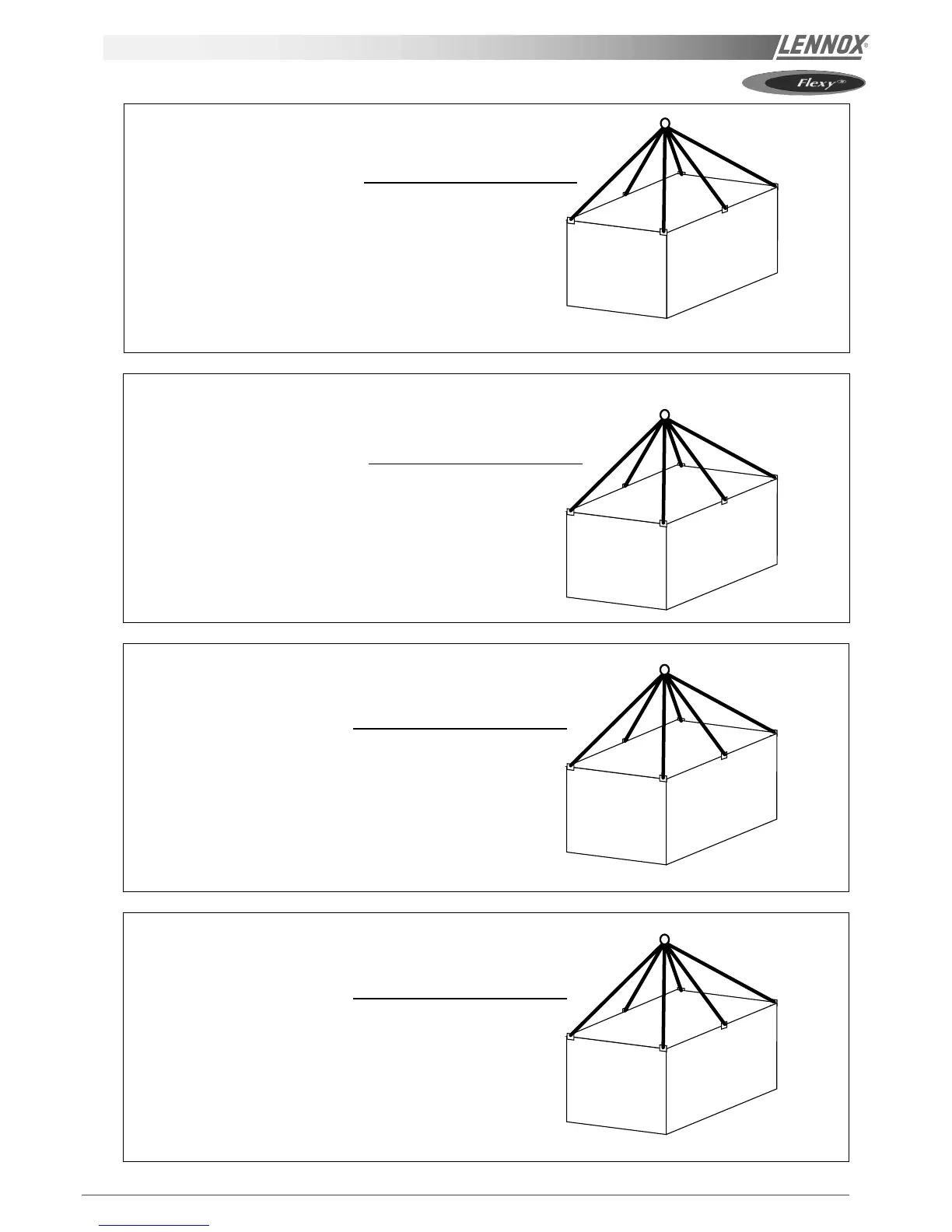

ANSPORT - HANDLING
FX 25 & 30
Sling length = 3000 mm
FX 35 - 40 - 55
Sling length = 3700 mm
Sling length = 3900 mm
FX 70 - 85 - 100
Sling length = 4300 mm
FX 110 - 140 - 170
9
11
