Page 38 - IOM / ROOF-TOP FLEXY™ Series

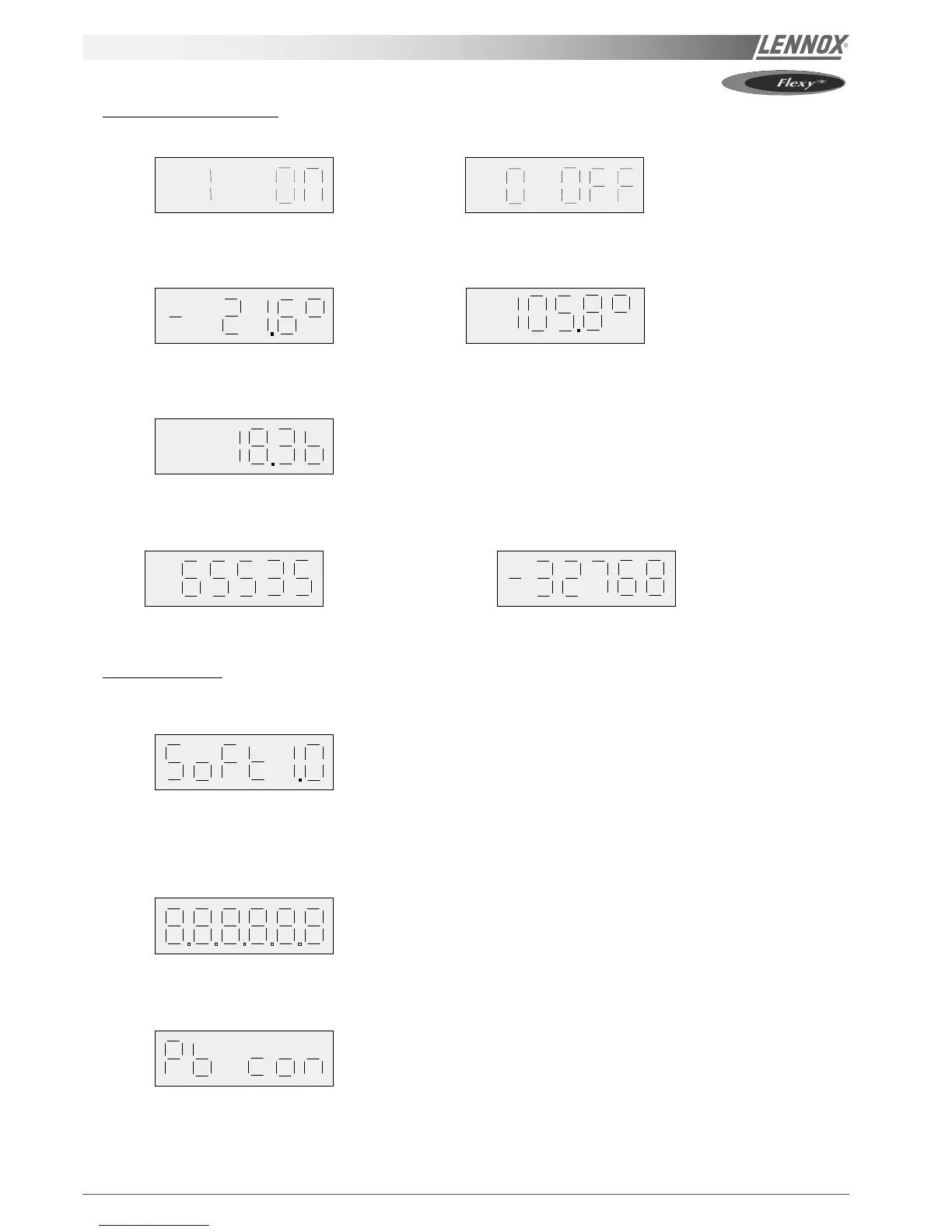

Variable or setpoint value
Digital Values
1 <--> ON 0 <--> OFF
Temperatures
Temperatures are displayed in °C, to an accuracy of 0.1 °C
<--> -21.6 °C <--> + 105.8 °C
Pressures
Pressure is given in bars, to an accuracy of 0.1 bar.
<--> 18.3 bars
Other analog values
Valeurs displayed Values non
displayed
Specific Displays
Software Version
When the unit is powered up, the KP02 software version number is displayed.
<--> version 1.0 (for example)
Display Test
The display can only be tested for correct operation when the unit is powered up and by pressing on the 3 keys "A", "M"
and "-" simultaneously. If the display is working correctly, the following will be displayed :
All digits are properly displayed.
Communication Error
If there is no communication between the KP02 display unit and the CPU card, the following message is displayed :
<--> "Communication problem"
USING THE KP02 MAINTENANCE CONTROL DISPLAY
