Lennox XC15 Series User Manual

Page 8
505095M 1/3/06

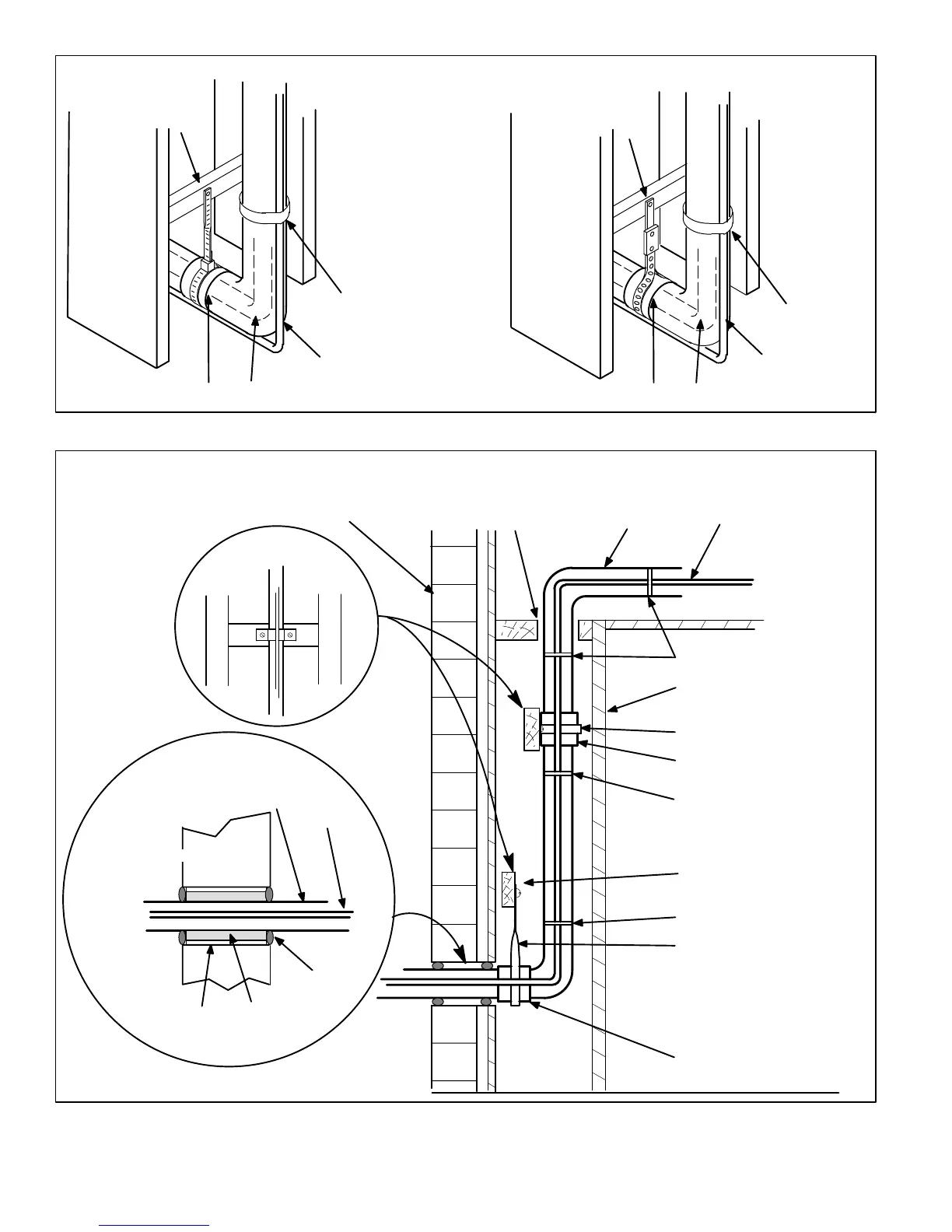

Refrigerant Line Sets: Transition From Vertical To Horizontal
Strap Liquid Line
To Vapor Line
METAL
SLEEVE
ANCHORED
HEAVY NYLON
WIRE TIE
AUTOMOTIVE
MUFFLER-TYPE
HANGER
WALL
STUD
Figure 11
VAPOR LINE − WRAPPED
IN ARMAFLEX
Strap Liquid
Line To Va-
por Line
WALL
STUD
LIQUID
LINE
METAL
SLEEVE
VAPOR LINE − WRAPPED
IN ARMAFLEX
LIQUID
LINE
Refrigerant Line Sets: Installing Vertical Runs (new construction shown)
NOTE − Similar installation practices should be used if line set is to be installed on exterior of outside wall.
PVC PIPE
FIBERGLASS
INSULATION
CAULK
OUTSIDE WALL
VAPOR LINE WRAPPED
WITH ARMAFLEX
LIQUID
LINE
IMPORTANT!
Refrigerant
lines must
not contact
structure.
OUTSIDE WALL
LIQUID LINEVAPOR LINE
IMPORTANT - Refrigerant
lines must not contact wall.
WOOD BLOCK
BETWEEN STUDS
STRAP
SLEEVE
WOOD BLOCK
STRAP
SLEEVE
WIRE TIE
WIRE TIE
WIRE TIE
Figure 12
INSIDE WALL
