XP17

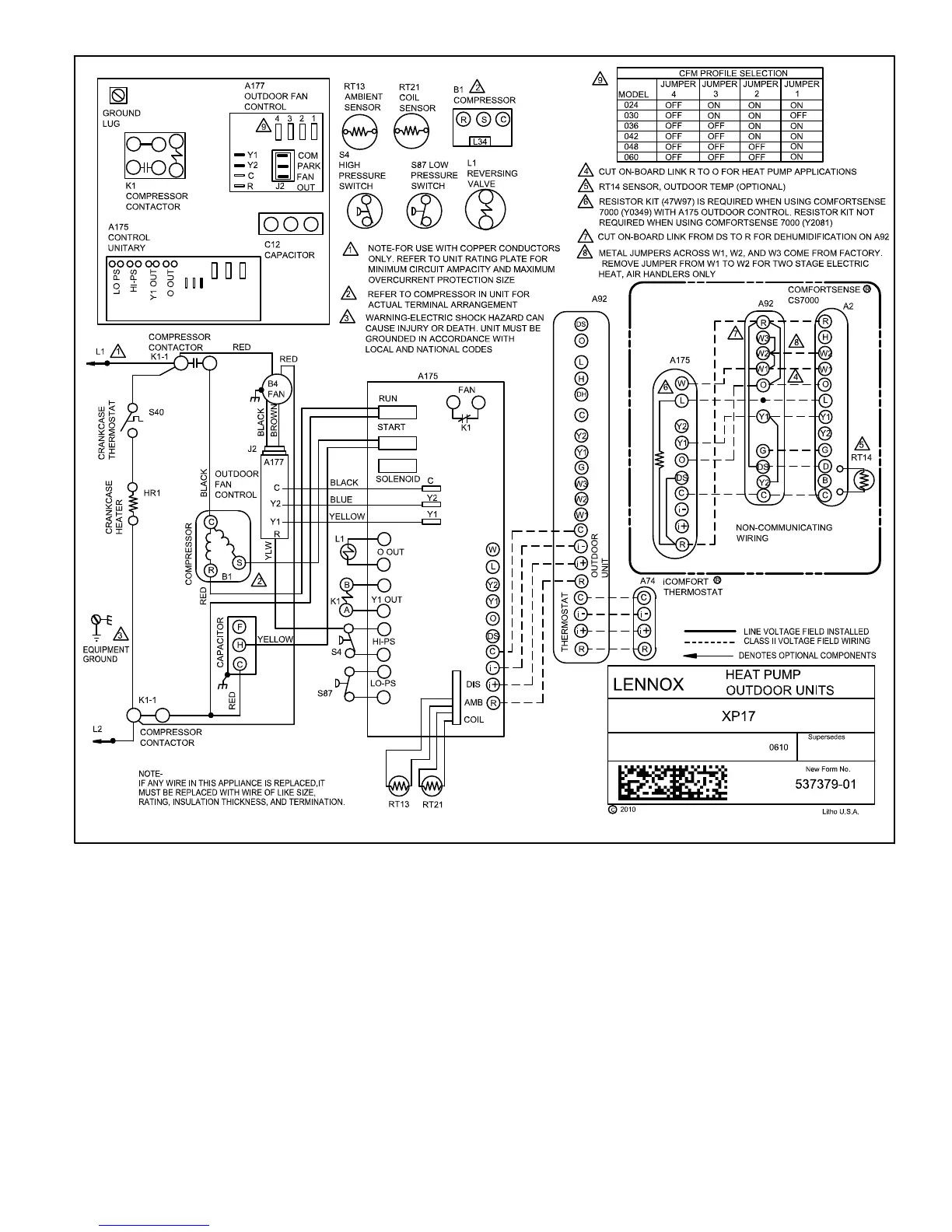

Figure 20. Typical XP17 Wiring (Communicating, No Surge Protection and A177 Fan Motor Control Wiring

Change) (XP17-XXX-230-02 through -05)
