Page 51
XP17
XC21 iComfort™ Outdoor Unit
Wiring Detail with Utility Load Shedding - Alternate Wiring Method
Outdoor Control Part Numbers
103369-01
103369-02
NOTE: This alternate wiring method is not applicable to early production XC17, XP17, XC21 and XP21 outdoor
units that used outdoor control 101796xx, 101797xx, 101798xx and 101799xx.
Utility Load Control Receiver
Contacts (N.C. contacts shown,
verify contact configuration)
Compressor
Contactor
Remove existing wire
to contactor coil.

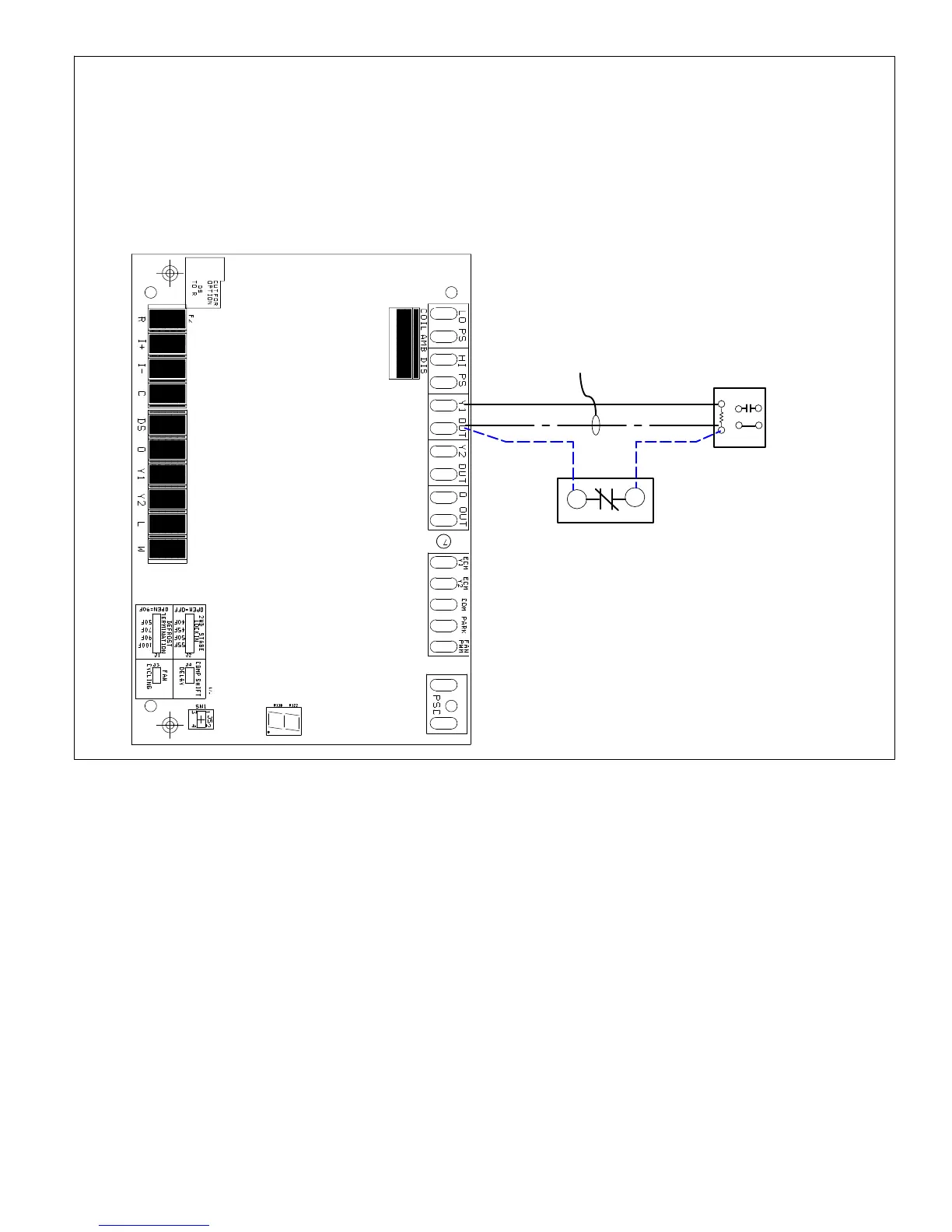

Figure 28. Non-Preferred Method - Outdoor Control- 103369-01 and 103369-02 Only)
To Next Page
