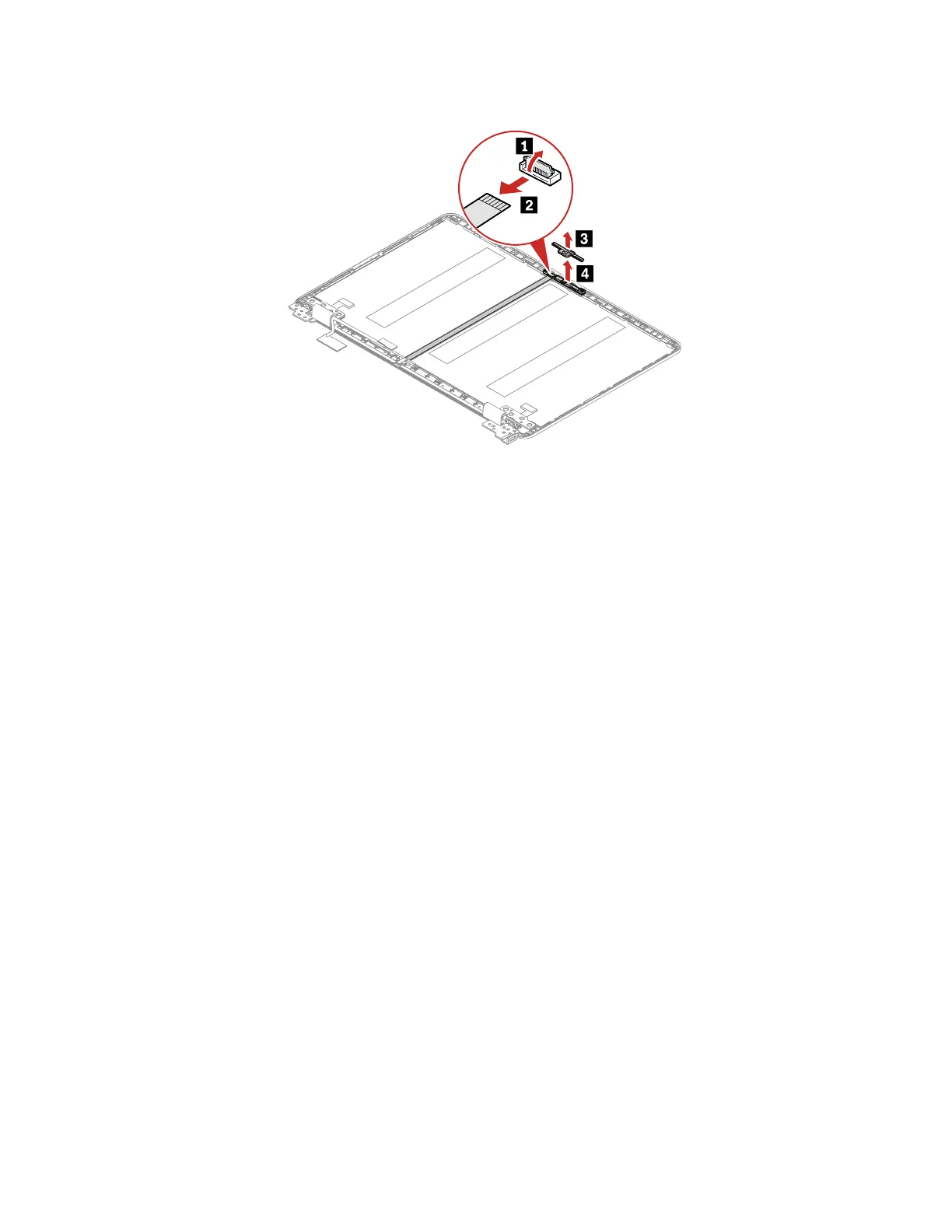

Removal steps of the camera module and camera Privacy Shutter
2020 Rear cover assembly
For access, remove these FRUs:
• “1150 LCD unit” on page 46
• “1060 LCD bezel” on page 48
• “1170 LCD panel and LCD elastic adhesive tapes” on page 49
• “1180 LCD hinges and caps” on page 51
• “1190 LCD and camera cable” on page 52
• “2010 Camera module and camera Privacy Shutter” on page 52
Chapter 5. Removing or replacing a FRU 53
