Step 3. Disconnect the EDP cable.

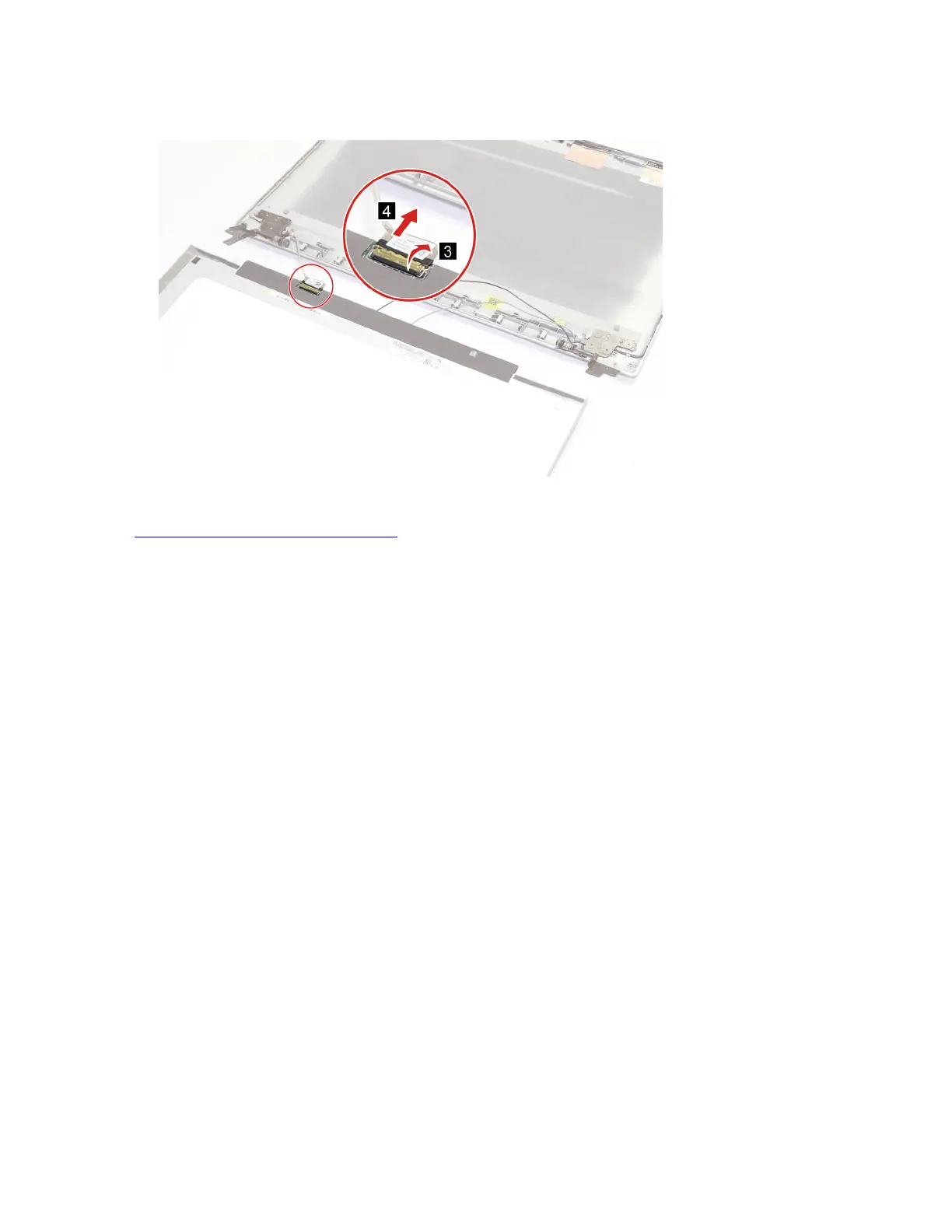

Figure 41. Disconnect the EDP cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
LCD panel for 14–inch and 15–inch models
EDP cable
For 17–inch models
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the upper case (with keyboard)” on page 46
“Remove the hinge cover” on page 49
“Remove the LCD bezel” on page 49
52
IdeaPad 3 (14", 05), IdeaPad 3 (15", 05), and IdeaPad 3 (17", 05) Hardware Maintenance Manual

Lenovo 15IIL05 Specifications

General

Operating System	Windows 10 Home
Processor	Intel Core i3-1005G1 / i5-1035G1 / i7-1065G7
Storage	Up to 512GB SSD
Display	15.6" FHD (1920x1080) IPS
Graphics	Intel UHD Graphics
Battery	35Wh
RAM	12GB DDR4
