Lenovo 16ACH6H User Manual

Removable tape
Remove the camera bracket and camera cable
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 45
“Remove the LCD bezel (with removable tape)” on page 48
“Remove the hinge cover” on page 48
“Remove the LCD panel” on page 49
Step 1. Remove two screws and then remove the camera bracket.

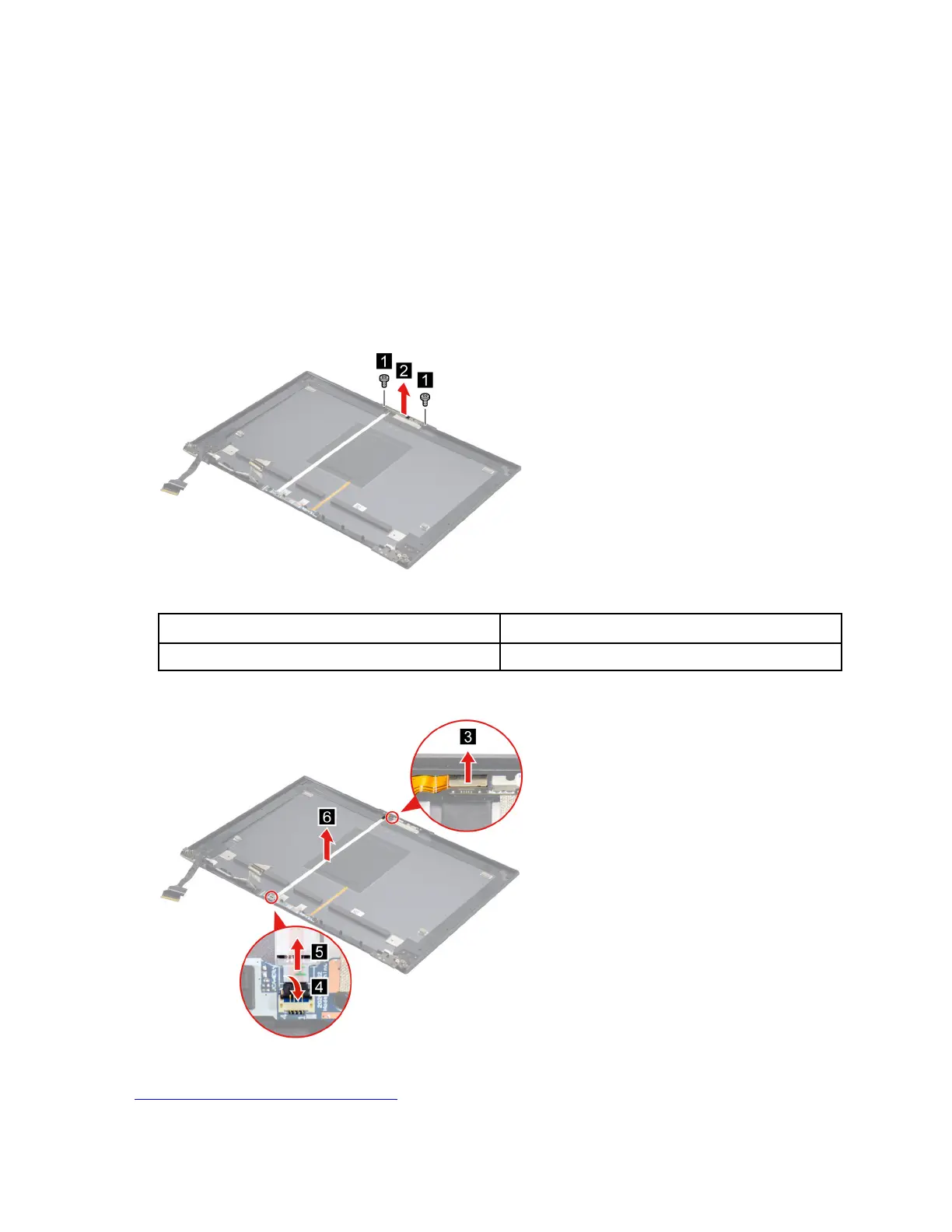

Figure 40. Remove two screws and then remove the camera bracket
Screw specifications Number of screws
M1.6 x L2.4 2
Step 2. Detach the camera cable connectors and then remove the camera cable.
Figure 41. Detach the camera cable connectors and then remove the camera cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
52
Hardware Maintenance Manual
