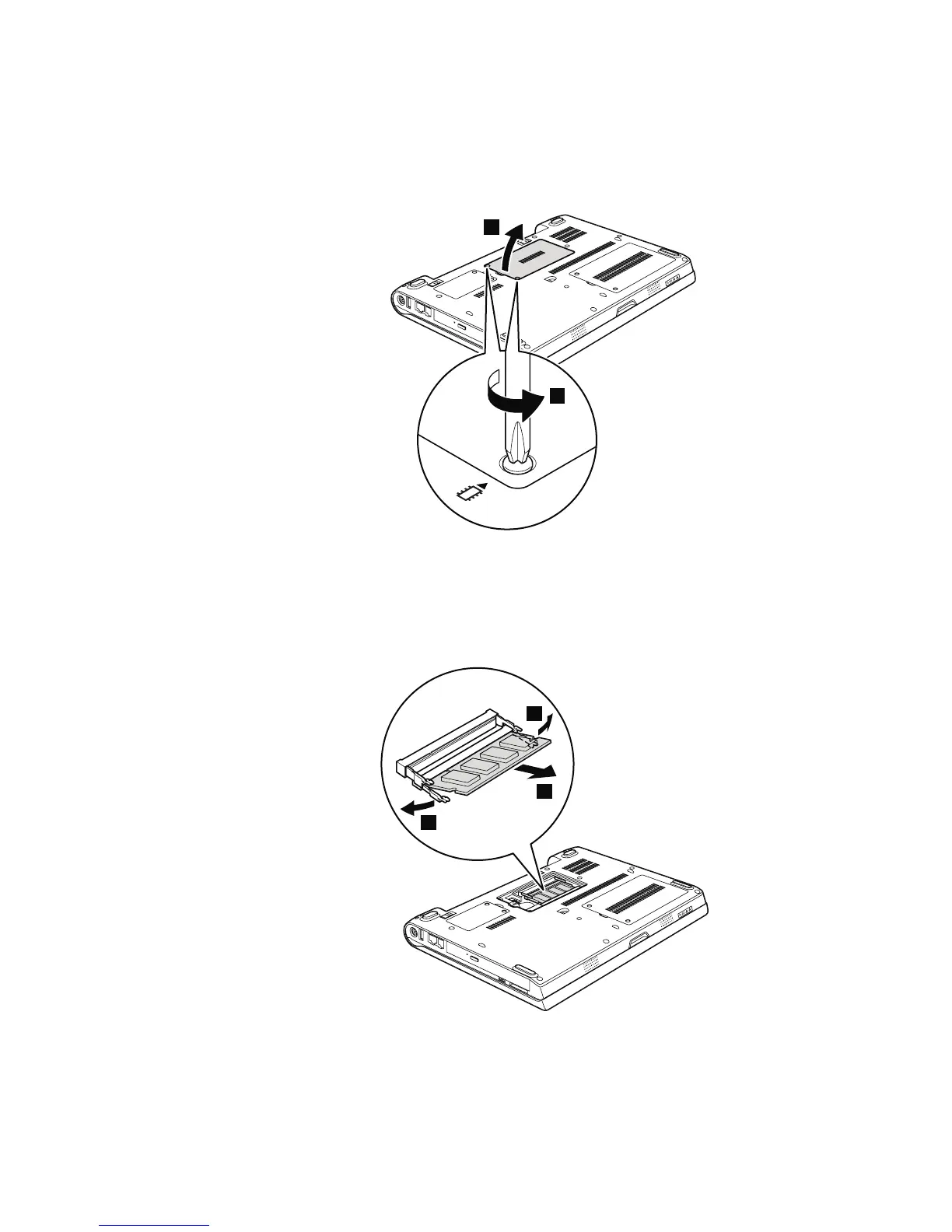

1030 DIMM slot cover
For access, remove this FRU:
v “1010 Battery pack” on page 45
Note: Loosen the screws 1, but do not remove them.
1
2
1040 DIMM
For access, remove these FRUs in order:
v “1010 Battery pack” on page 45
v “1030 DIMM slot cover”
1
1
2
When installing: Insert the notched end of the DIMM into the socket. Press the
DIMM firmly, and pivot it until it snaps into the place. Make
sure that it is firmly fixed in the slot and does not move easily.
Removing and replacing a FRU
48 MT 0763
