36
G40-30/G40-45/G40-70/G40-70m/Z40-70/Z40-75 Hardware Maintenance Manual
1030 Optical drive
For access, remove this FRU:
“1010 Battery pack” on page 33
“1020 Base cover” on page 34

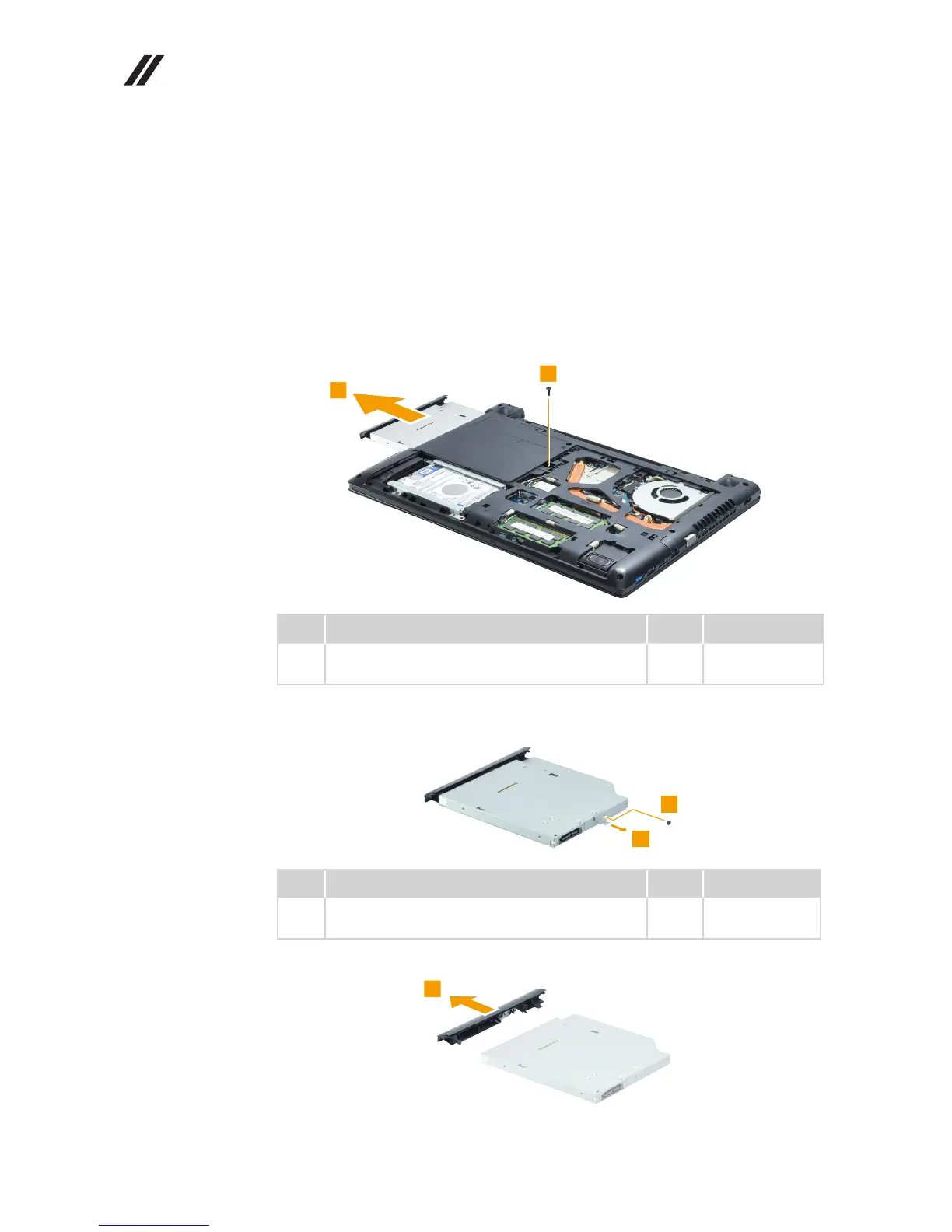

Figure 3. Removal steps of optical drive
Remove the screw
1
. Pull the optical drive out in the direction shown by
arrow
2
.
1
2
Step Screw (quantity) Color Torque
1
M2 × 3.5 mm, at-head, nylok-coated (1)
ODD BKT to D to KB
Black 1.5 ~ 2.0 kgf*cm
Remove the screw
3
, then remove the optical drive bracket in the direction
shown by arrow
4
.
3
4
Step Screw (quantity) Color Torque
3
M2 × 3.5 mm, at-head, nylok-coated (1)
ODD BKT to ODD
Black 1.5 ~ 2.0 kgf*cm
Carefully remove the optical drive bezel in the direction shown by arrow
5
.
5
