IdeaPad S205 Hardware Maintenance Manual

1060 PCI Express Mini Card for wireless LAN

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1040 Keyboard” on page 37

• “1050 Base cover” on page 39

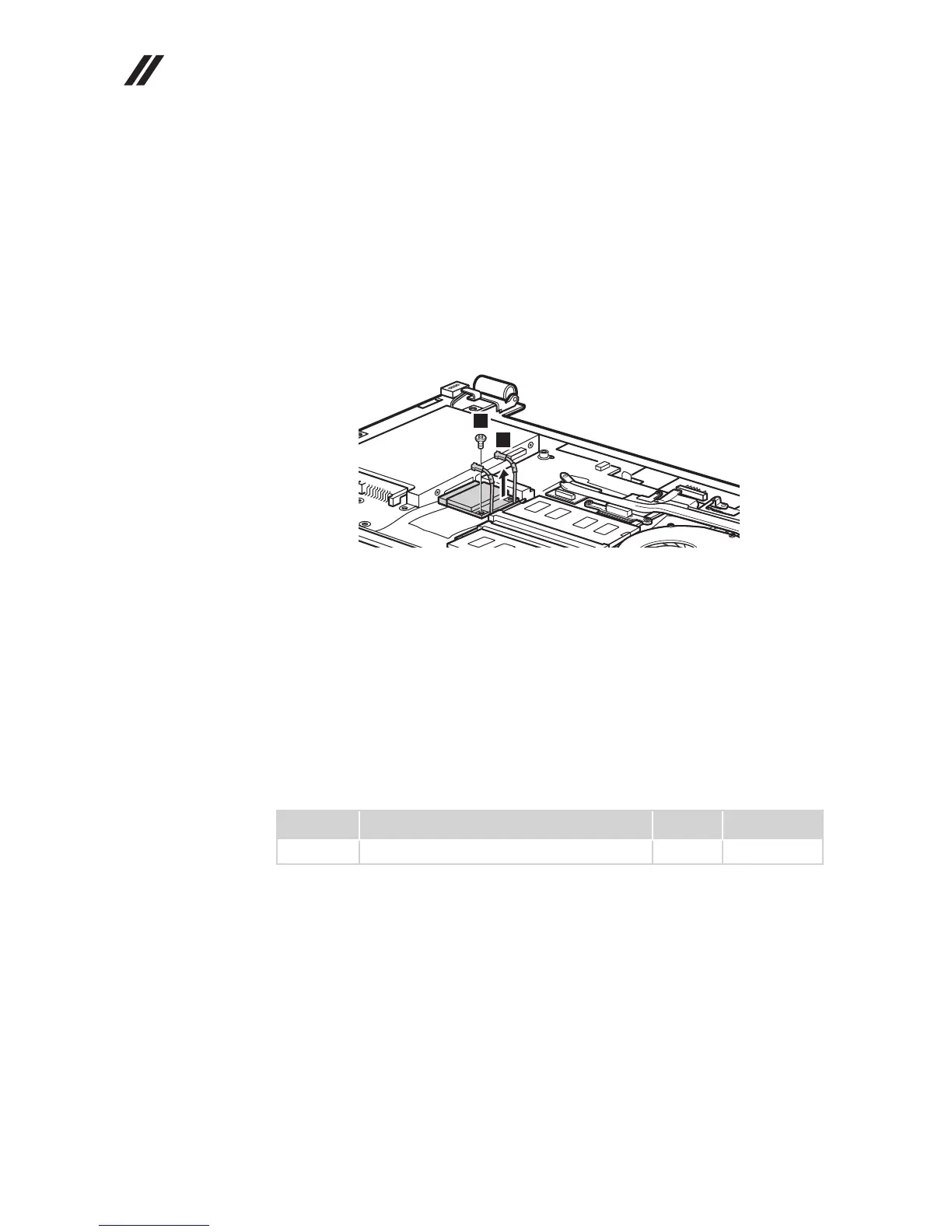

Figure 6. Removal steps of PCI Express Mini Card for wireless LAN

Disconnect two wireless LAN cables (black, white) in the direction shown by

arrow

, and then remove one screw

In step

, unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your ngers and gently unplug

them in the direction shown by arrow.

Notes: wireless LAN card has 2 cables in step

wireless LAN card in some models may have 3 cables in step

Step Screw (quantity) Color Torque

M2 × 3 mm, at-head, nylok-coated (1) Black 1.6 kgfcm
