56
IdeaPad S205 Hardware Maintenance Manual
1150 LCD panel, LCD cable and hinges
For access, remove these FRUs in order:
“1010 Battery pack” on page 34
“1020 Dummy card” on page 35
“1040 Keyboard” on page 37
“1050 Base cover” on page 39
“1060 PCI Express Mini Card for wireless LAN” on page 42
“1070 LCD unit” on page 44
“1140 LCD front bezel” on page 55

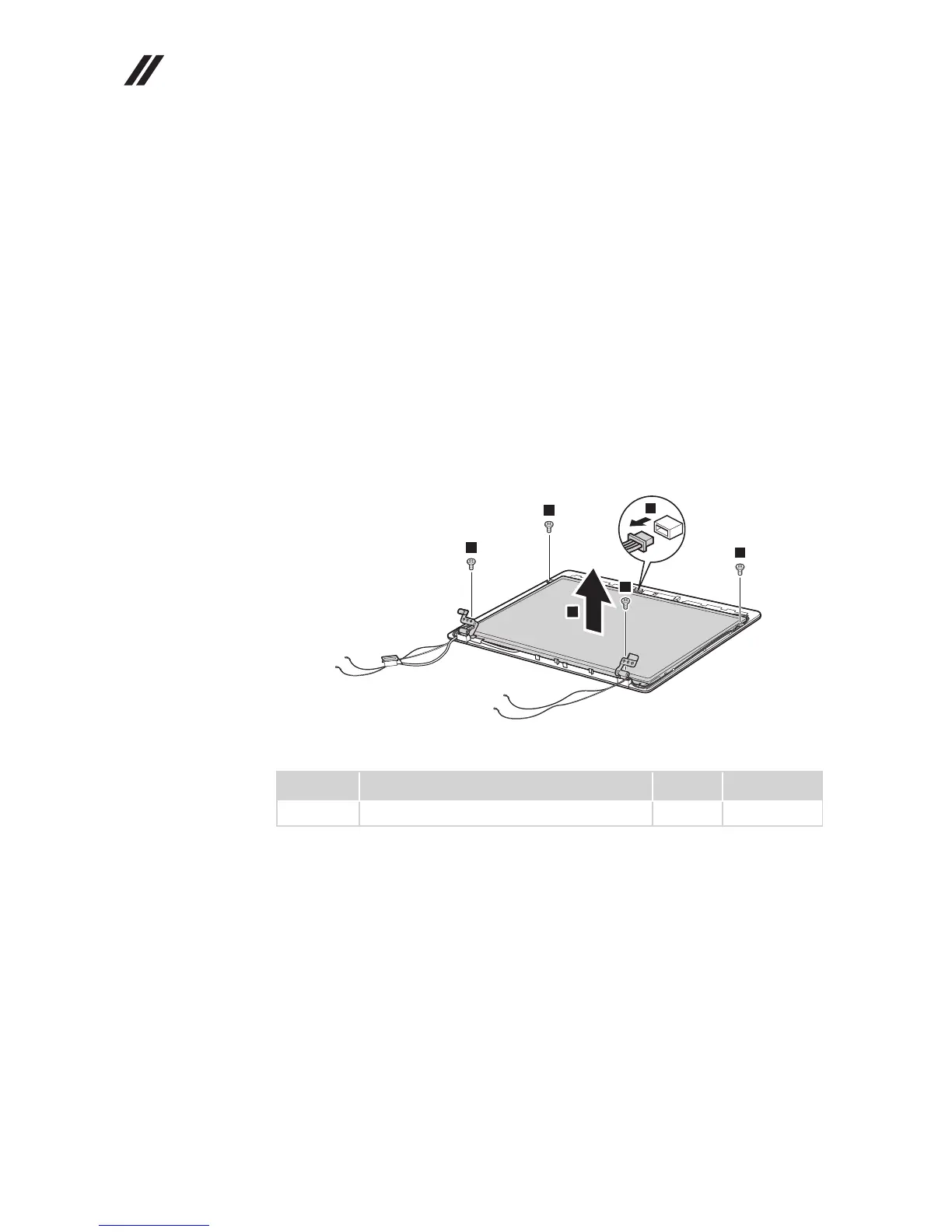

Figure 15. Removal steps of LCD panel, LCD cable and hinges
Remove four screws
1
, detach the integrated camera connector in the
direction shown by arrow
2
, and then remove the LCD panel in the direction
shown by arrow
3
.
3
2
1
1
1
1
Step Screw (quantity) Color Torque
1
M2 × 3 mm, at-head, nylok-coated (4) Black 1.6 kgfcm
