Components and connectors

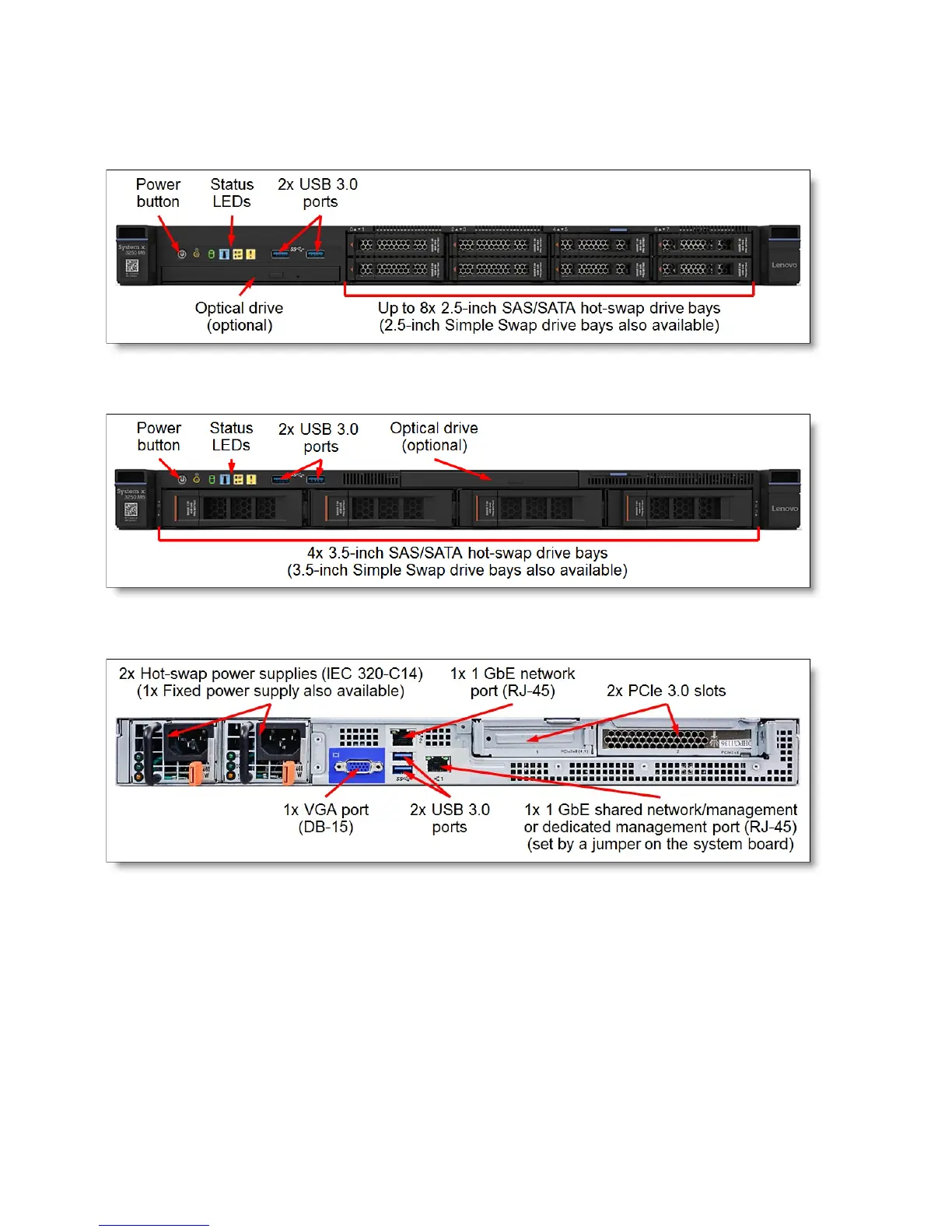

The following figure shows the front of the System x3250 M6 server with up to eight 2.5-inch drive bays.
Figure 2. Front view of the System x3250 M6: 8x 2.5-inch drive bays
The following figure shows the front of the System x3250 M6 server with four 3.5-inch drive bays.
Figure 3. Front view of the System x3250 M6: 4x 3.5-inch drive bays
The following figure shows the rear of the System x3250 M6 server.
Figure 4. Rear view of the System x3250 M6
