LenovoTAB410

1010 Front Camera

Foraccess,removetheseFRUsinorder:

• “1010BackCover”onpage 27

• “1020Battery”onpage 28

• “1030SubBoard”onpage 33

• “1040AntennaSubBoard”onpage 37

• “1050SideKey”onpage 39

• “1060RearCamera”onpage 41

• “1070Earphone”onpage 42

• “1080Speaker”onpage 45

• “1090MainBoard”onpage 46

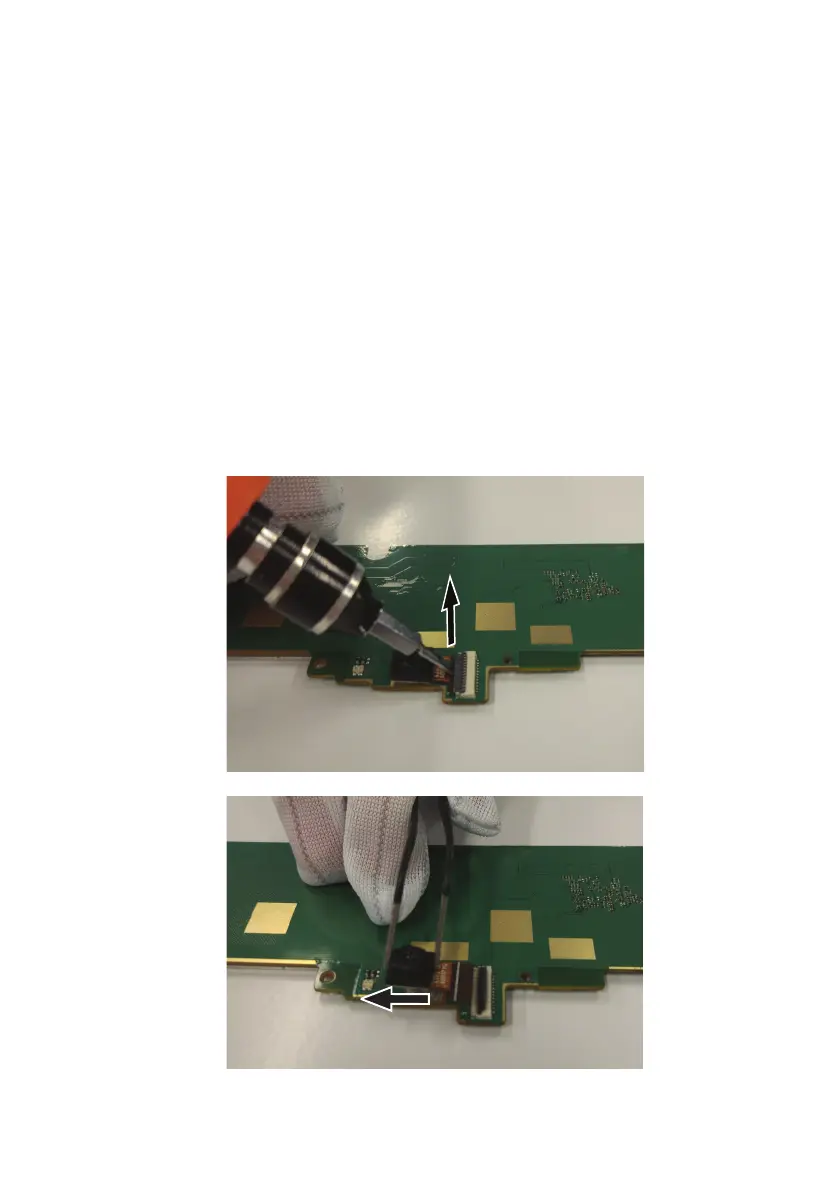

Figure10.Removalstepsoffrontcamera

OpenthefrontcameraFPCconnectorandremovetheFrontCamera.
