6. For a 3.5-inch drive, install the drive into the Universal Adapter Bracket, 5.25 to
3.5-inch.

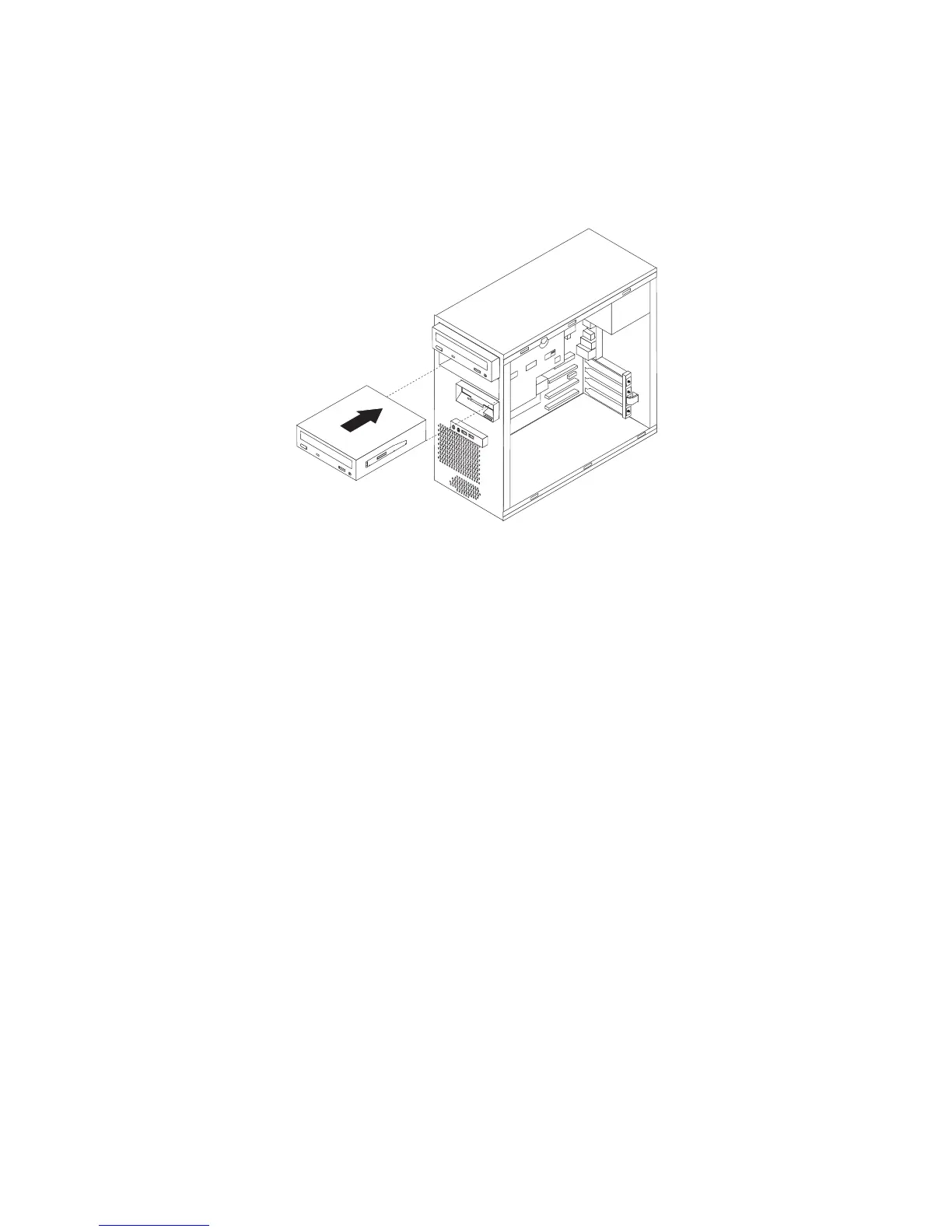

7. Install the drive into the bay until it snaps into position.
Note: For the adapter bracket, install the screws that secure the bracket in the
bay.
8. Install the front bezel by aligning the plastic tabs on the bottom of the bezel
with the corresponding holes in chassis; then snap it into position.
9. To connect the drive, go to “Connecting serial ATA drives” on page 30.
Chapter 3. Installing options 29
