Installing a drive in bay 1 or bay 2
To install a drive in bay 1 or bay 2, follow these steps:

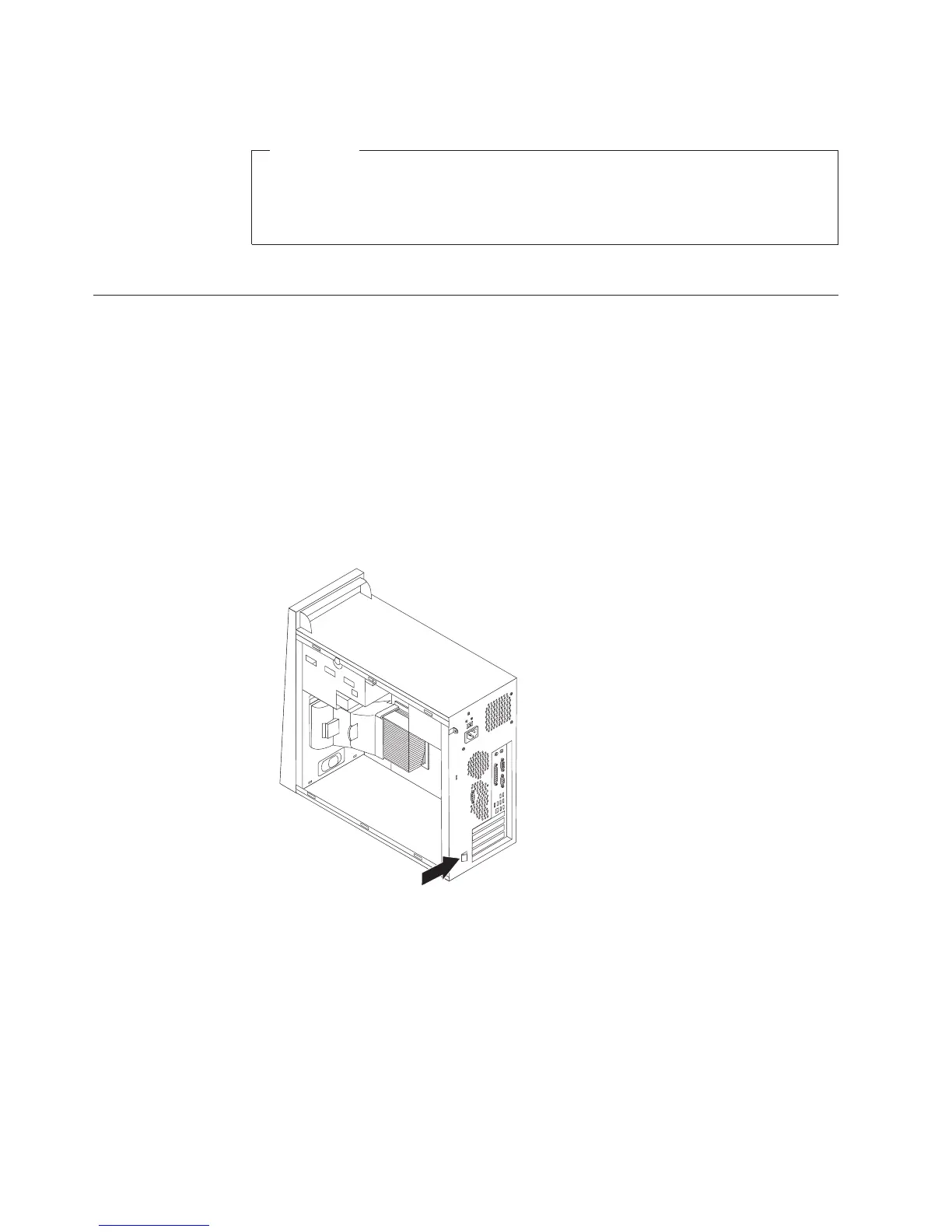

1. Remove the cover. See “Removing the cover” on page 19.

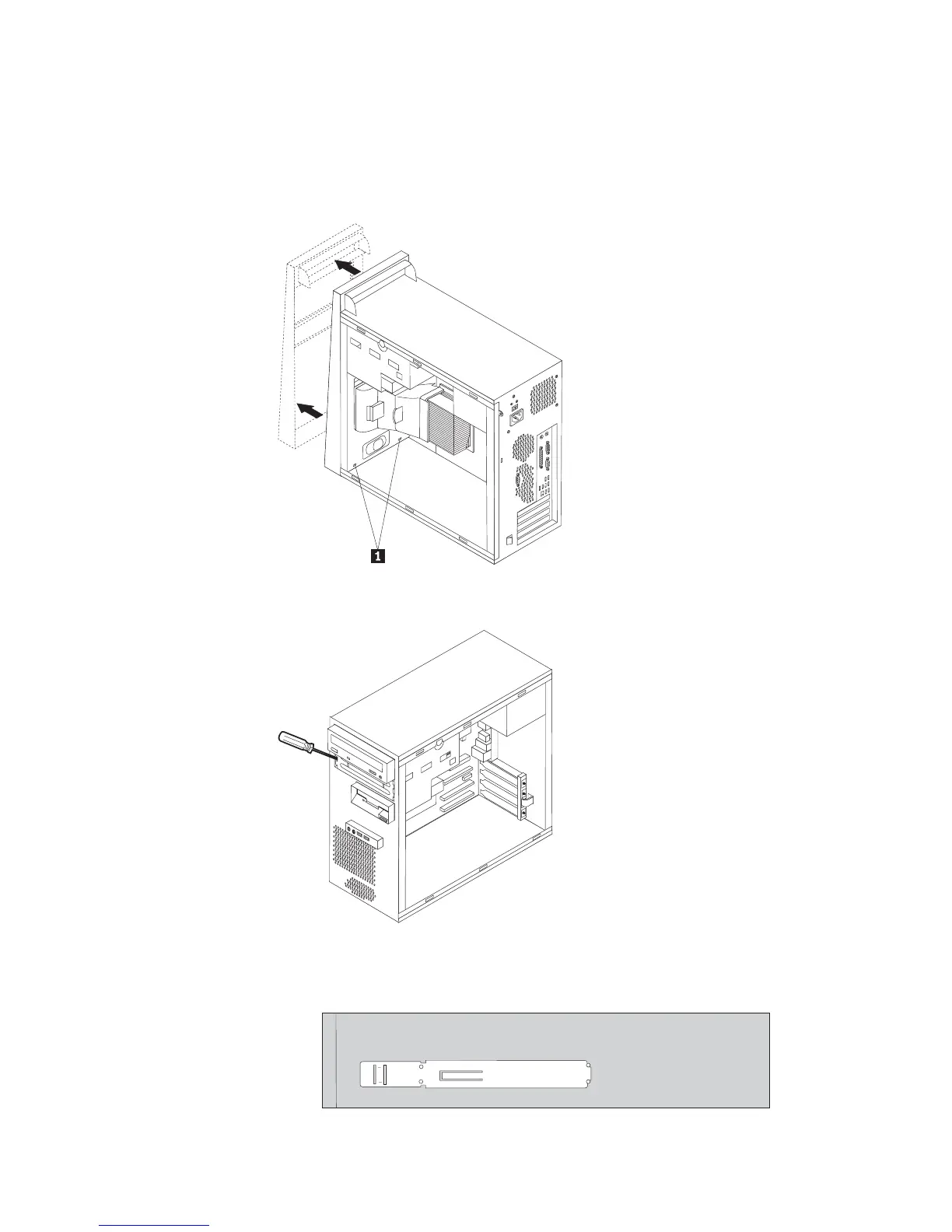

2. Remove the front bezel by pressing downward on the plastic tabs 1 and
pulling the bezel outward as shown.
3. Remove the static shield from the drive bay by using a flat-blade screwdriver
to gently pry it loose.
4. Remove the plastic panel in the bezel for bay 2 by squeezing the plastic tabs
that secure the panel on the inside of the bezel.
5. For a 5.25-inch drive, install a retainer bracket on the side of the drive.
28 User Guide
