Lenovo ThinkCentre M70q User Manual

4. Reconnect the external cables and power adapter to the corresponding connectors on the computer.

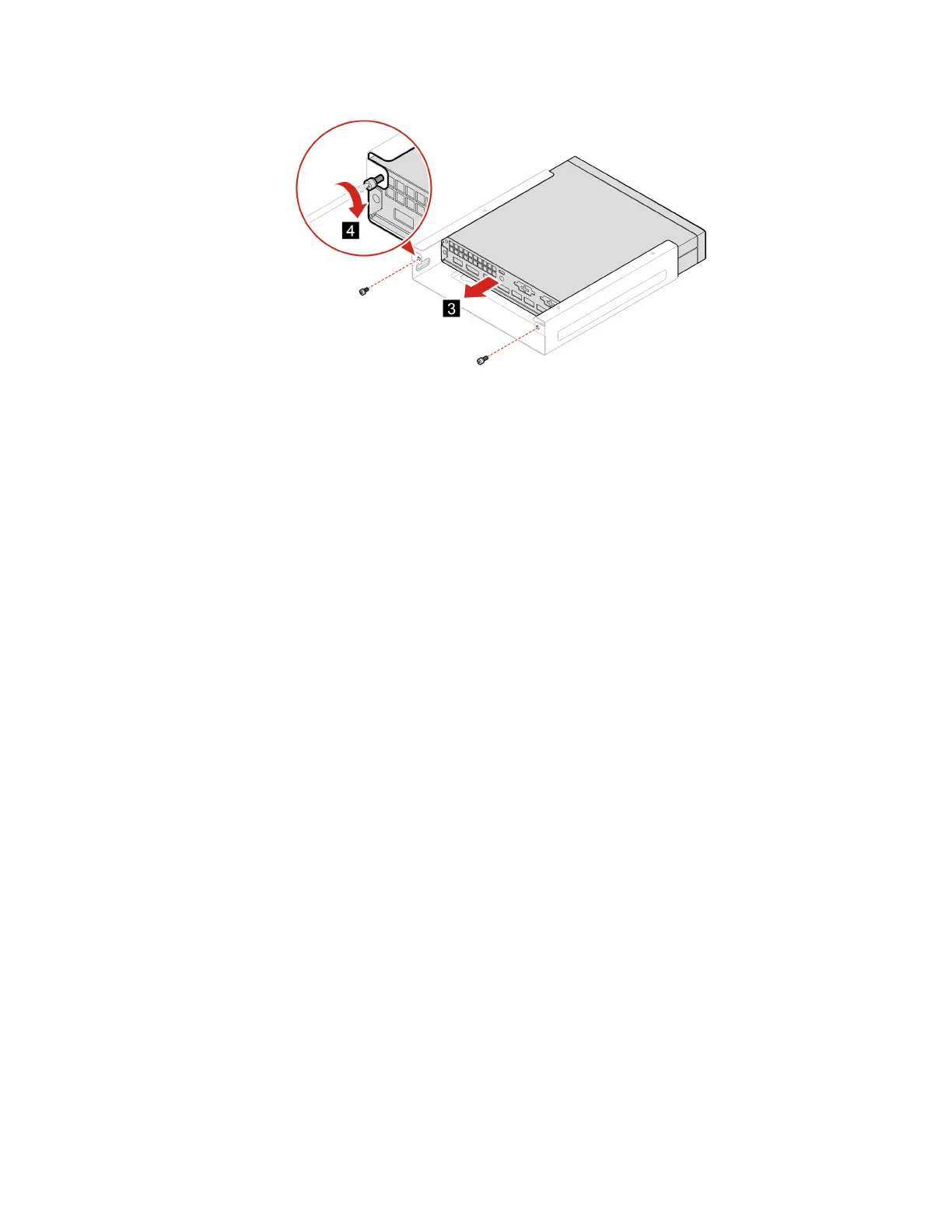

Dust shield
Prerequisite
Before you start, read Chapter 1 “Important safety information” on page 1 and print the following
instructions.
Replacement procedure
1. Remove any media from the drives and turn off all connected devices and the computer.
2. Disconnect all power cords from electrical outlets and disconnect all cables from the computer.
3. Replace the dust shield.
Chapter 5. Hardware removal and installation 53

Lenovo ThinkCentre M70q Specifications

General

Memory	Up to 64GB DDR4
Processor	Up to 10th Gen Intel Core i9
Graphics	Integrated Intel UHD Graphics
Operating System	Windows 10 Pro
Dimensions	179 x 182.9 x 36.5 mm (7.0 x 7.2 x 1.4 inches)
Ports (Front)	1 x USB 3.2 Gen 1 Type-A, 1 x USB-C 3.2 Gen 1, Headphone/Microphone combo jack
Ports (Rear)	2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x Ethernet (RJ-45)
Wireless	Wi-Fi 6, Bluetooth 5.1
