Lenovo ThinkPad Tablet 2 Hardware Maintenance Manual

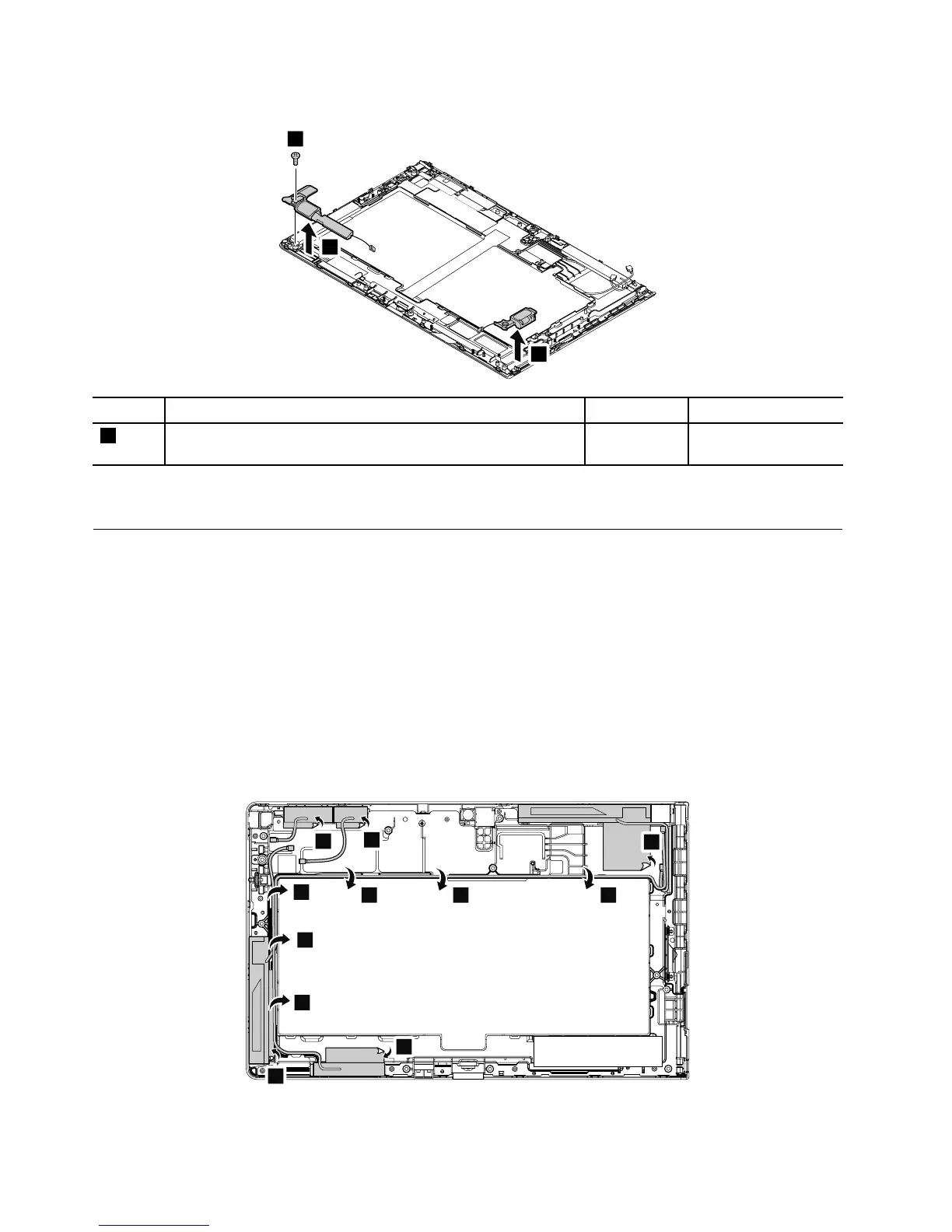

Removalstepsofspeakersassembly
2
1
2
StepScrew(quantity)Color
Torque
1
M2×3mm,at-head,nylon-coated(1)
Black0.181Nm
(1.85kgf-cm)
Wheninstalling:Ensurethattheconnectorsareattachedrmly.
1090WirelessLANantennaassembly,wirelessWANantennaassembly,
andGPSantenna
Foraccess,removetheseFRUsinorder:
•“1010TabletDigitizerPen”onpage43
•“1020Basecoverassembly”onpage43
•“1030Built-inbattery”onpage44
•“1040Rear-facingcameraassembly”onpage45
•“1050WirelessWANcard”onpage46
•“1060NFCcard,systemboard,andfront-facingcamera”onpage47
•“1070Touchsensorboard,I/Ocable,andI/Oboard”onpage49
•“1080Speakersassembly”onpage51
RemovalstepsofwirelessLANantennaassembly,wirelessWANantennaassembly,andGPSantenna
2 2 2
2
2
2
1
1
1
1
1
52HardwareMaintenanceManual

Lenovo ThinkPad Tablet 2 Specifications

General

Stepping	C0
Processor code	SR0Z4
Processor cache	1 MB
Processor cores	2
Processor model	Z2760
System bus rate	- GT/s
Processor family	Intel Atom®
Processor threads	4
Processor frequency	1.8 GHz
Processor cache type	L2
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	14 x 14 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit
Thermal Design Power (TDP)	- W
Internal memory	2 GB
Internal memory type	LPDDR2-SDRAM
Storage media	Flash
Compatible memory cards	MicroSD (TransFlash)
Internal storage capacity	32 GB
Display diagonal	10.1 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Graphics card	HD Graphics
Flash type	LED
Rear camera type	Single camera
Video capturing speed	30 fps
Maximum video resolution	1920 x 1080 pixels
Rear camera resolution (numeric)	8 MP
Front camera resolution (numeric)	2 MP
Speaker power	1 W
Material	Magnesium, Polycarbonate
Processor ARK ID	70105
Processor socket	FC-MB4760
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Microphone in	No
HDMI ports quantity	0
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Device type	Mobile tablet
Form factor	Slate
Product color	Black
Platform	Windows
Bundled software	-
Operating system version	8
Operating system installed	Windows 8
Battery capacity	30 Wh
Battery life (max)	720 h
Continuous audio playback time	150 h
Continuous video playback time	10 h
AC adapter power	10 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Weight and Dimensions

Depth	164 mm
Width	262.6 mm
Height	9.8 mm
Weight	600 g
