2050 LCD panel, hinges, and LCD cable
For access, remove these FRUs in order:
v “1010 Battery pack” on page 88
v “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state
drive (SSD) and storage converter” on page 91
v “1060 Palm rest or palm rest with fingerprint reader” on page 98
v “1090 Keyboard” on page 104
v “1130 Keyboard bezel and speaker assembly” on page 113
v “1140 Wireless USB adapter or Intel Turbo Memory Minicard” on page 119
v “1150 PCI Express Mini Card for wireless LAN/WiMAX” on page 121
v “1220 LCD unit and LCD cable cap” on page 144
v “2010 LCD front bezel (LCD cover kit)” on page 163
v “2020 Inverter card” on page 164
v “2030 Integrated camera” on page 166
v “2040 Bluetooth daughter card (BDC-2.1) for W700 and W700ds” on page 168

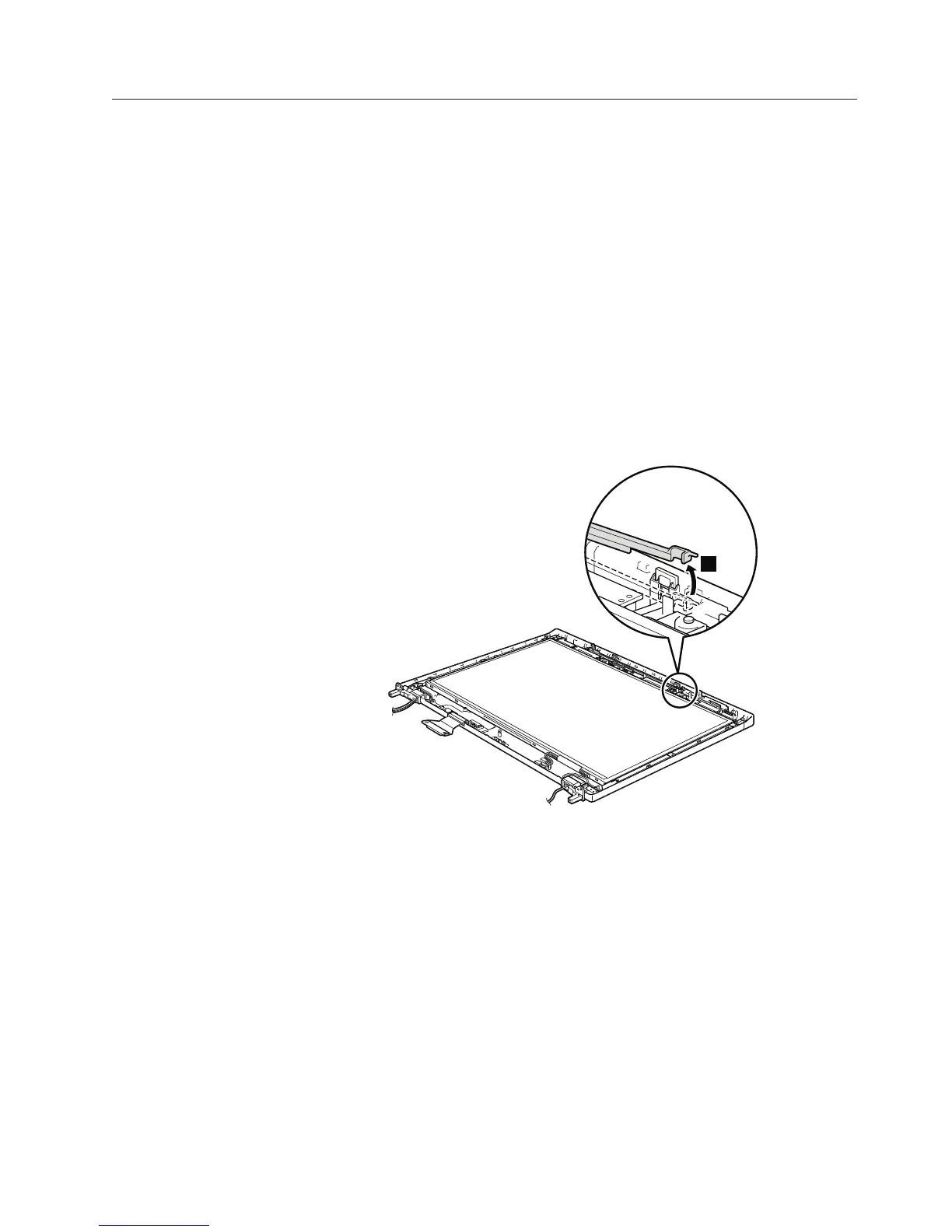

Table 52. Removal steps of LCD panel, hinges, and LCD cable
Step 1 to 5 is only for ThinkPad W700 and W700ds.
1
Removing and replacing a FRU 169
To Next Page
