13

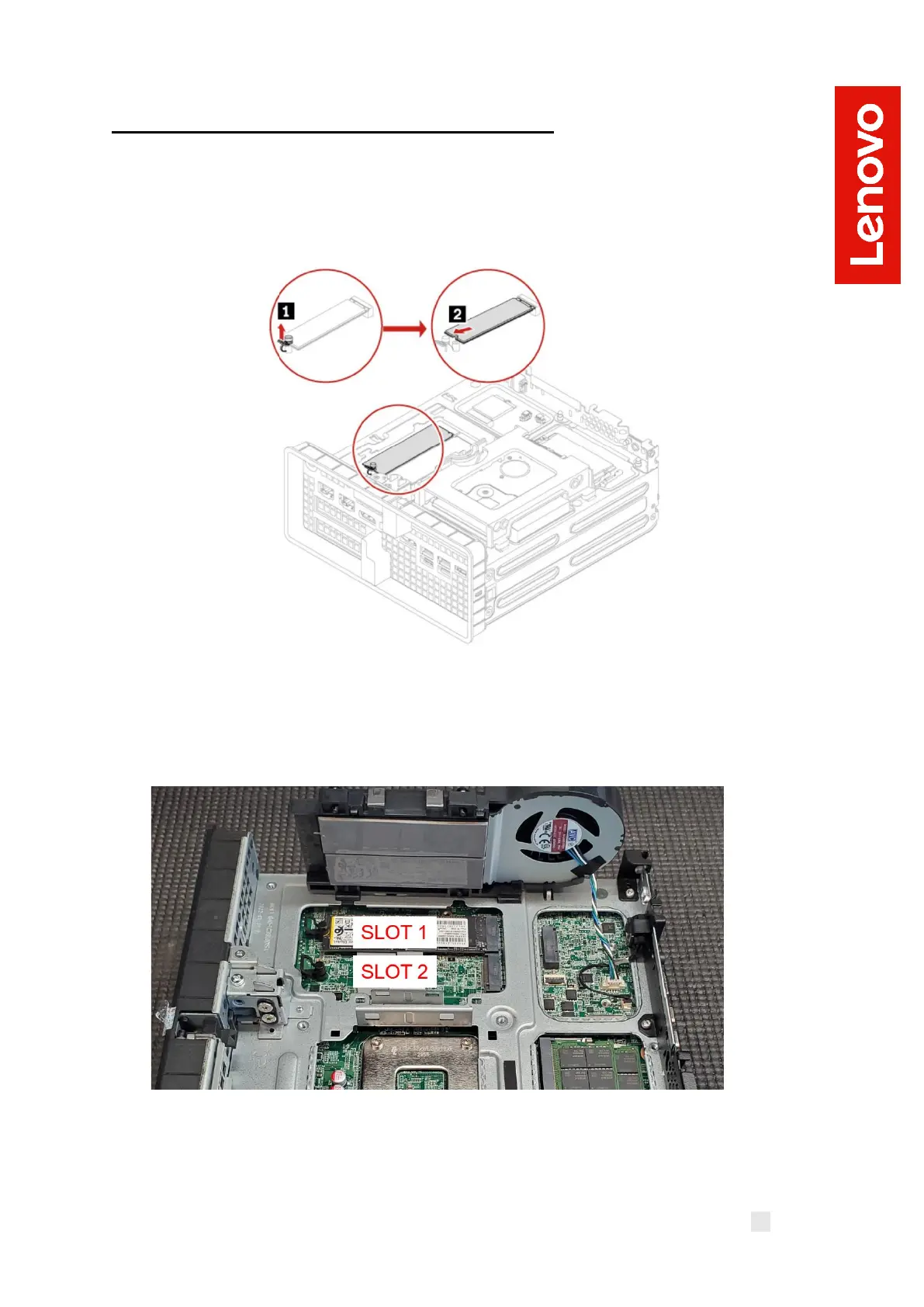

Remove and install the onboard M.2 NVMe drives:
1. To remove a drive, pull up on the retaining plunger for the M.2. It may
be necessary to gently pull up on the drive to free it from the heat sink
pad underneath. When the drive is free, pull it sideways away from the
slot as seen below.
2. Reverse the steps to install a drive. For best drive performance when
only one M.2 drive is installed in the system, install in Slot 1 as seen in
the image below:
Figure 5 - P3 Ultra M.2 Slot Reference Picture
