6

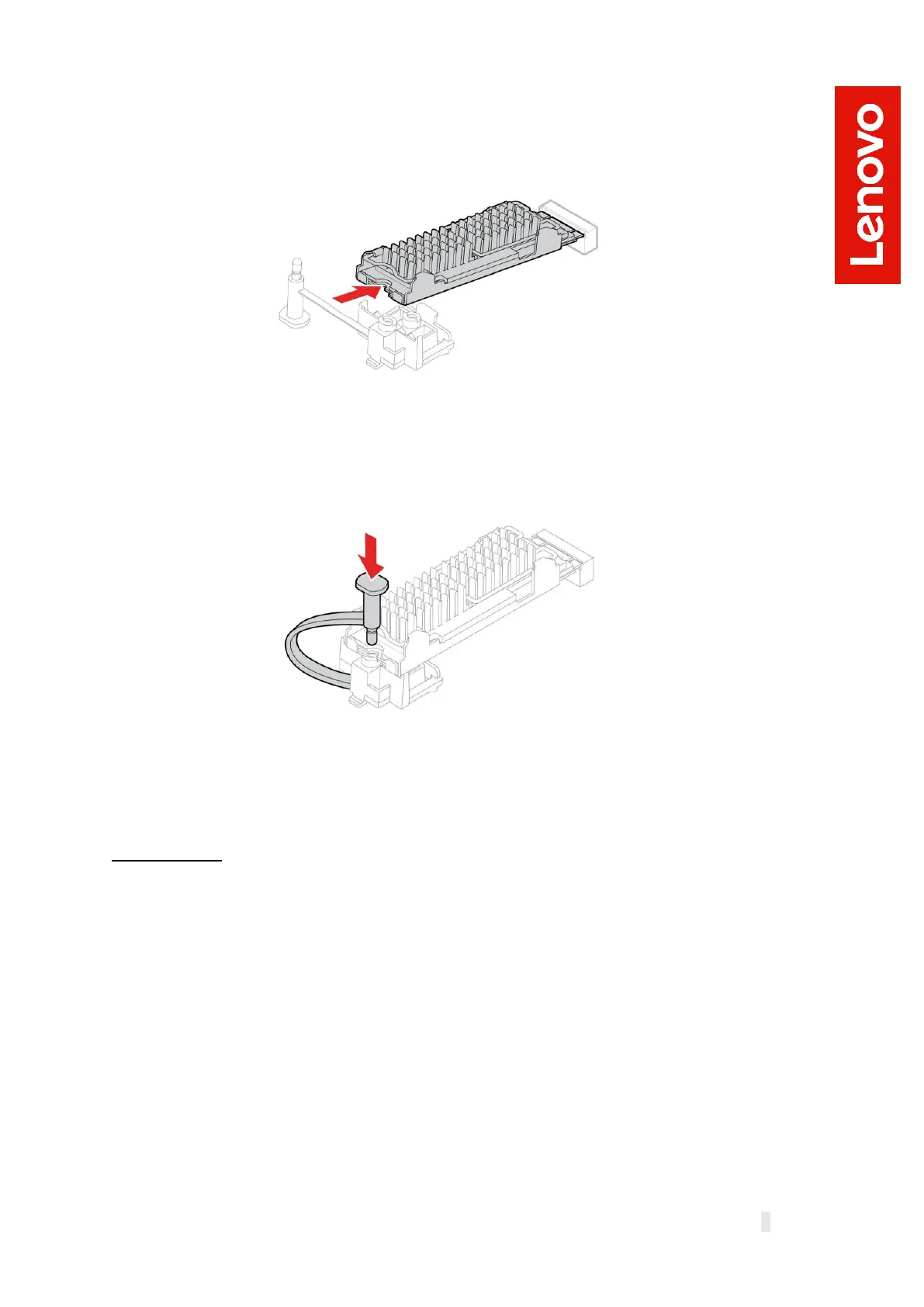

4. Install the heat sink with the bracket into the system.
5. Insert the stopper.
Note: P3 Tower systems come equipped with only the necessary onboard M.2
parts required for the configuration when it was originally ordered from Lenovo.
Adding an M.2 drive to an open onboard slot requires the option kit
4XF1C39743, which includes the heatsink assembly and stopper seen in the
instructions above. For supported double-sided 4TB M.2 drives, FRU
5F10U94103 is needed instead.
