Lenox LX - Chair Installation and Massage Mechanism; Placing Backrest in Correct Position; Lenox LX Massage Mechanism

-22-

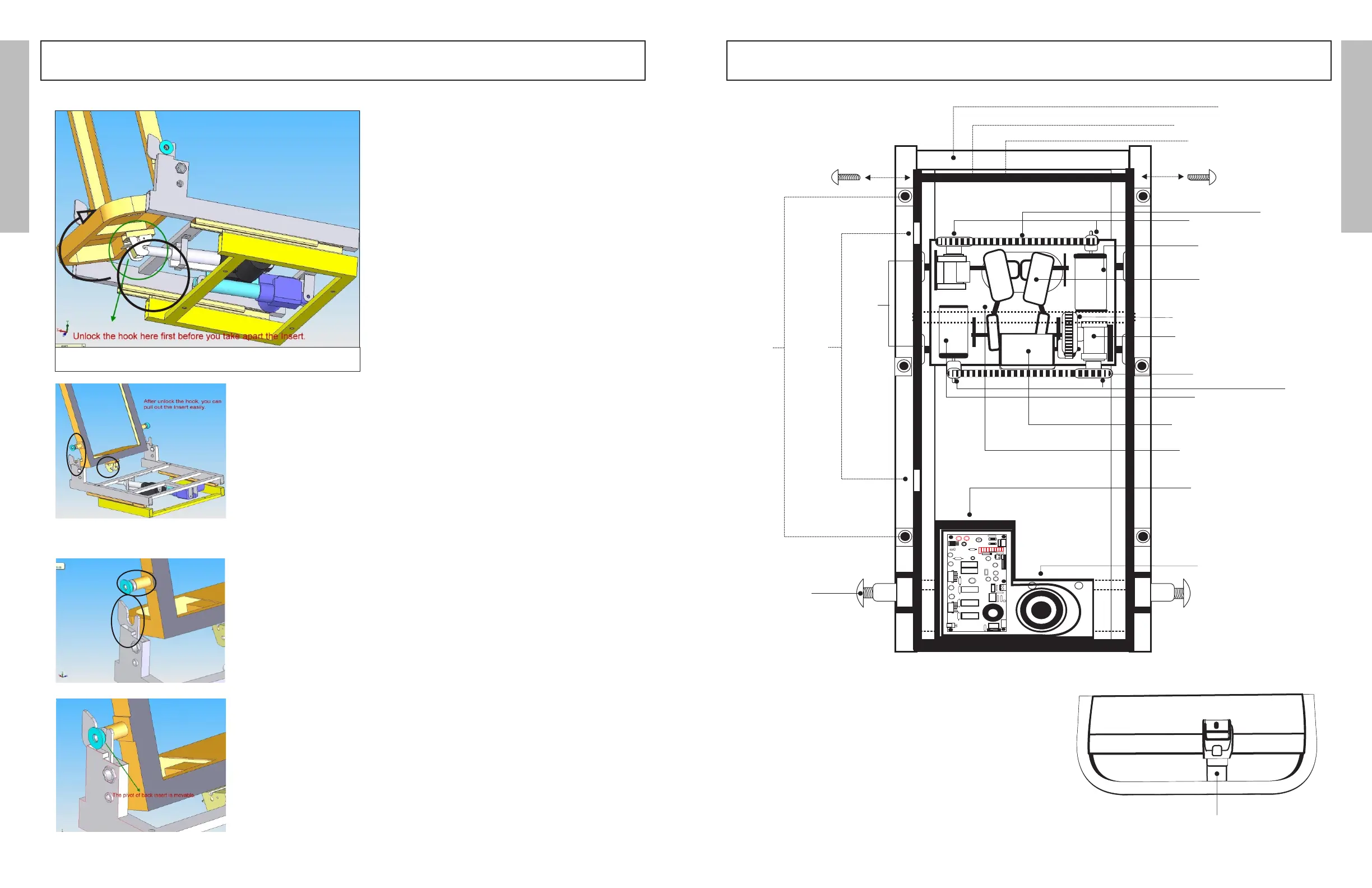

Detachment of Backrest
• Pull latch lever upward to release from recliner piston.
• As arrow indicates, bring backrest to fold onto the seat.
• Disconnect all cables (recliner, slider).
Attachment of Backrest
• On the lower portion of both side of the backrest, there are pivots.
• Alignbothpivotscorrectlysotheyrestperfectlyontothe“U”pivotframe.
• Oncebothpivotssitsnuglyonthe“U”pivotframe,alignthereleaselatchwiththe
recliner piston and snap close.
Before operating the chair upon attachment, check following items to
ensure proper operation
Figure1:Showspivotand“U”pivotframeatcorrectalignment/besuretoclearwire
Figure 2: Close-up view of pivot and “U’ pivot frame.
Figure 3: Shows correct pivot alignment.
Pull latch upward to release
Unlock the hook by pressing latch
from recliner piston to pull out insert
The pivot of back insert is removable
Placing Backrest in Correct Position Lenox LX: Massage Mechanism
MASSAGE MECHANISM
Chair Main Frame
Massage Mechanism Frame
Mechanism Limited Frame Bar
Kneading Belt
Belt Pulley
DC Motor(Kneading)
Massage Arm Extenstion
Tapping Belt
Belt Pulley
DC Motor (Travel)
DC Motor (Tapping)
Rodw/ballExtension
CASED Main PCB
Power Converter
Backrest Pivot Fastener
Philip Screws
Mechanism
Track
Guide Roller
Travel Signal
Sensor
Massage Mechanism
Frame Fasteners
(3/ea.side)
Bracket for Recline Piston
Up & Down Gear Box
Travel Belt
CHAIR INSTALLATION
