Do not cement air inlet pipe. Use high temperature RTV
silicone sealant so inlet pipe can be removed if service
is required.
In horizontal venting applications, the vent and air intake
pipe must be installed on the same side of the house
within the parameters shown in Figure 11.
Prime the trap system by slowly pouring 1 cup of water down
the vent pipe. On initial start-up of the unit, some of the
water used to prime the trap system may run down into the
combustion blower and cause noise.
G1D93BC Counterflow Models – Direct Vent Installation
An inlet air restrictor plate (see Figure 2 on page 5) is supplied with
this furnace and can be found in the plastic bag containing these
Installation Instructions and the User’s Information Manual. This
restrictor plate is to be used only in non-direct vent
applications. See pages 5 and 6 for more information on installing
the restrictor plate in non-direct vent applications.
The flue pipe screen (see Figure 2 on page 5) should be
installed at the termination of the flue pipe and is designed to
keep objects out of the flue pipe. An additional screen should
not be placed in the intake termination. If a screen is installed,
the air intake may freeze shut.
For horizontal venting, refer to Figure 11. For vertical venting,
refer to Figure 12. It is permissible to run the vent vertically
through the roof and terminate it as shown in Figure 12, and
to run the combustion air intake pipe horizontally through a
side wall and terminate as shown in Figure 11. The vent
pipe on horizontal runs must slope upward, away from the
furnace, at a minimum pitch of 1/4" per foot of run, to prevent
accumulation of condensate.

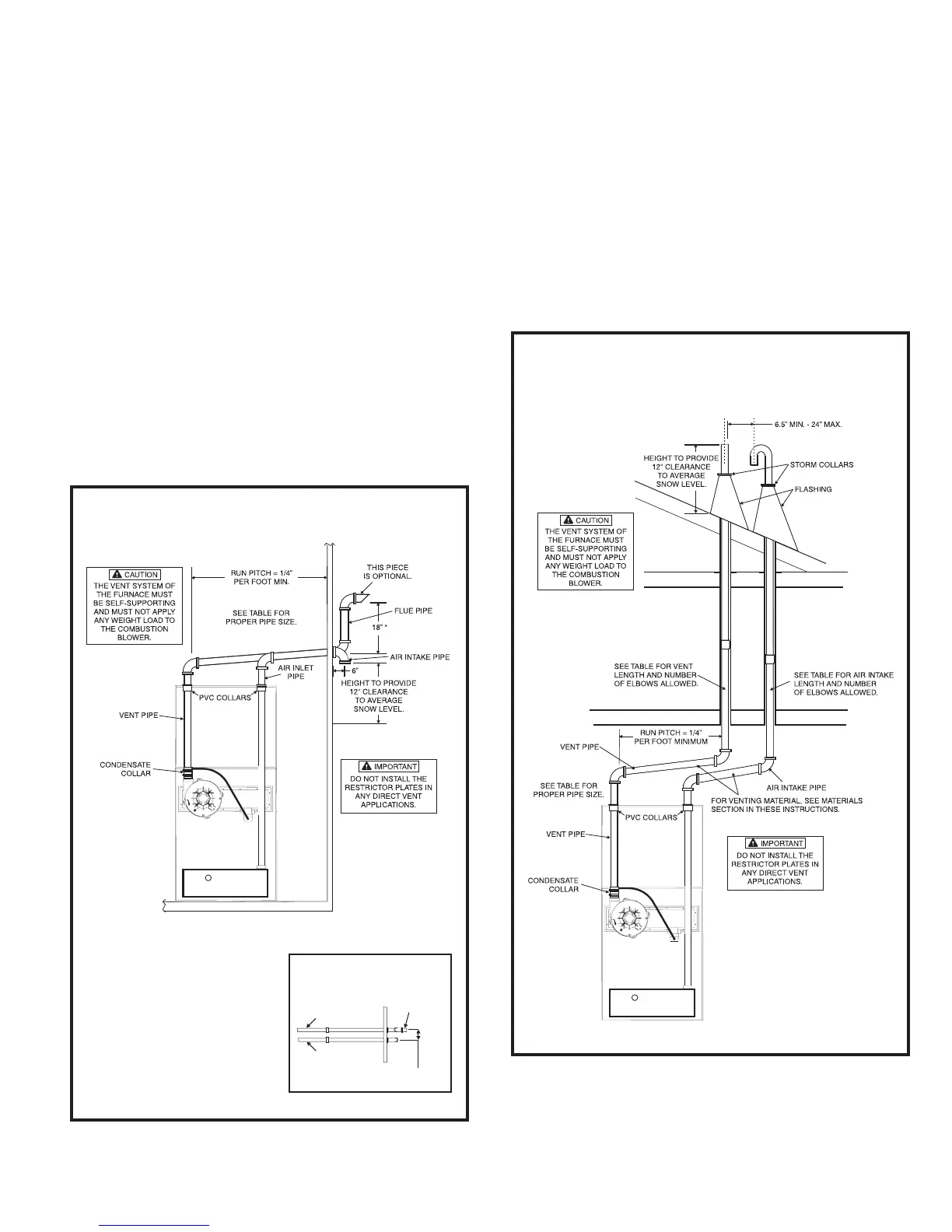

Counterflow Direct Vent Horizontal Venting
(G1D93BC Only)
Figure 11
* Maintaining a vertical separation
between the flue outlet and the
air intake of at least 18” is highly
recommended to minimize the
chance of flue gases
recirculating and freezing in the
air intake pipe. This distance
may be reduced in milder
climates or where wind is
unlikely to blow flue products to
the intake pipe, but should not
be less than 6”.
THIS PIECE
IS OPTIONAL.
INTAKE PIPE
FLUE PIPE
3” MIN. - 48” MAX.
Overhead View
Figure 12
Counterflow Direct Vent – Vertical Venting
(G1D93BC Only)
To Next Page
