12 Accessory Decoder LS 100/110
For information on how to read the turnout position on hand held
controller LH100 or another device, please refer to the manual
for that device.
Using external control on conjunction with the LS100/110
The LS100/LS110 version 2 provides the ability to control the
function devices connected to LS100/LS110 either digitally or
with an external push button (or REED switch). This is done
using the terminal marked ‘
⊥⊥‘. Illustration 6 shows you how to
wire the external push buttons and/or REED switches.

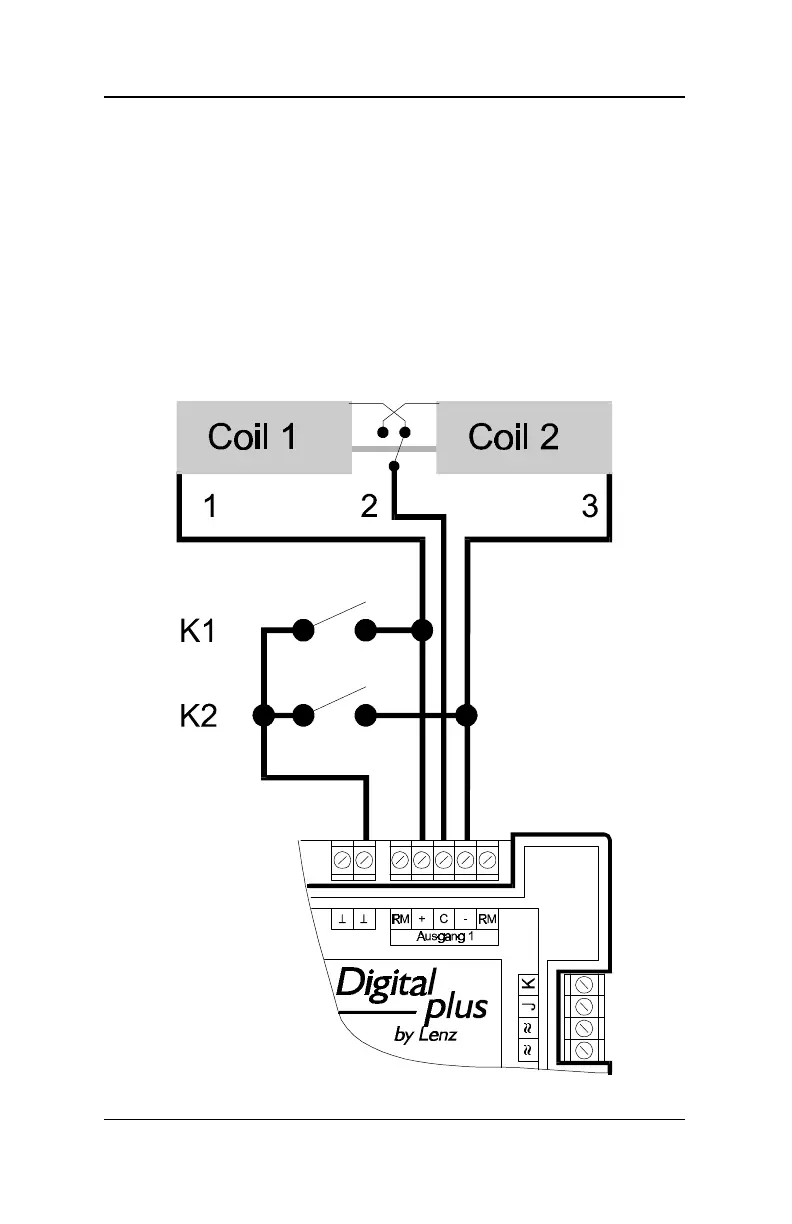

Illustration 6: Connecting external controls
