Changes to the LH100 3
2 Changes to the LH100
Due to the new functions we have made some changes to the display
and operation of the LH100. These changes are described below.
2.1 Display when controlling a locomotive

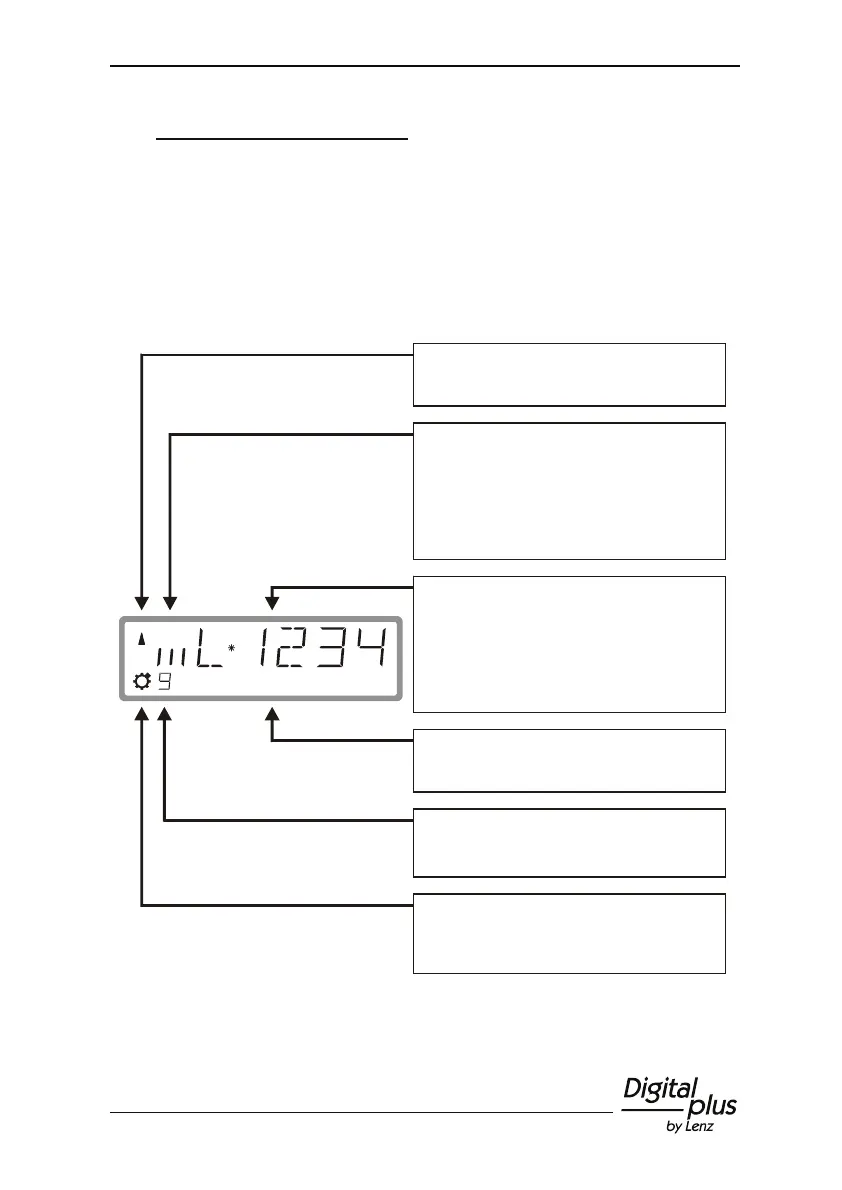

1 2 345678
Figure 9 indicates whether function 9 o
f
the newly selected function group is
activated or not.
The lamp symbol indicates whethe
r
function 0 of the newly selected function
group is activated or not.
The arrow indicates the direction of motion:
A
rrow upward: forward
A
rrow downward: backward
Lines indicate the function groups:
1 vertical line:
Function group 1 (F0 to F9)
2 vertical lines:
Function group 2 (F10 to 19)
3 vertical lines:
Function group 3 (F20 to F28)
This field indicates the address o
f
- a single locomotive (L),
- a locomotive in multiple traction operation (m),
- a double traction (D),
- a multiple traction (M) o
r
- the speed step (V)
Figures 1 to 8 indicate whethe
r
functions 1 to 8 of the newly selected
function group are activated or not.
