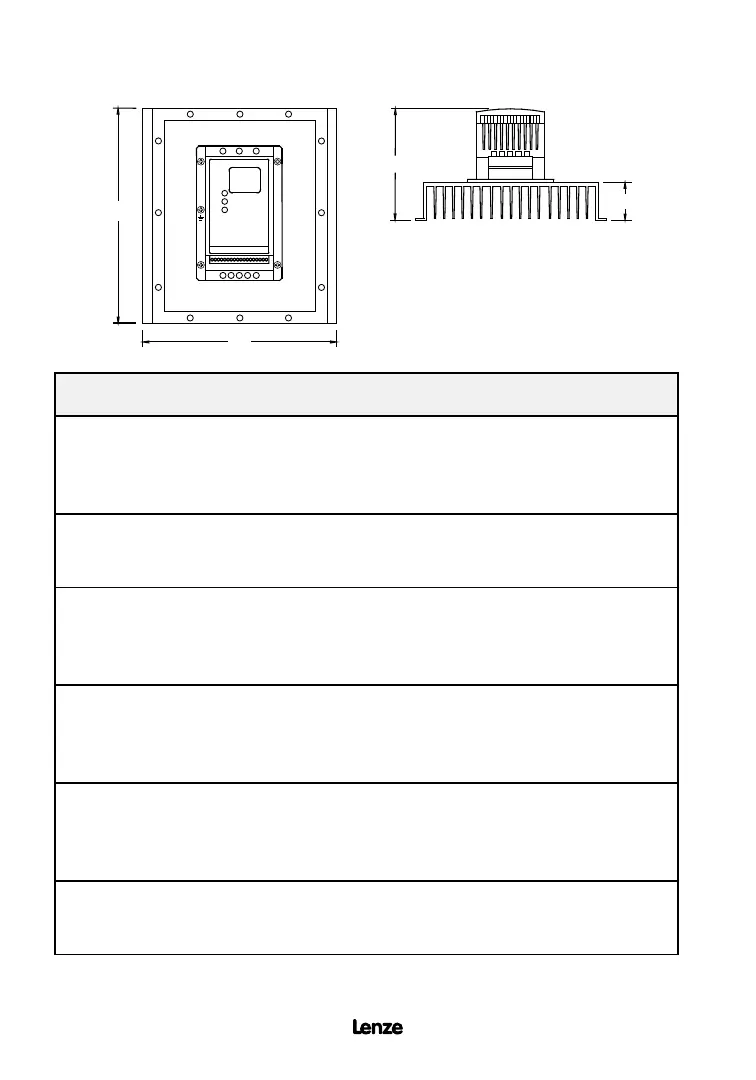

2.1 SCF THROUGH-HOLE MOUNT DIMENSIONS
D
H
W
P
HP kW
INPUT
VOLTAGE
MODEL H W D P
1 0.75
208 / 240 SF210YF 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
208 / 240 SF210F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
400 / 480 SF410F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
480 / 590 SF510F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
1.5 1.1
208 / 240 SF215YF 7.72 (196) 6.80 (173) 4.75 (121) 1.20 (30)
208 / 240 SF215F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
400 / 480 SF415F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
2 1.5
208 / 240 SF220YF 7.72 (196) 6.80 (173) 4.75 (121) 1.20 (30)
208 / 240 SF220F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
400 / 480 SF420F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
480 / 590 SF520F 7.72 (196) 6.80 (173) 4.55 (116) 1.20 (30)
3 2.2
208 / 240 SF230YF 7.72 (196) 8.54 (217) 5.30 (135) 1.75 (44)
208 / 240 SF230F 7.72 (196) 8.54 (217) 5.10 (130) 1.75 (44)
400 / 480 SF430F 7.72 (196) 8.54 (217) 5.10 (130) 1.75 (44)
480 / 590 SF530F 7.72 (196) 8.54 (217) 5.30 (135) 1.75 (44)
5 3.7
208 / 240 SF250YF 9.59 (244) 11.14 (283) 7.65 (194) 3.60 (91)
208 / 240 SF250F 7.72 (196) 8.54 (217) 6.30 (160) 2.75 (70)
400 / 480 SF450F 7.72 (196) 8.54 (217) 6.30 (160) 2.75 (70)
480 / 590 SF550F 7.72 (196) 8.54 (217) 6.30 (160) 2.75 (70)
7.5 5.5
208 / 240 SF275F 11.59 (294) 11.14 (283) 7.65 (194) 3.60 (91)
400 / 480 SF475F 9.59 (244) 11.14 (283) 7.65 (194) 3.60 (91)
480 / 590 SF575F 9.59 (244) 11.14 (283) 7.65 (194) 3.60 (91)
