3.5.58 Angle value selection (SELPH)
3−250
l
EDSVS9332P−EXT DE 2.0
SELPH2
SELPH2-IN1
SELPH2
C1667/1
C1669/1
SELPH2-OUT
SELPH2-SELECT
C1666
C1668
SELPH2-IN2
C1667/2
C1669/2
SELPH2-IN3
C1667/3
C1669/3
SELPH2-IN4
C1667/4
C1669/4
SELPH2-IN5
C1667/5
C1669/5
SELPH2-IN6
C1667/6
C1669/6
SELPH2-IN7
C1667/7
C1669/7
SELPH2-IN8
C1667/8
C1669/8
FIXED0INC
1
2
3
4
5
6
7
8
0
8
C1665
0

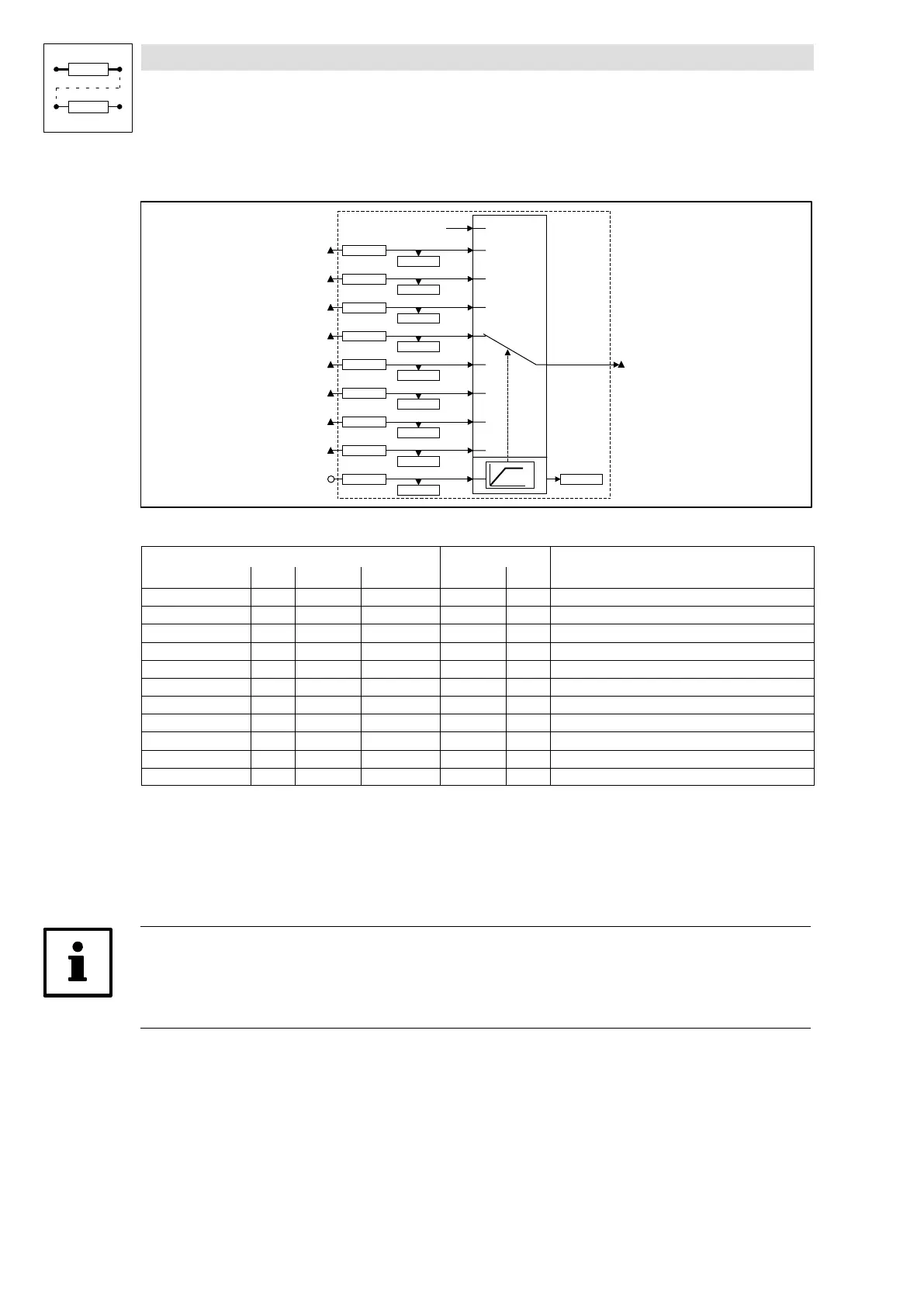

Fig. 3−198 Function block SELPH2
Signal
Source Note
Name Type DIS DIS format CFG List
SELPH2−SELECT a C1668 dec C1666 1 −
SELPH2−IN1 ph C1669/1 dec [inc] C1667/1 3 −
SELPH2−IN2 ph C1669/2 dec [inc] C1667/2 3 −
SELPH2−IN3 ph C1669/3 dec [inc] C1667/3 3 −
SELPH2−IN4 ph C1669/4 dec [inc] C1667/4 3 −
SELPH2−IN5 ph C1669/5 dec [inc] C1667/5 3 −
SELPH2−IN6 ph C1669/6 dec [inc] C1667/6 3 −
SELPH2−IN7 ph C1669/7 dec [inc] C1667/7 3 −
SELPH2−IN8 ph C1669/8 dec [inc] C1667/8 3 −
SELPH2−OUT ph − − − − −
− − C1665 dec − − Displays the current selection
Function
l An analog signal at SELPHx−SELECT directly selects an input and switches it to SELPHx−OUT.
– If SELPHx−SELECT = 0, SELPHx−OUT switches to FIXED 0 INC.
– If SELPHx−SELECT < 0, SELPHx−OUT switches to FIXED 0 INC.
– If SELPHx−SELECT > 8, SELPHx−OUT switches to SELPHx−IN8.
Tip!
You can select an input via a digital signal by connecting the FB CONVDAx upstream of
SELPHx−SELECT.
