Lenze EVS9327EP User Manual

Function library
Function blocks
3.5.64 Edge evaluation (TRANS)
3−271
l
EDSVS9332P−EXT DE 2.0
3.5.64.1 Evaluate positive edge
t
t
TRANS1−IN
TRANS1−OUT
C0711 C0711

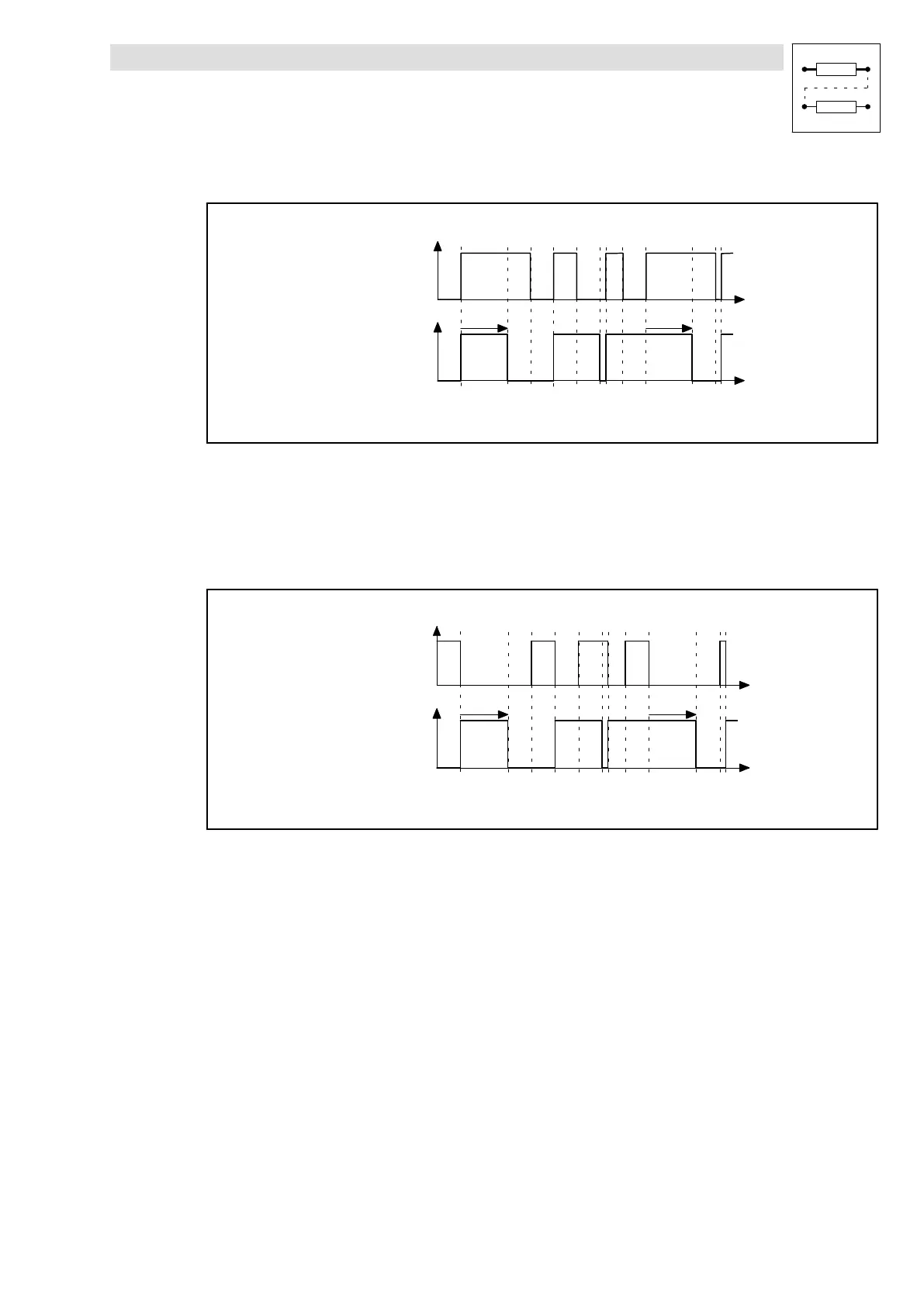

Fig. 3−215 Evaluation of positive edges (TRANS1)
l
The output TRANSx−OUT is set to HIGH as soon as a LOW−HIGH edge is sent to the input.
l After the time set under C0711 or C0716 has elapsed, the output changes again to LOW
unless there is another LOW−HIGH edge at the input.
3.5.64.2 Evaluate negative edge
t
t
TRANS1−IN
TRANS1−OUT
C0711
C0711
Fig. 3−216 Evaluation of negative edges (TRANS1)
l
The output TRANSx−OUT is set to HIGH as soon as a HIGH−LOW edge is sent to the input.
l After the time set under C0711 or C0716 has elapsed, the output changes again to LOW,
unless there is another HIGH−LOW edge at the input.
