Maintenance
Maintenance operations
Lubricant quantity
8
66
Lenze • BA 12.0023 • 9.0

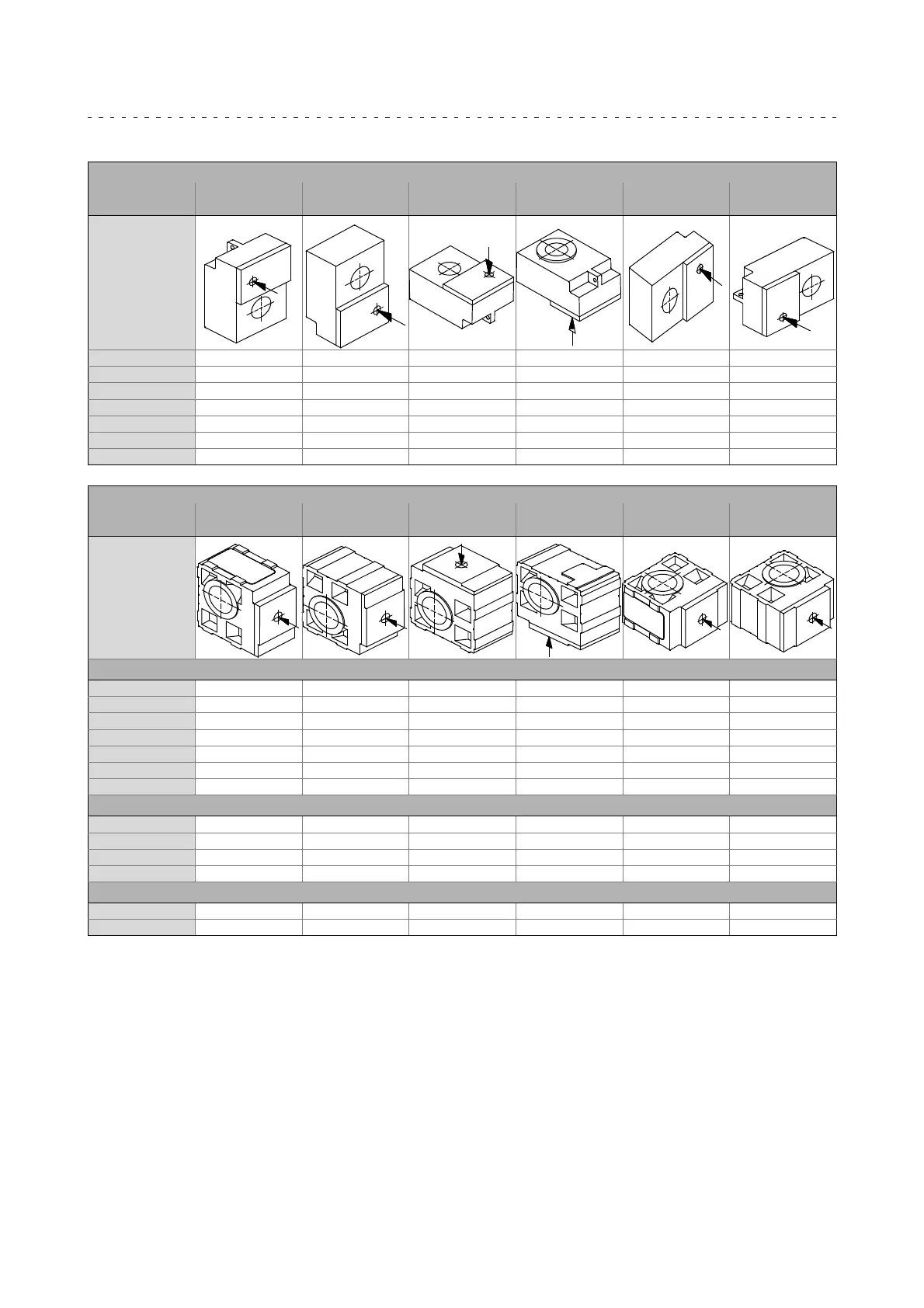

Shaft-mounted helical gearbox GFL-2; -3
Mounting
position
A B C D E F
GFL04 0.65 0.6 1.05 0.8 0.75 0.35
GFL05 1.3 1.4 1.7 1.7 1.3 0.7
GFL06 2.0 2.1 3.0 2.8 2.1 1.2
GFL07 4.3 3.8 6.3 5.8 4.6 2.5
GFL09 8.9 7.6 13 11.3 9.5 5.2
GFL11 16 15 25 21 20 9.0
GFL14 32 36 47 42 27 28
Right-angle gearbox
Mounting
position
A B C D E F
Helical-bevel gearbox GKS-3; -4
GKS04 0.8 1.4 1.5 1.1 1.3 1.3
GKS05 1.4 2 2.1 1.7 1.9 1.9
GKS06 2.4 3.6 4 3 3.6 3.6
GKS07 4.5 6.7 7.7 5.6 6.5 6.5
GKS09 6 14 16 10 14 14
GKS11 11.5 27 29 21 25 25
GKS14 21 50 56 38 47 47
Helical-worm gearbox GSS-2; -3
GSS04 0.5 1.0 1.0 1.0 0.8 0.8
GSS05 1.2 1.7 1.7 1.7 1.4 1.4
GSS06 1.8 3.0 3.0 3.0 2.6 2.6
GSS07 3.6 5.6 5.9 5.6 4.8 4.8
Helical-bevel gearbox GKL
GKL07 2.6 5.0 6.8 4.8 4.8 4.8
GKL09 4.6 8.4 10.4 7.7 8.8 8.4
Tab. 12 Amount of lubricant in litres

