Maintenance
Maintenance operations
Lubricant quantity
8
67
Lenze • BA 12.0023 • 9.0
Bevel gearbox GKR

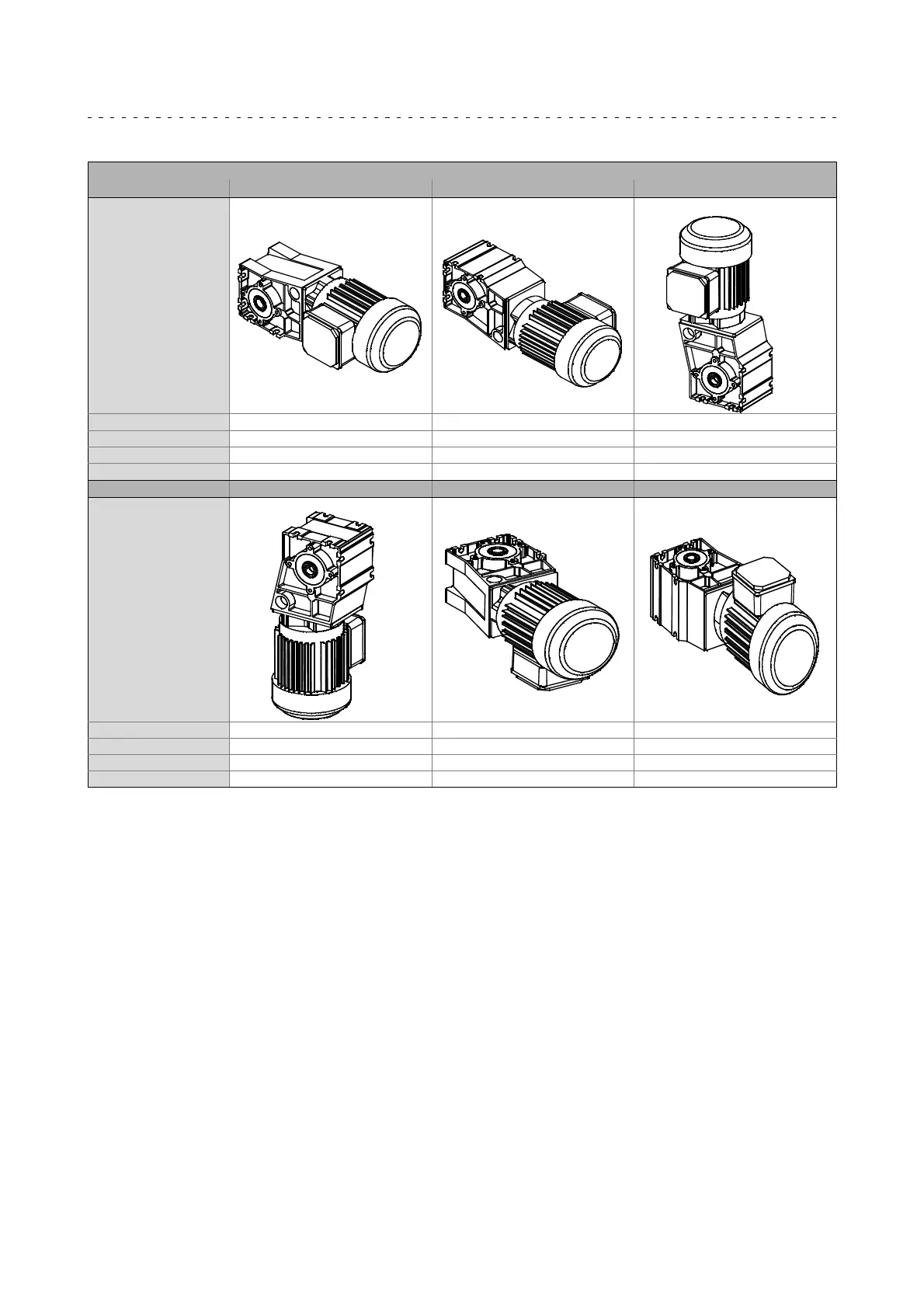

Mounting position A B C
GKR03 0.35 0.35 0.35 / 0.4 *
GKR04 0.4 0.5 0.7 / 0.8 *
GKR05 0.8 1.3 1.5 / 1.6 *
GKR06 1.5 2.3 3.0 / 3.2 *
Mounting position D E F
GKR03 0.35 0.35 0.35
GKR04 0.7 0.6 0.4
GKR05 1.4 1.5 1.0
GKR06 2.6 3.0 1.8
Tab. 13 Amount of lubricant in litres
*withversionVK at the output end
