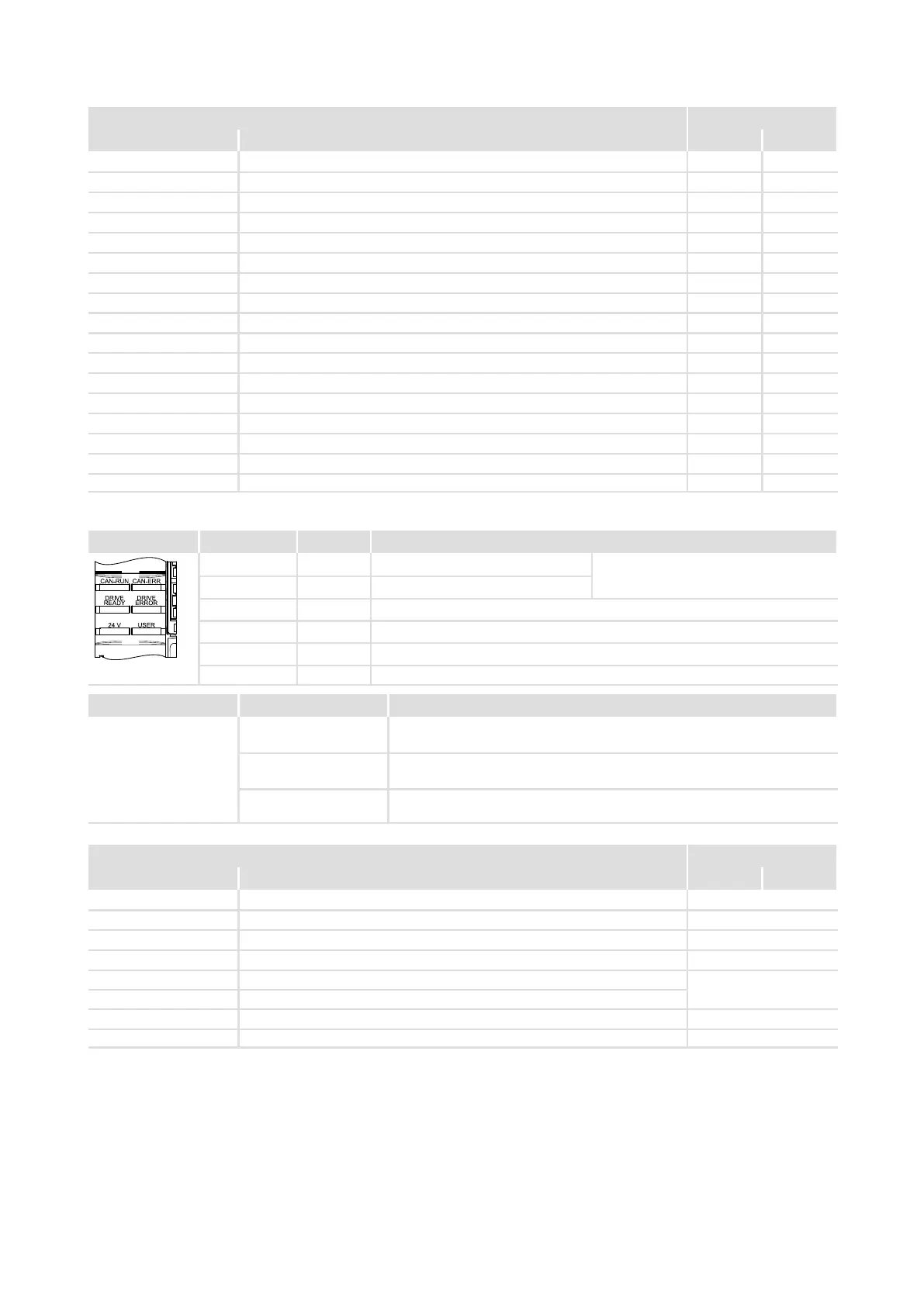

EDK94ASH24 ZH/EN 4.1
Overview
Standard device Design
Pos. Description HighLine StateLine
MXI1 Module receptacle for extension 1, e.g. communication þ þ
MXI2 Module receptacle for extension 2, e.g. communication þ o
MMI Module receptacle for memory modules þ þ
MSI Module receptacle for safety modules þ þ
X1 System bus (CAN), under the cover þ o
X2 24−V supply and state bus þ þ
X3 Analog inputs and analog outputs 2/2 1/0
X4 Digital outputs 4 1
X5 Digital inputs 8 4
X6 Diagnostics þ þ
X7 Resolver þ þ
X8 Encoder þ þ
Lower cap þ þ
Nameplate, retractable þ þ
Upper cap þ þ
EMC clamp 1 1
Warning sticker − place close to the device in a clearly visible manner! þ þ
The LED display enables fast indication of several operating states.
LED Labelling Colour Description
CAN−RUN green CAN bus o.k.
Inoperable when "StateLine" design is
used
CAN−ERR red CAN bus error
DRIVE READY green Standard device is ready for operation
DRIVE ERROR red Error in the standard device or due to the application
24 V green 24−V supply voltage o.k.
SSP94LED01
USER yellow Message parameterised by the application
Pos. Symbol Description
Long discharge time: All power terminals carry hazardous voltages for at
least 3 minutes after mains disconnection!
High discharge current: Fixed installation and PE connection to EN 61800−5−1
required!
Electrostatic sensitive devices: Before working on the device, personnel must
ensure that they are free of electrostatic charge!
Installation backplane Design
Pos. Description HighLine StateLine
X100 Mains / DC−bus voltage þ
X105 Motor / external brake resistor þ
X106 Motor temperature monitoring þ
X107 Control of motor holding brake Optional
X109 DC busbar +
Optional
(for DC−bus connection)
X110 DC busbar −
EMC wire clamp (for device sizes II + III), replaces 1x 1
EMC shield clamp 3 or 2
