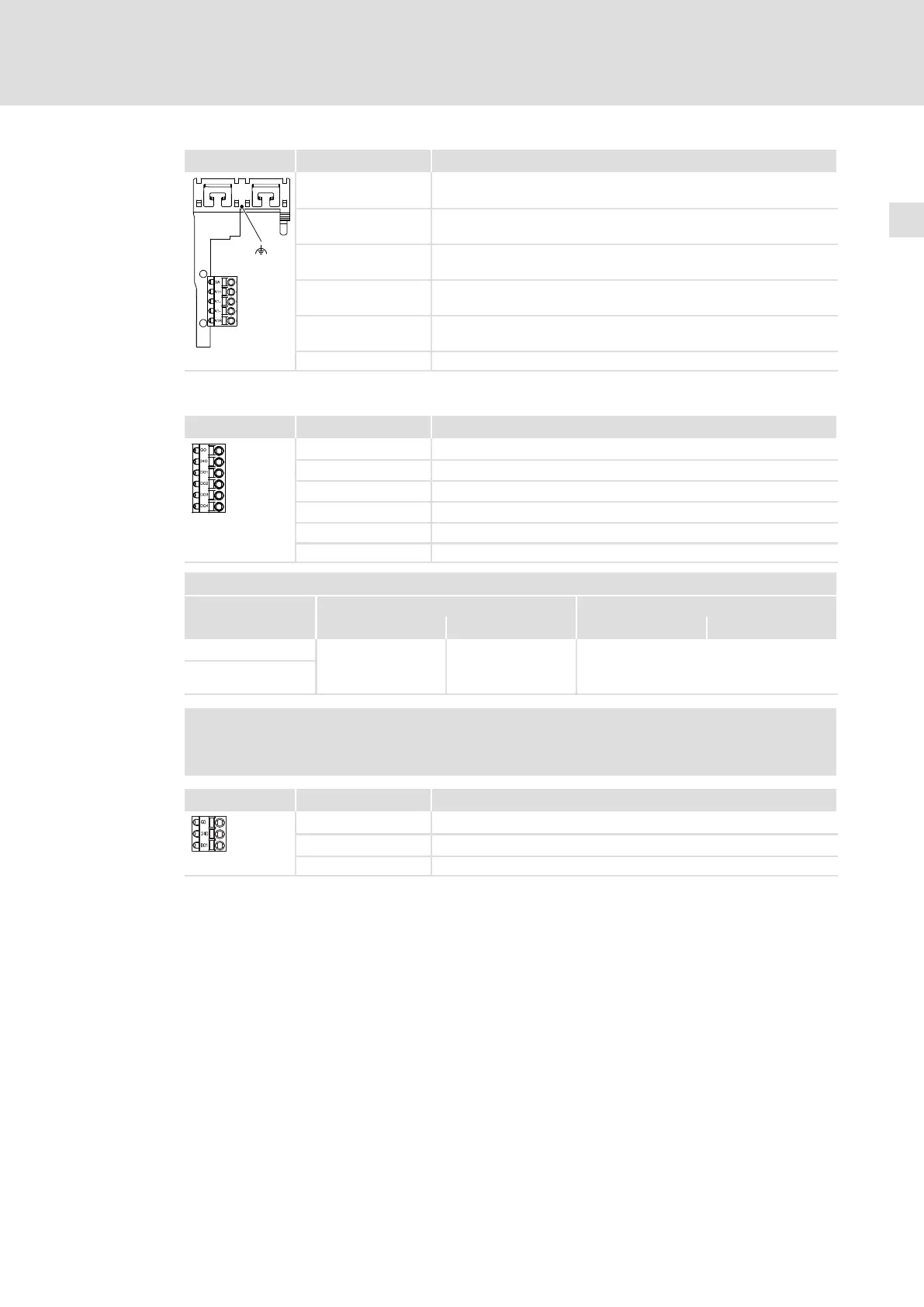

Wiring of the standard device 7

61
EDK94ASH24 ZH/EN 4.1
Terminal X3 Labelling Description
GA GND analog signals
A1+ Analog input 1 +
A1− Analog input 1 −
A1− Analog input 1 −
A1R Terminating resistor for ±20mA
SSP94SL0X3

Shield connection: Fix the shield with EMC wire clamp.
Digital outputs
Terminal X4 Labelling Description
GO GND digital out
24O 24−V digital out
DO1 Digital output 1
DO2 Digital output 2
DO3 Digital output 3
9400SSP000X4
DO4 Digital output 4
Terminal data
Conductor cross−section Tightening torque
[mm
2
] [AWG] [Nm] [lb−in]
Flexible
0.2 ... 2.5
24 ... 12 Spring terminal
With wire end
ferrule
 Note!
The "StateLine" design provides a modified version of this connection.
Terminal X4 Labelling Description
GO GND digital out
24O 24−V digital out
9400SSPxxx
DO1 Digital output 1
