Mechanical installation
Mounting cutout
5

25
BA_MP9000DVI DE 4.0

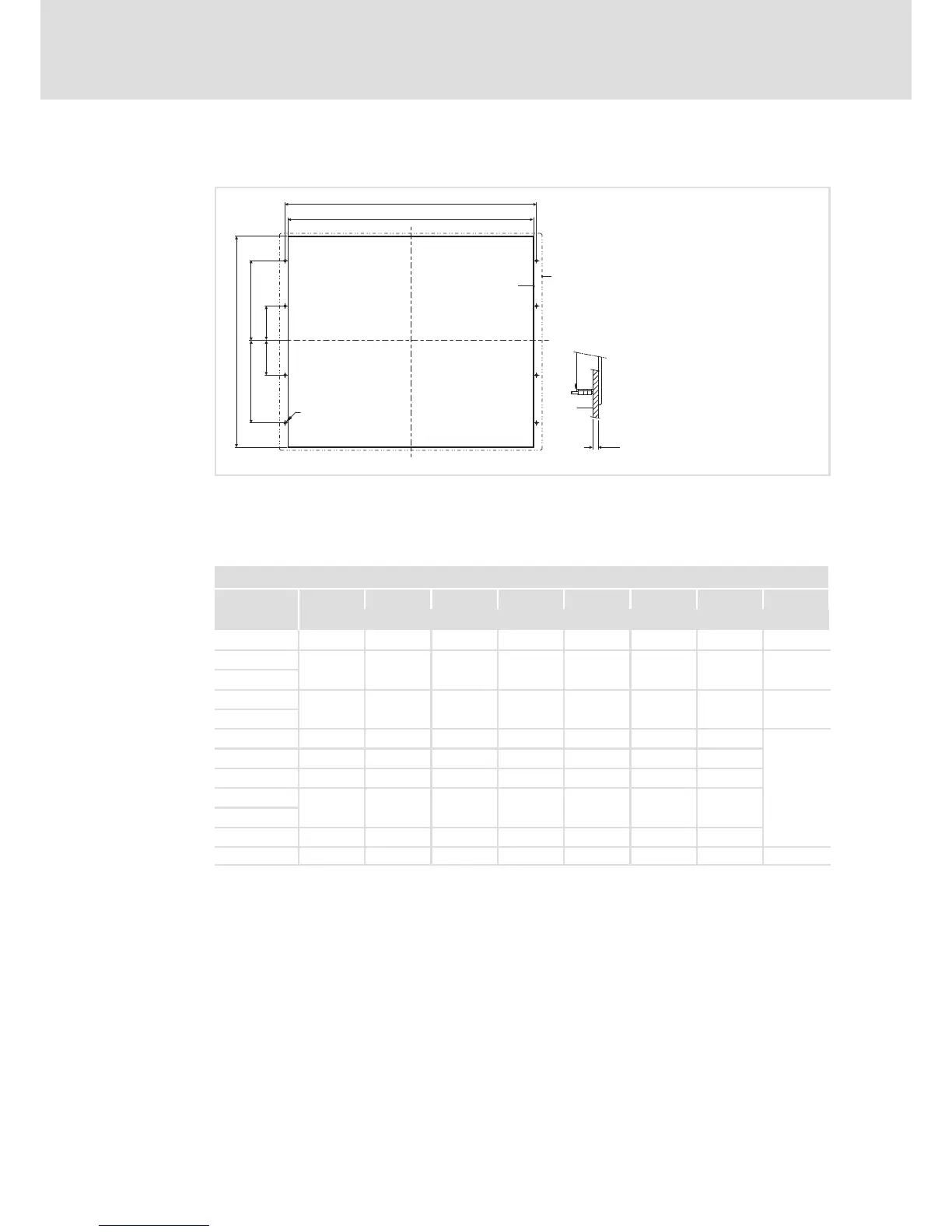

5.2 Mounting cutout
0
1
a1
a2
£ 5
2
b1
b2
b3
b5
b4
D
ELx7xx−004
 Mounting cutout
 Outline of front panel
 Control board
All dimensions in millimetres.
Dimensions
a1 a2 b1 b2 b3 b4 b5 D
[mm]
MP 800 DVI 246 − 188 − − − − −
MP 1000 DVI
305.0 − 228.0 − − − − −
MP 1000s DVI
MP 1050 DVI
343.0 − 228.0 − − − − −
MP 1050s DVI
MP 2000 DVI
340.0 351.0 288.0 122.0 122.0 0.0 −
6 x Æ5.5
MP 2050 DVI
375.0 386.0 288.0 122.0 122.0 0.0 −
MP 5000 DVI
400.0 411.0 313.0 134.5 134.5 0.0 −
MP 5020 DVI
452.0 462.4 299.0 104.9 104.6 15.7 −
MP 5050 DVI
MP 5070 DVI
452.0 462.4 388.2 149.3 149.3 15.9 −
MP 9000 DVI 438.0 451.0 386.0 172.0 172.0 60.0 60.0 8 x Æ4.5
