2
Features
Bluetooth 2.1 HiFi audio streaming
SD/MMC/USB media playback
High performance FM radio tuner with 30 station presets
Stereo RCA and 3.5 mm analog audio input
Remote volume control
Infrared remote control with numeric keypad
• 4-channelampliedoutput
Bright illuminated display
12V DC input voltage

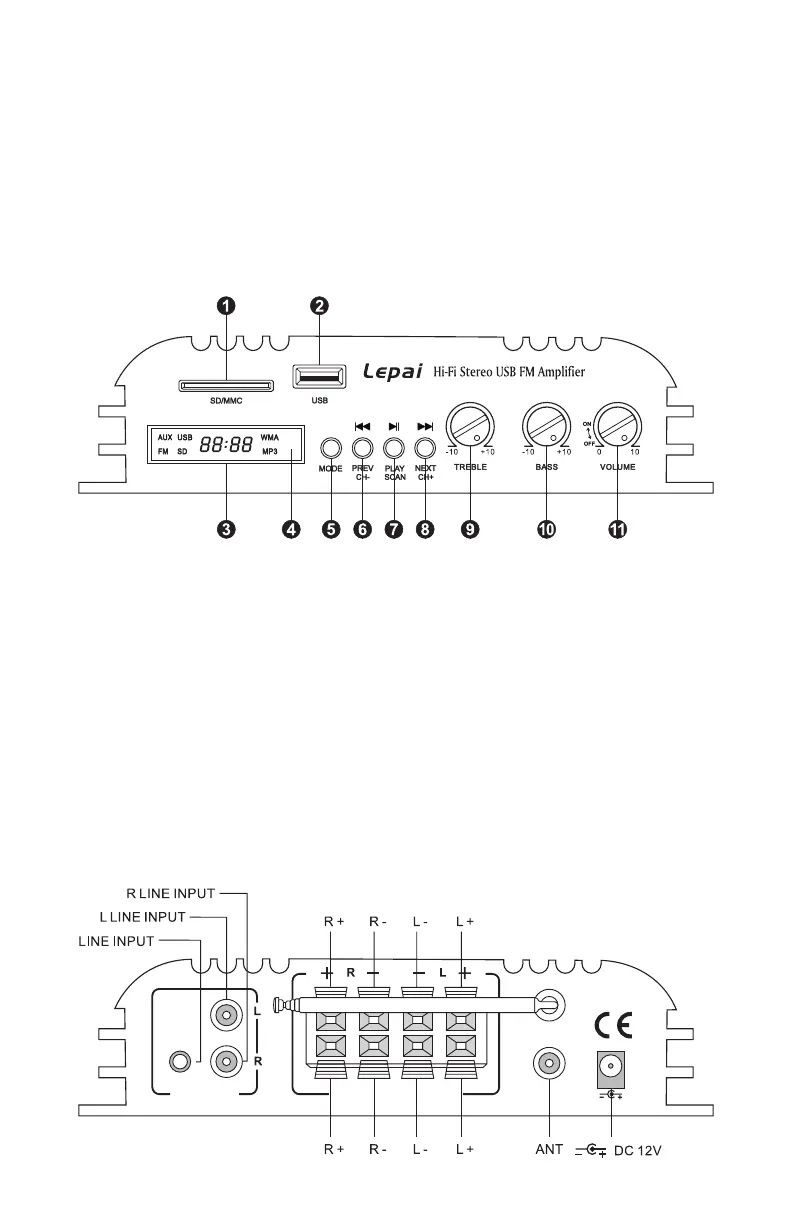

Front Panel:
1. SD/MMC Card Reader
2. USB Reader
3. Display Screen
4. IR Receiver
5. Mode Selection
6. Previous/CH-*
7. Play/Pause/Scan
8. Next/CH+*
9. Treble Control
10. Bass Control
11. Power/Volume Control
* "Prev/CH-" and "Next/CH+" buttons also control volume down and up when
pressed and held.
Back Panel:
DC12V-3A
AUDIO INPUT
FM ANT
BT ANT
SPEAKER IMPEDANCE 4~8
MADE IN CHINA
