PREPARATION
Before beginning the installation of this product, make sure all parts are present. Compare the received parts with the
packing list. If any part is missing or damaged, do not attempt to install the product.
Estimated Assembly Time: 30-60 minutes
PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN!
3
ON
OFF
ON
OFF
OFF

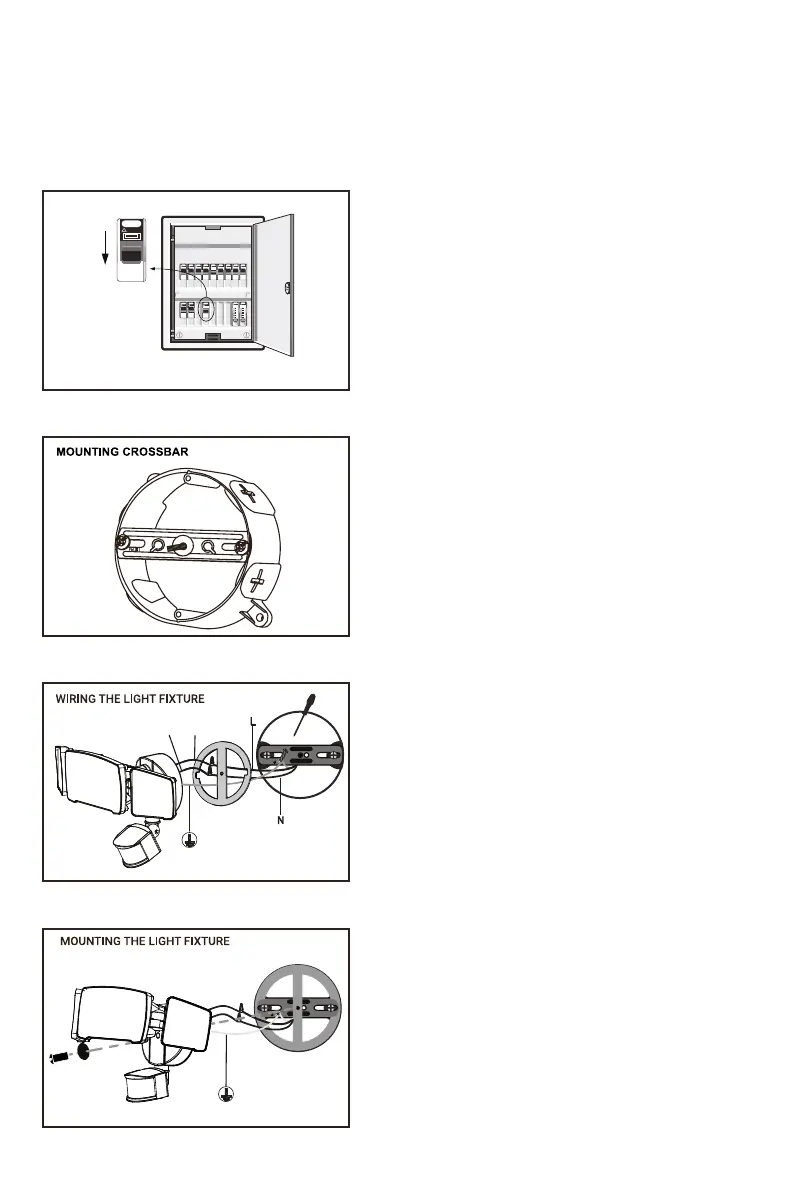

1. Turn the power OFF to work area at main circuit breaker or
fuse box.
CAUTION: Do not rely on wall switch to turn the power off.
2. Attach crossbar (E) to junction box (not included) with two long
machine screws (B). Install the screw (B1) on the center hole,
make sure the screw thread is pointing away from the surface.
3. Remove the protective paper barrier from the adhesive face of
the EVA gasket (F) and adhere the gasket to the crossbar and
outer edge of the round surface junction box.
Ensure that the short machine screw on the crossbar is
threaded through the hole of EVA gasket.
Wire the light and junction box through the EVA gasket:
1). Connect the white wire from the light to the white wire on
the junction box by twisting Wire Nut (D).
2). Connect the black wire from the light to the black wire from
the junction box by twisting Wire Nut (D).
3). Connect the green/yellow wire from light to the ground wire
from junction box by using ground screw (A, painted green)
onto the crossbar.
4. Make sure all wire connections are secure.
Carefully place wires into junction box.
Position wall plate over the crossbar (E).
Mount the light onto the crossbar and secure with the NUTS
(C)
DO NOT over tighten.
For wet locations, make sure to fill any gaps of the EVA gasket
and mounting surface with a sealing compound or silicon glue.
Once all connections are complete and the silicone is dry, turn
on the power to the lights from the main junction box or circuit
breaker panel.
