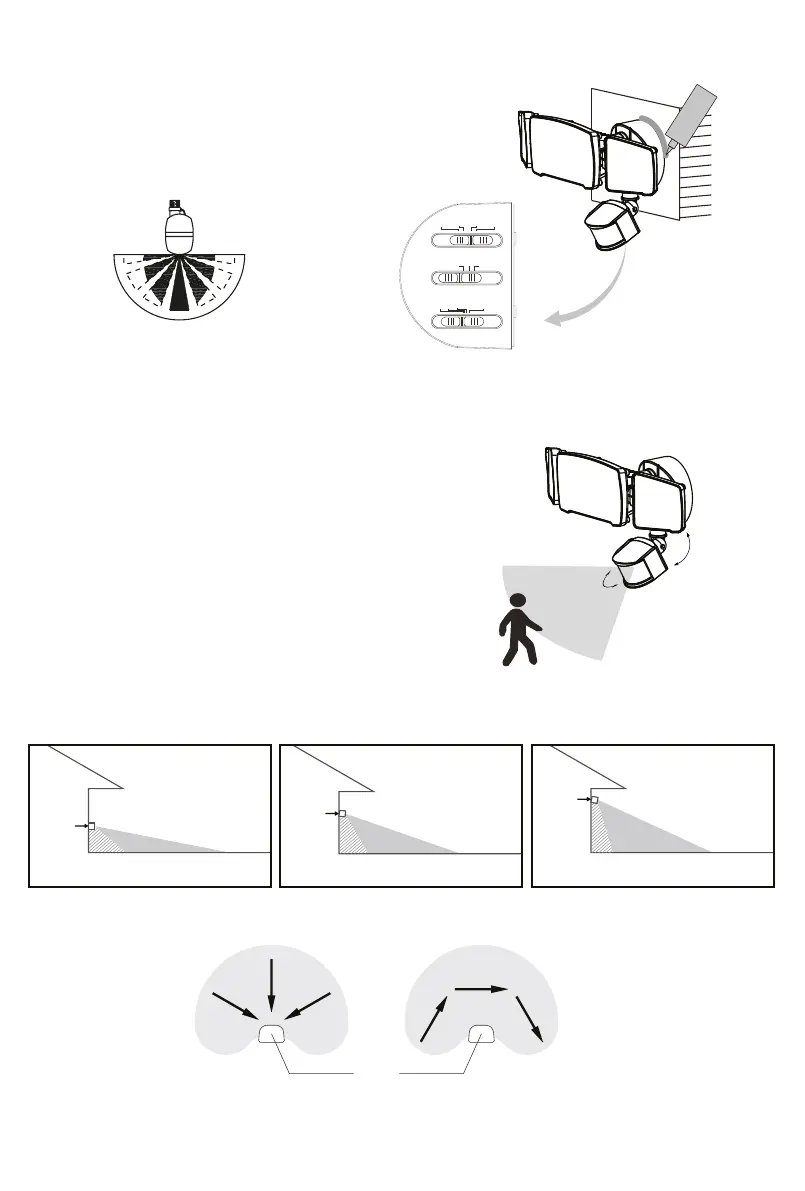

RECOMMENDED INSTALL HEIGHT: 6.5-13 feet above the ground.
At this recommended height, the fixture will provide a detection distance of up to 49 feet, at 77 degrees Fahrenheit.
The sensor will be more sensitive to motion across rather than motion towards it directly.
4
Motion Sensor Horizontal
5ft.
Detection Coverage
Height
Sensor
Least Sensitive Most Sensitive
MotionMotion
IMPORTANT:
After mounting the motion-activated light, apply silicone sealant
completely around the perimeter of the cover plate where the back
of the cover plate meets the mounting surface. Silicone sealant
prevents water from seeping into the junction box.
CAUTION:
Make sure the motion detector head is not UPSIDE DOWN! Rotate
the motion sensor so that the controls face the detection areas.
ADJUSTING THE SENSOR HEAD:
Aim the sensor head toward the desired detection area and make
sure it is positioned with controls facing the ground.
You can adjust the sensor head up and down, left to right for the
desired coverage area.
7ft.
Motion Sensor Downward 5°
Detection Coverage
Height
9ft.
Motion Sensor Downward 10°
Detection Coverage
Height
Installation is now complete. Turn on power at circuit breaker and flip wall switch to ON position. The wall switch
must remain in the ON position for the motion detector to work properly at all times (including daytime).
SENSOR ANGLES 180°
TEST
AUTO 3H 6H
TIME
L H
SENS
M
1MIN
5MIN 10MIN
DUSK TO DAWN
