Lerdge iX - Assemble Y-axis Slider

www.lerdge.com
11

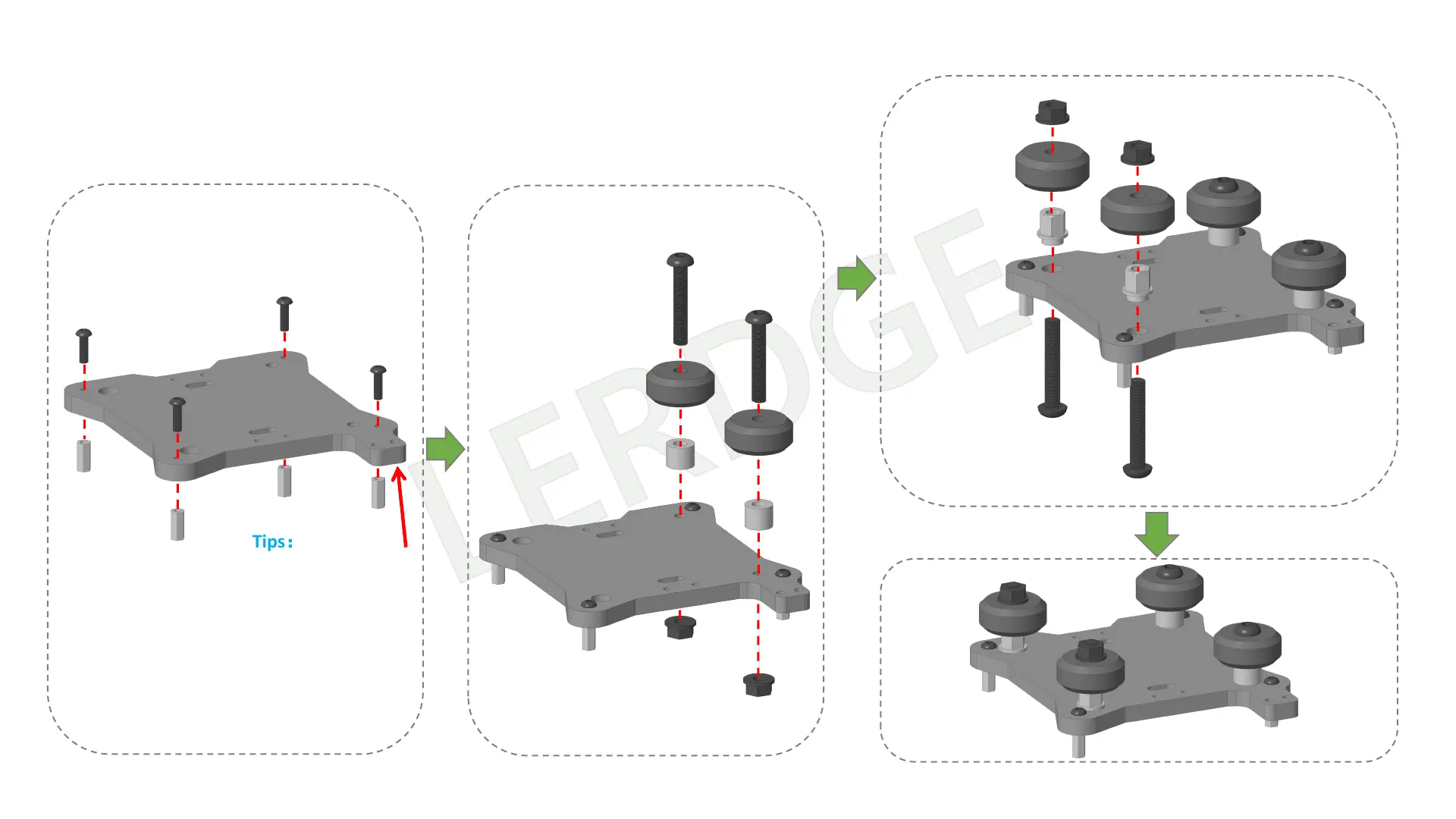

2.1-Assemble the Y-axis slider
Button head
mechanical screw
2 x M5*30
Button head
mechanical screw
2 x M5*30
2 x M5 Self-locking nuts
2 x Eccentric nut
Spacer column
2 x 5*8*8
2 x Large pulley
2 x Large pulley
Note：
Please pay special attention to the direction of the plate when assembling the pulleys on plate.
Please make sure the M5 screws are assembled in the correct direction. Reversing the direction
of the screws will cause structural issue for next assembly of the slider.
Button head
mechanical screw
4 x M3*8
Tips：
You can refer to this
port of the plate to
distinguish the
direction.
Stainless steel stud
4 x M3*10
2 x M5 Self-locking nuts
