www.lerdge.com
12

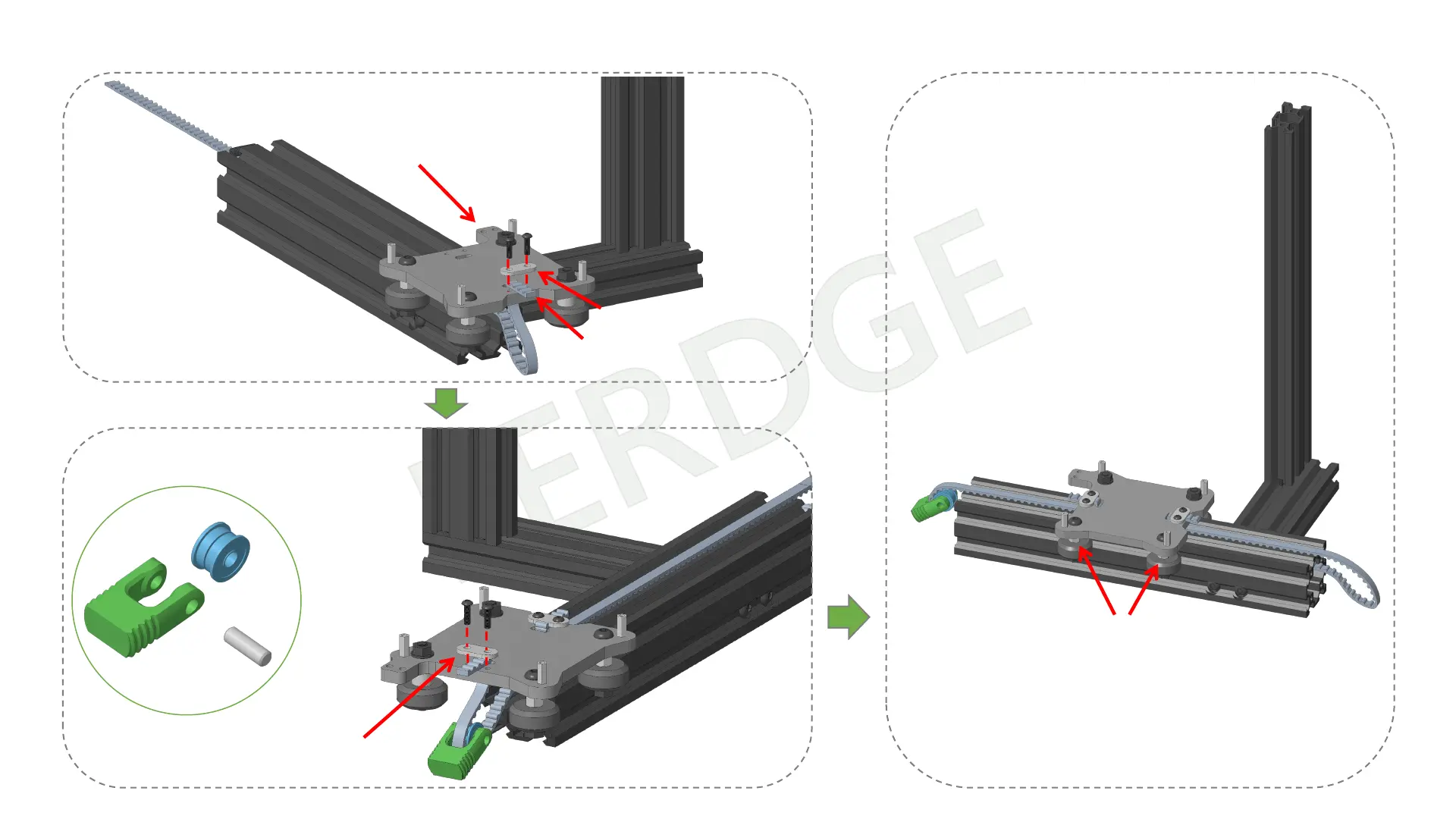

2.2- Assemble the Y-axis belt
Tips：
The belt teeth face up
Tips：
The engagement of the slider and the profile
can be adjusted by rotating the eccentric nut
with a wrench. Please take the slider can move
smoothly but will not sway from side to side.
Button head
mechanical screw
2 x M3*8
Button head
mechanical screw
2 x M3*8
Flange bearing
2 x F695ZZ
1 x Pin 5*18
Nylon fixing block
Tips：
Pay attention to the direction of the
plate. You can refer to this port of the
plate to distinguish the direction.
Nylon fixing block
To Next Page
