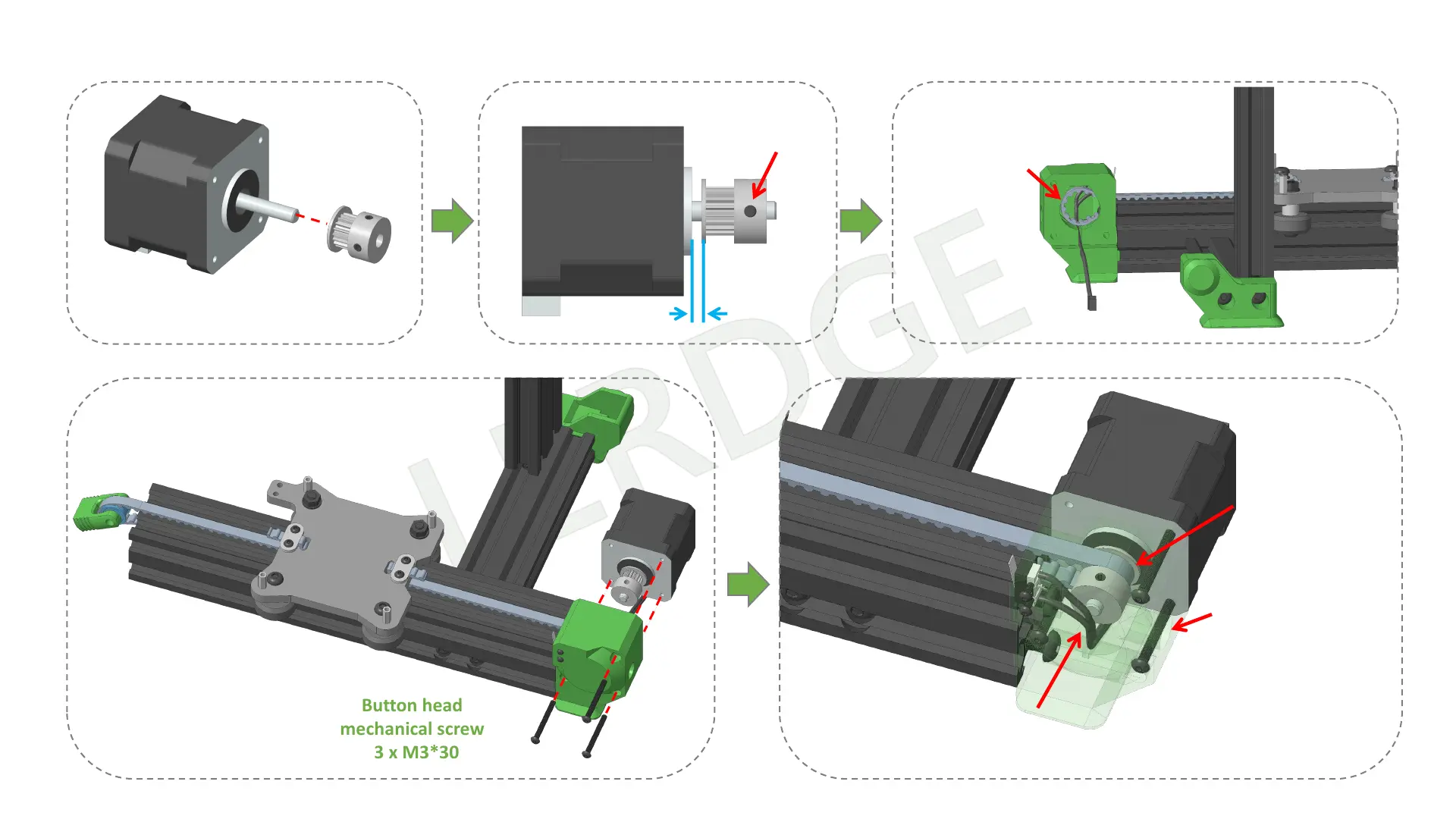

2.5- Assemble the Y-axis motor
2.5MM
Make sure that the
belt is correctly
assembled on the
synchronous wheel
of the motor.
Tips:
The belt is formed into an arc to
facilitate the next installation of motor.
Note：
Pay attention to the assembly
direction of the synchronous wheel
Button head
mechanical screw
3 x M3*30
Tips：
Observe from the
hole on the side.
Tighten all
the screws.
Note：
Ensure that the cable of the Y-axis endstop will
not rub against the synchronous wheel or belt.
To Next Page
