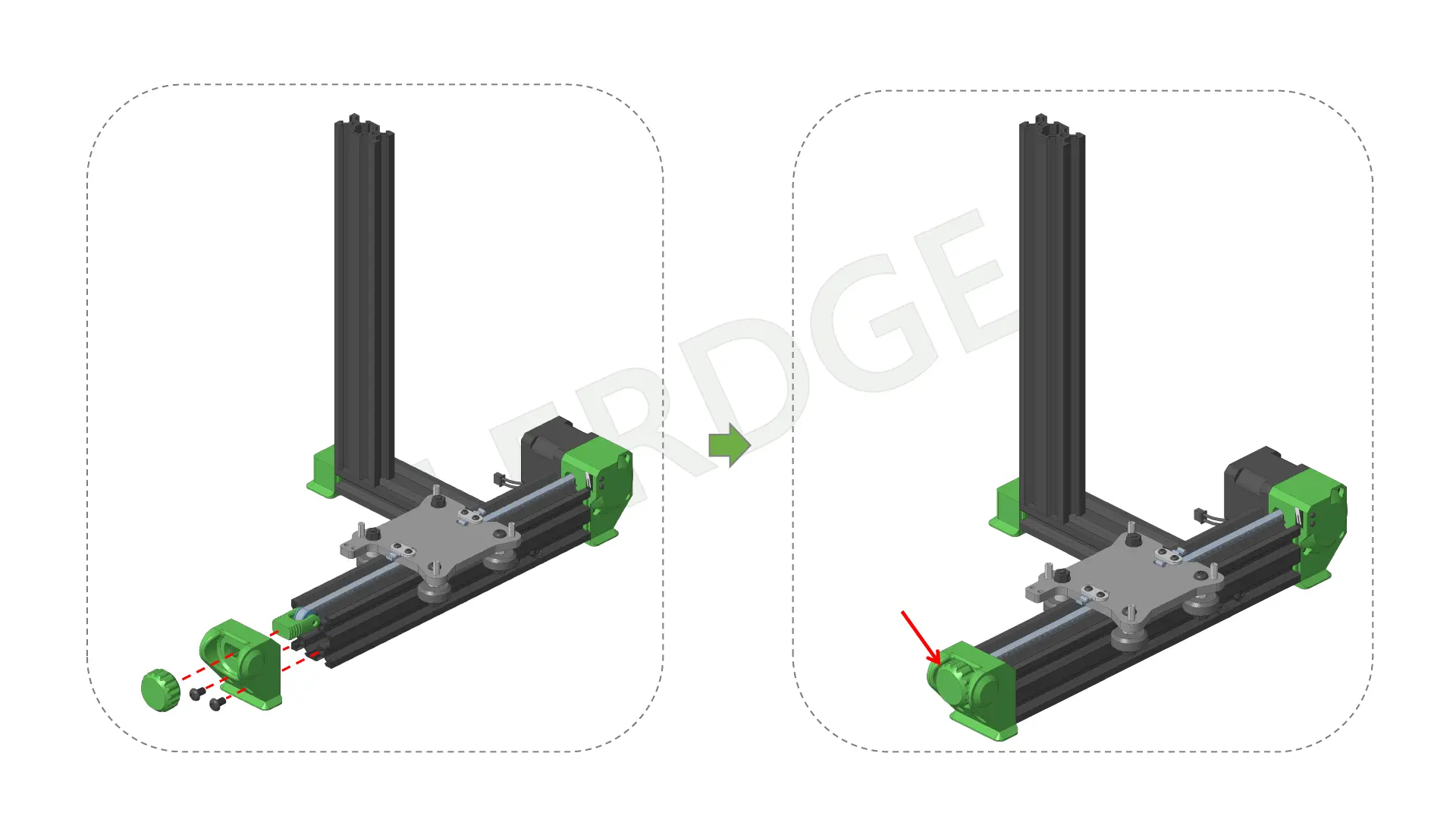

2.6- Assemble Y-axis adjustable belt knob
Button head
mechanical screw
2 x M5*10
The knob can adjust
the belt tightness:
Tighten clockwise;
Loosen counterclockwise.
