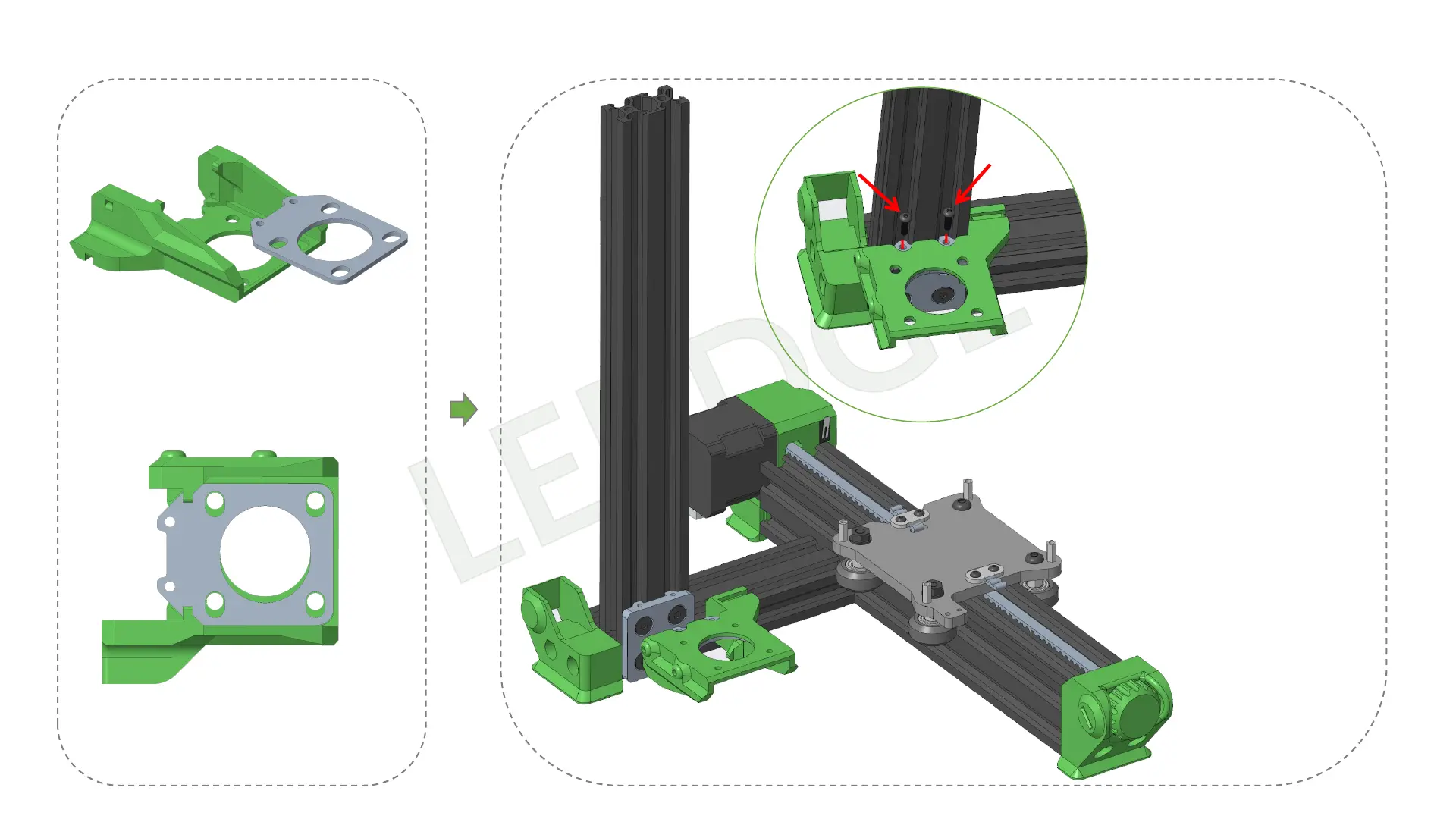

2.7- Assemble Z-axis motor seat
Button head
mechanical screw
2 x M3*5
Note：
Make sure that the screws are
tightened vertically. Since the
screw is close to the groove of the
aluminum profile, please be
careful not to skew the screw
during the tightening process.
Otherwise, it may cause the Z-axis
motor seat to can’t be firmly fixed.
